6.1 3D Modeling

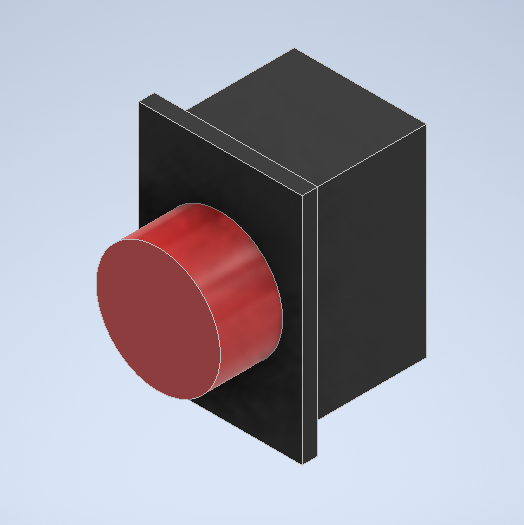

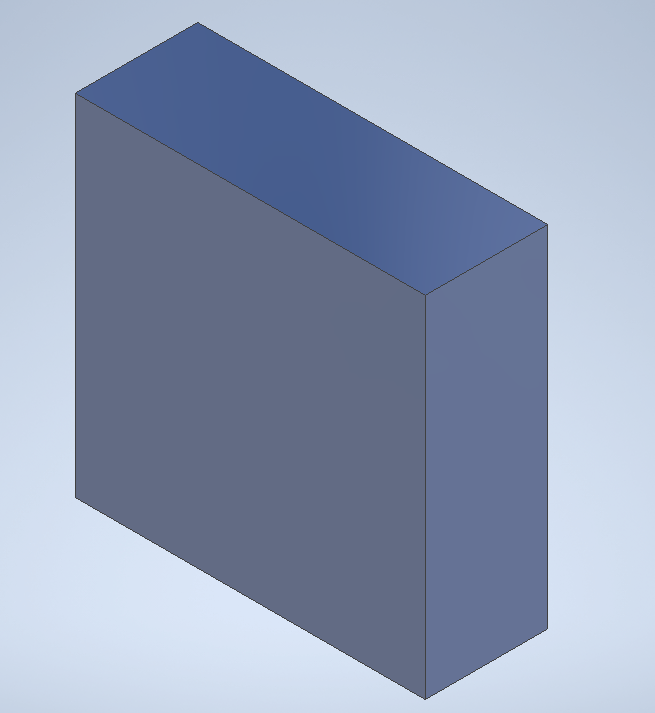

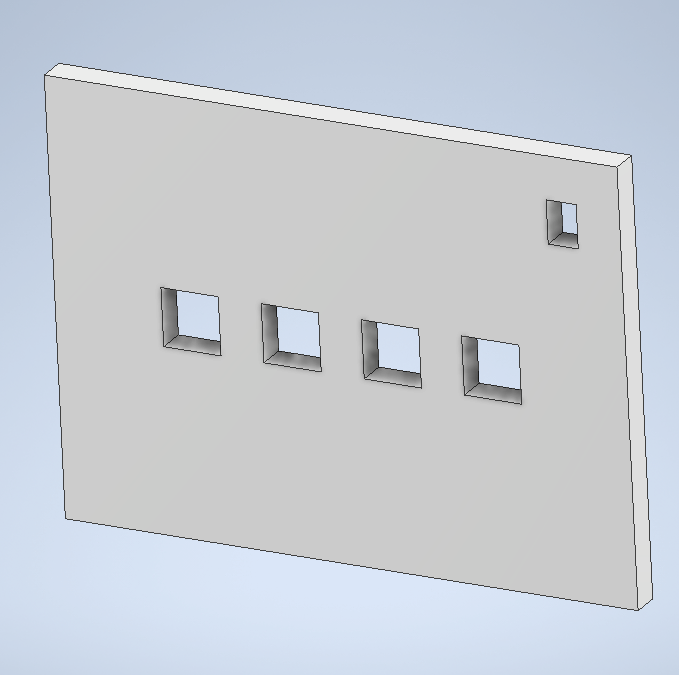

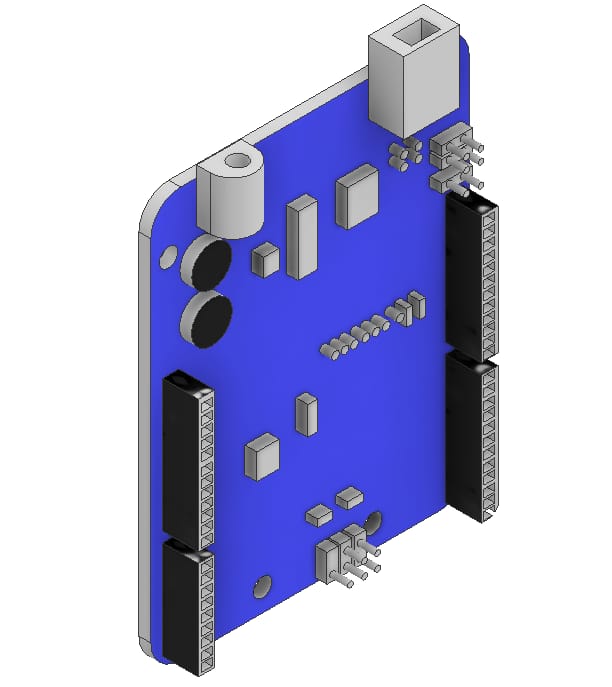

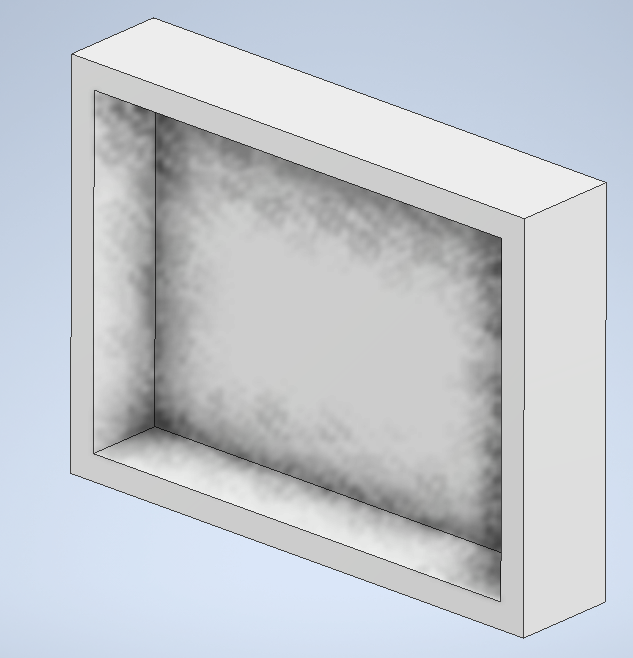

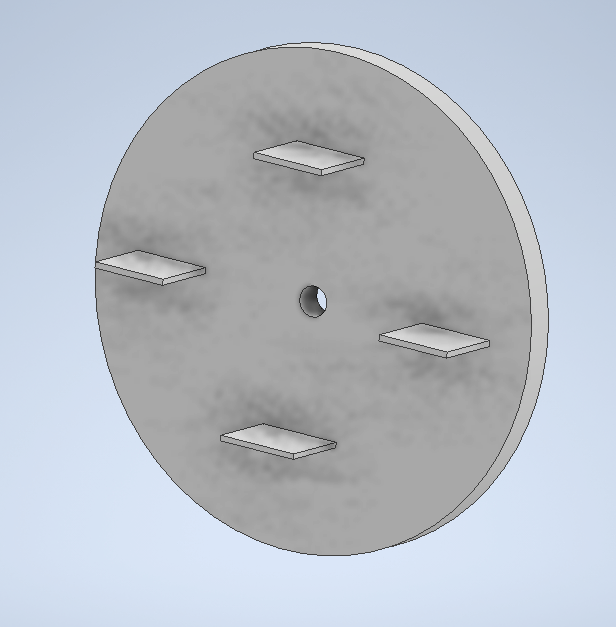

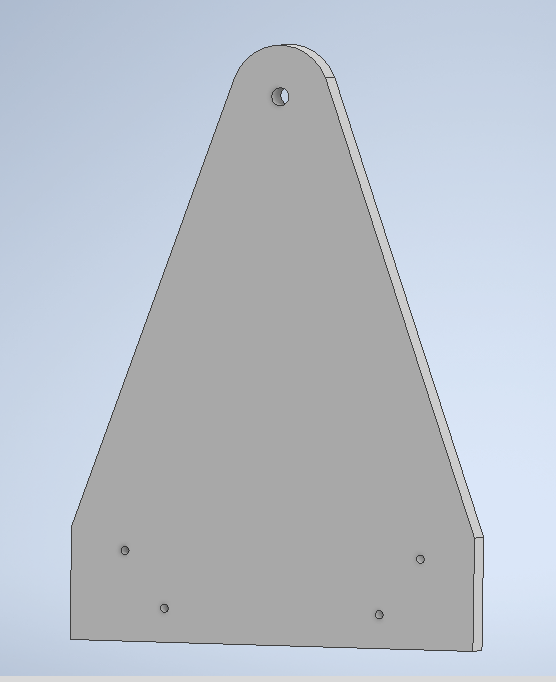

Parts	Parts

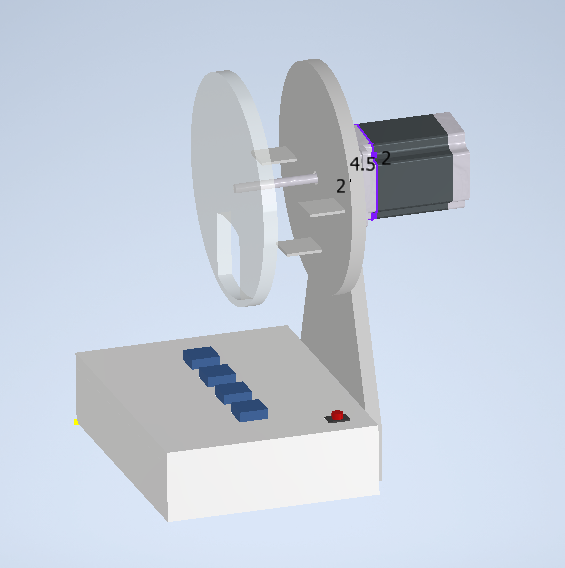

6.2 Assembly

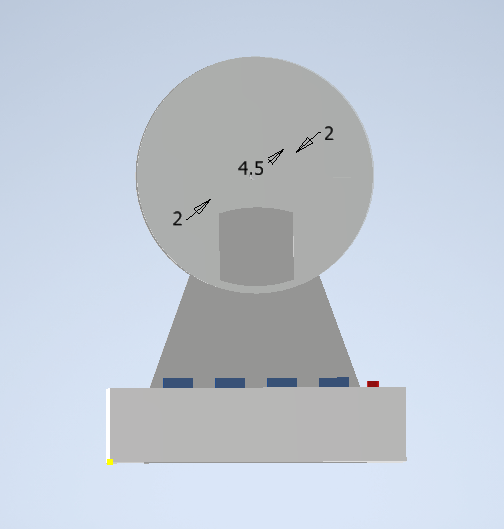

Front View	Side View

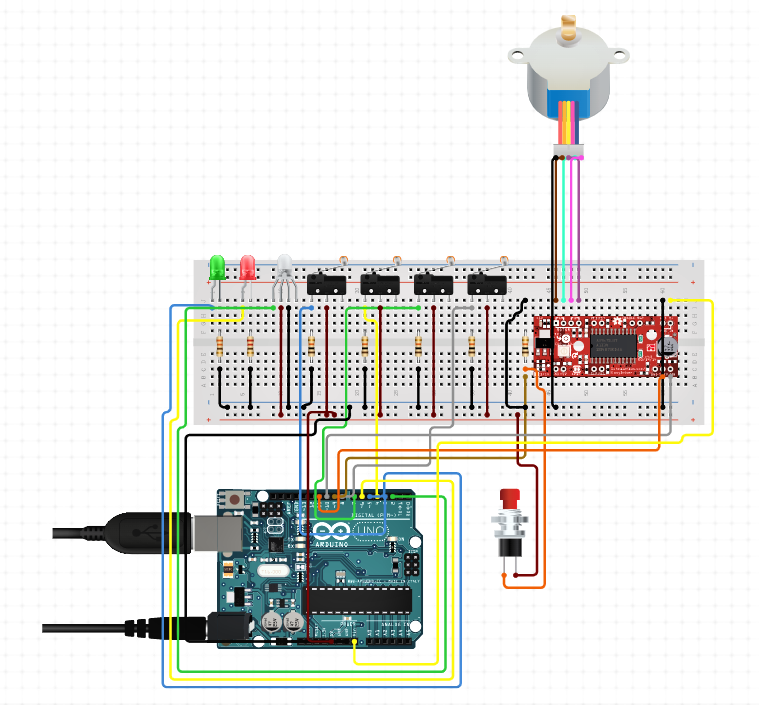

6.3 Circuit Diagram

6.4 Algorithm

STEP1:Start.

STEP2:Machine should ON.

STEP3:Ask for user input.

STEP4:Select user learning process.

STEP5:It rotates for some revolution.

STEP6:User want to select shape.

STEP7:It verifies the shape.

STEP8:If input is true, turn on green led.

STEP9:If input is false, turn on red led.

STEP10:Stop.

6.5 Bill of Materials

Sl.No	Part name	Material wit which the part is made up of	Discription about part	Quantity required
1.	Arduino Mega	-	Arduino Mega 2560	1

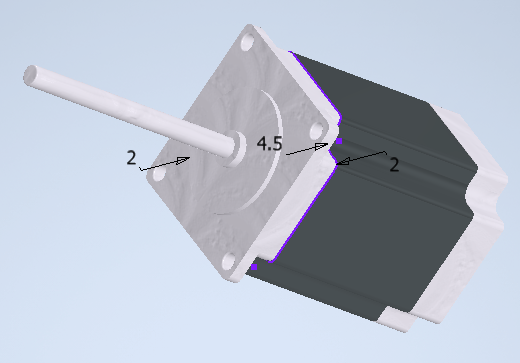

2.	Stepper Motor	-	12V	1

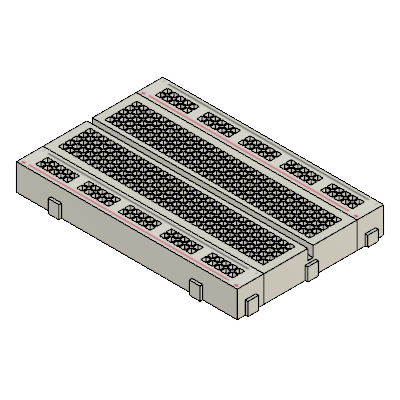

3.	Bread board	-	-	1
4.	On/Off button	-	-	1
5.	Switch button	-	-	4

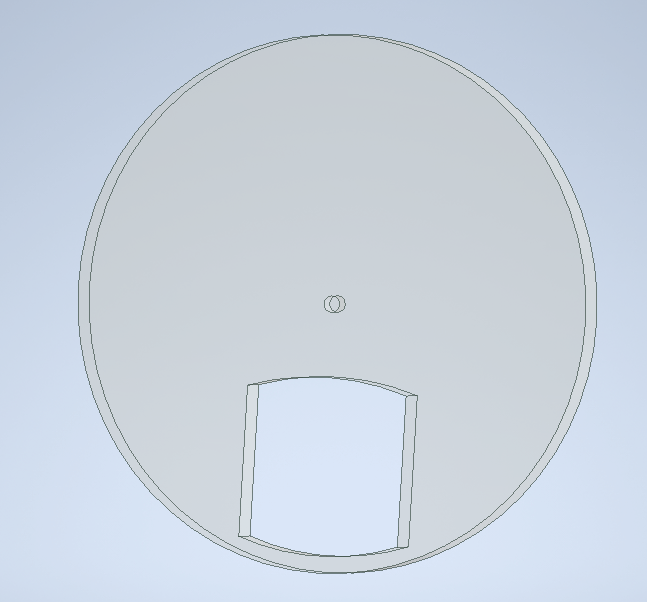

6.	Upper part	Foam sheet	8mm thickness,75mm diameter	1
7.	Upper part	Foam sheet	3mm thickness,75mm diameter	1
8.	Base	Foam sheet	10mm thickness,200mm*150mm	2
9.	Base	Foam sheet	10mm thickness,200mm*40mm	2
10.	Base	Foam sheet	10mm thickness,150mm*40mm	2
11.	Shaft	Aluminium Rod	8mm Diameter,5mm lenth	2
12.	Hook	Stainless steel	1mm Diameter	4
13.	L-Clamp	Stainless steel	1/2 inch	8
14.	Screws & Nut	Stainless steel	4mm Diameter,15mm Length	16
15.	Screws & Nut	Stainless steel	4mm Diameter,25mm Length	6
16.	Connecting Wires	Copper	22 Gauge stranded copper wire	1(1meter)
