4.CONCEPT GENERATION
4.1 ESTABLISHING FUNCTIONS
Sl.no | Functions |
---|---|
1. | Fold the clothes. |
2. | Sense the cloth. |
3. | Store the cloth. |
4. | Dispenses the cloth. |
4.2 FUNCTION TREE
4.3 FUNSTIONAL CLUSTERING
4.4 SUB FUNCTIONS IDENTIFIED
- Sensing unit
- Folding unit
- Dispensing unit
- Storage unit
4.5 ESTIMATION OF MORPHOLOGICAL CHART
Subfunctions | Mean 1 | Mean 2 | Mean 3 | Mean 4 |
---|---|---|---|---|

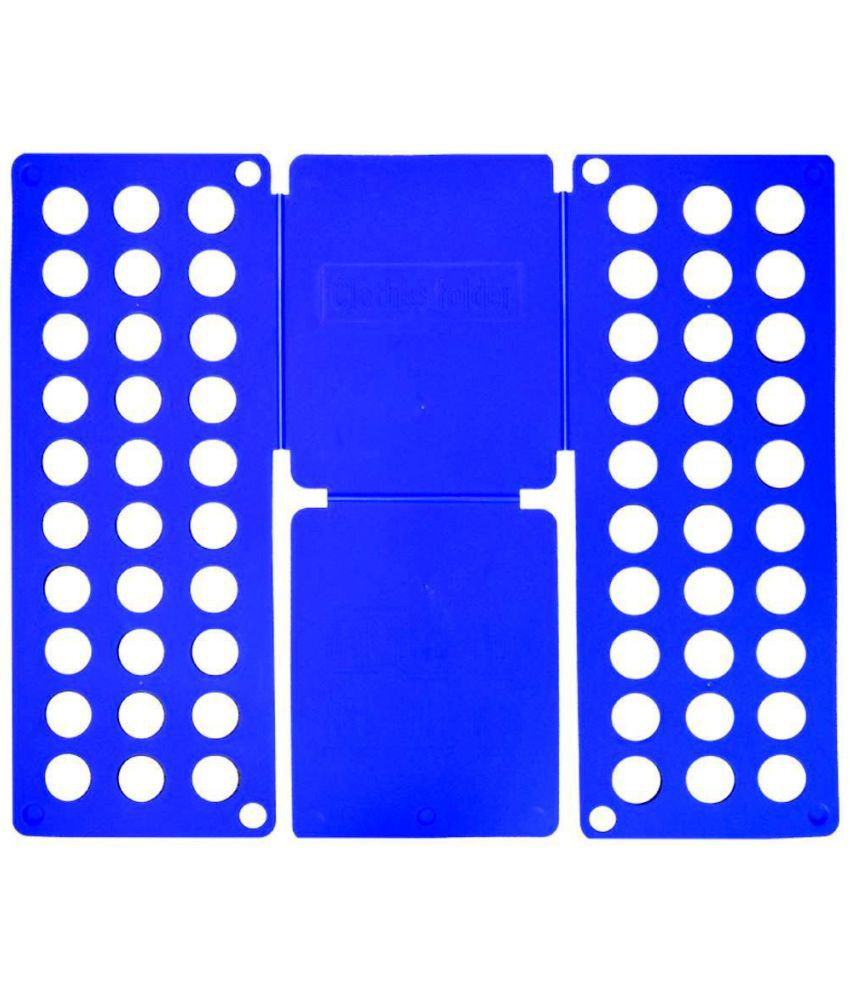

Folding the clothes (flip boards) | Flappers | |||
Rotating the shaft | ||||
Allow mechanical switch on/off | ||||
Rotate the boards | ||||
Moving mechanisms | Belt mechanism | |||

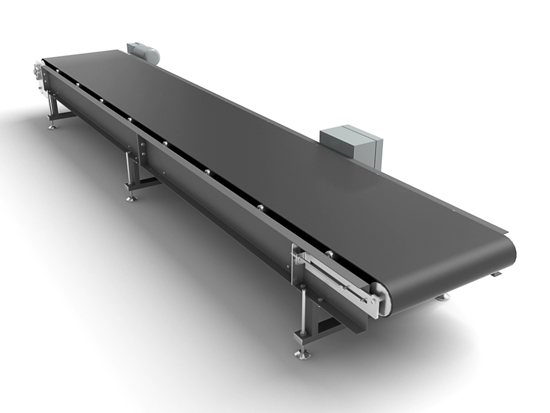

Dispensing the cloth | conveyer | Flippers | ||
Storage | ||||
Indicators | LED Light indicators | LCD Screen | Speaker | Buzzer |
4.5 GENERATED CONCEPTS:
DESIGN 1:
DESIGN 2:
DESIGN 3:
DESIGN 4:
