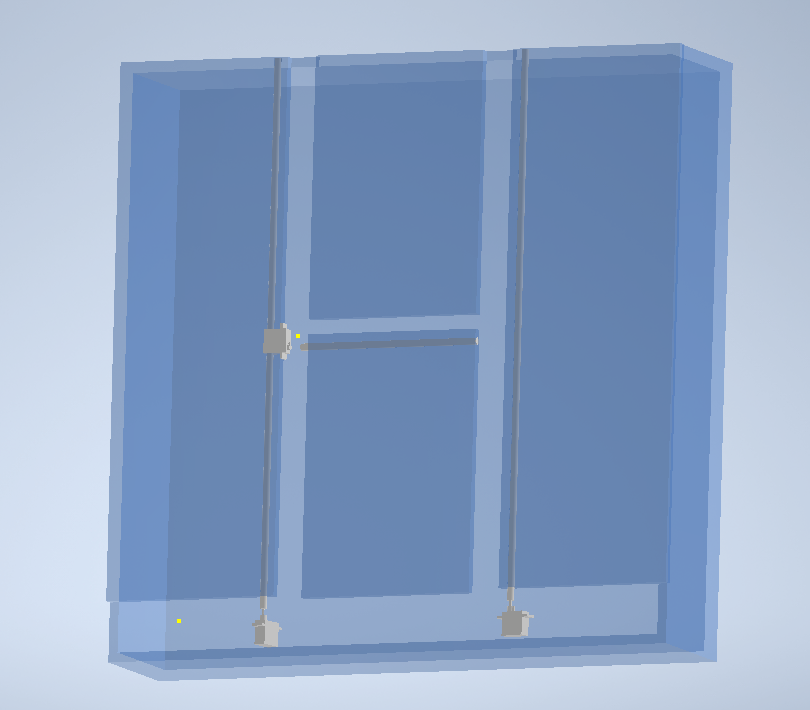

Mechanism
Circuit diagram
Flow chart
Bill of materials
Sl no. |
Part name |
Material with which the part is made up of |
Description about part |
Quantity required |
1 |
Base |
Foam sheet |
60cm * 60cm * 8mm |
2 |
2 |
Sides |
Foam sheet |
60cm * 10cm * 8mm |
4 |
3 |
Flips |
Foam sheet |
60cm * 15cm * 8mm |
2 |
4 |
Flips |
Foam sheet |
30cm * 25cm * 8mm |
1 |
5 |
Flips |
Foam sheet |
25cm * 25cm * 8mm |
1 |
6 |
Rods |
Nylon |
10cm * 6mm |
4 |
7 |
Hinges |
|
3cm * 3.8cm * 3mm |
8 |
8 |

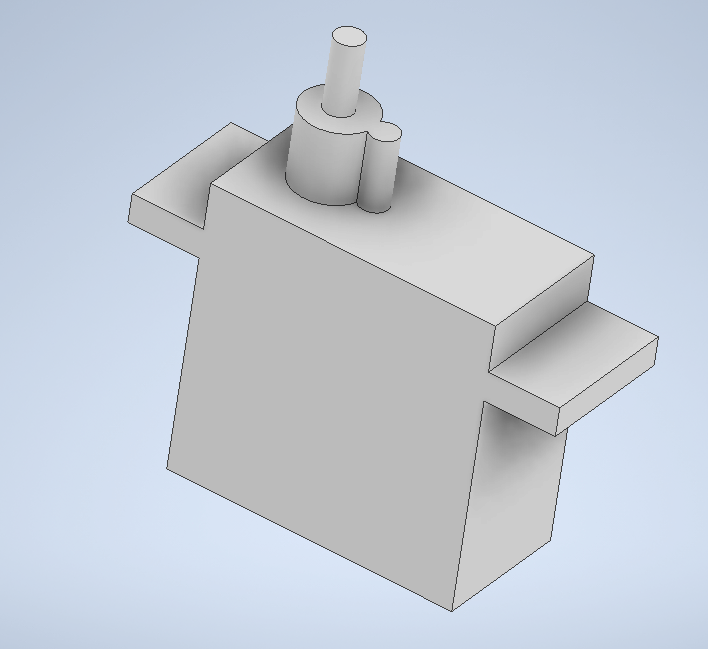

Servo motor |
|
Tower Pro MG90S |
4 |
9 |
Screws |
|
|
32 |
