6.VIRTUAL IMPLEMENTATION - B-Division-2022-2023-Odd/Repo-01 GitHub Wiki
6.1 3D MODELING
Housing Unit

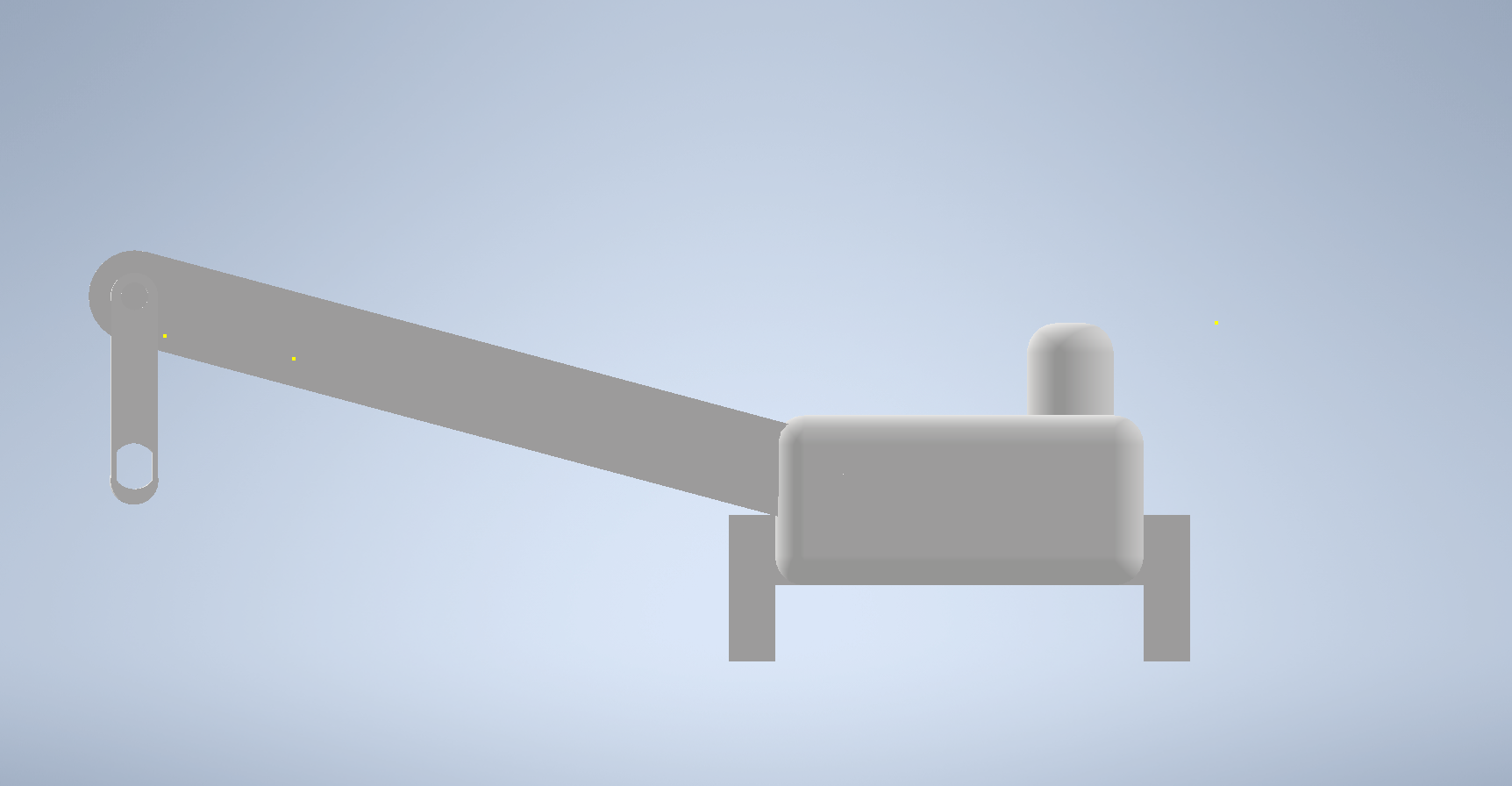

Mechanism

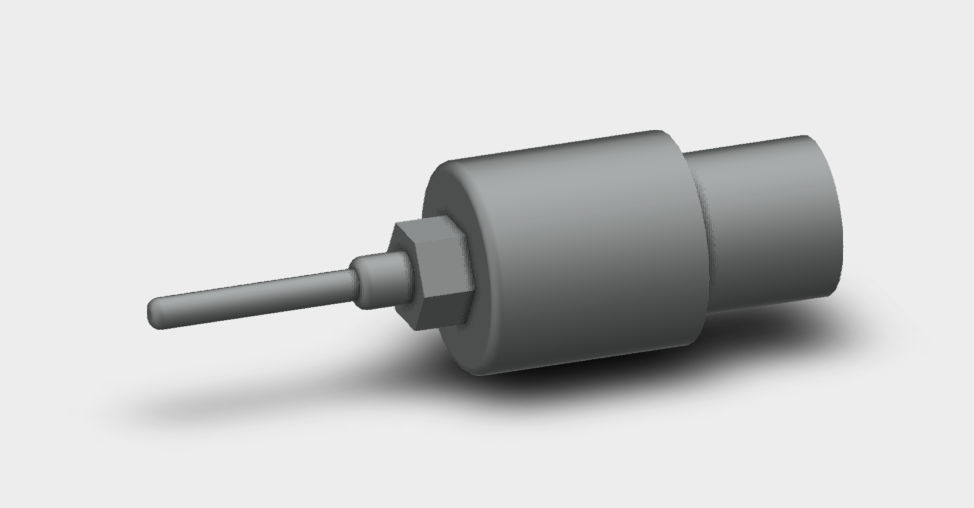

Motion Unit

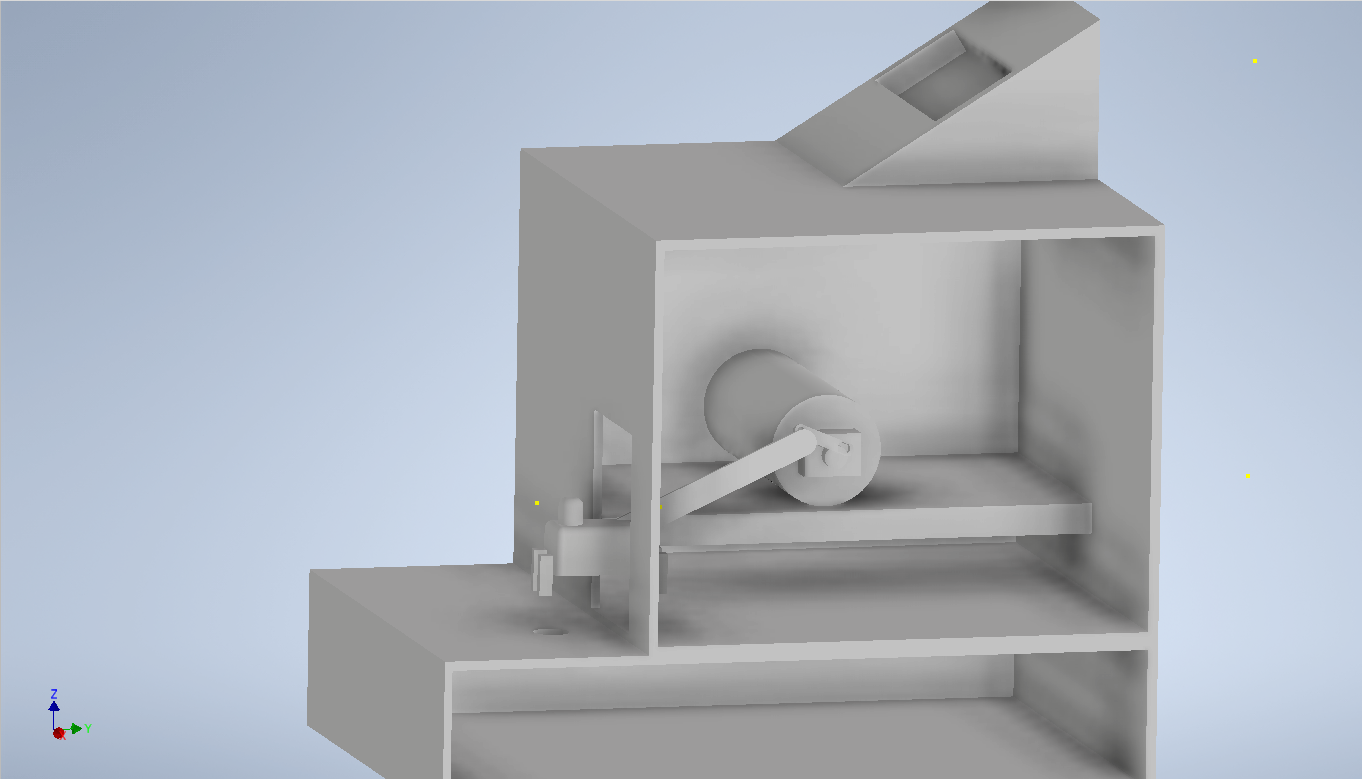

Assembly

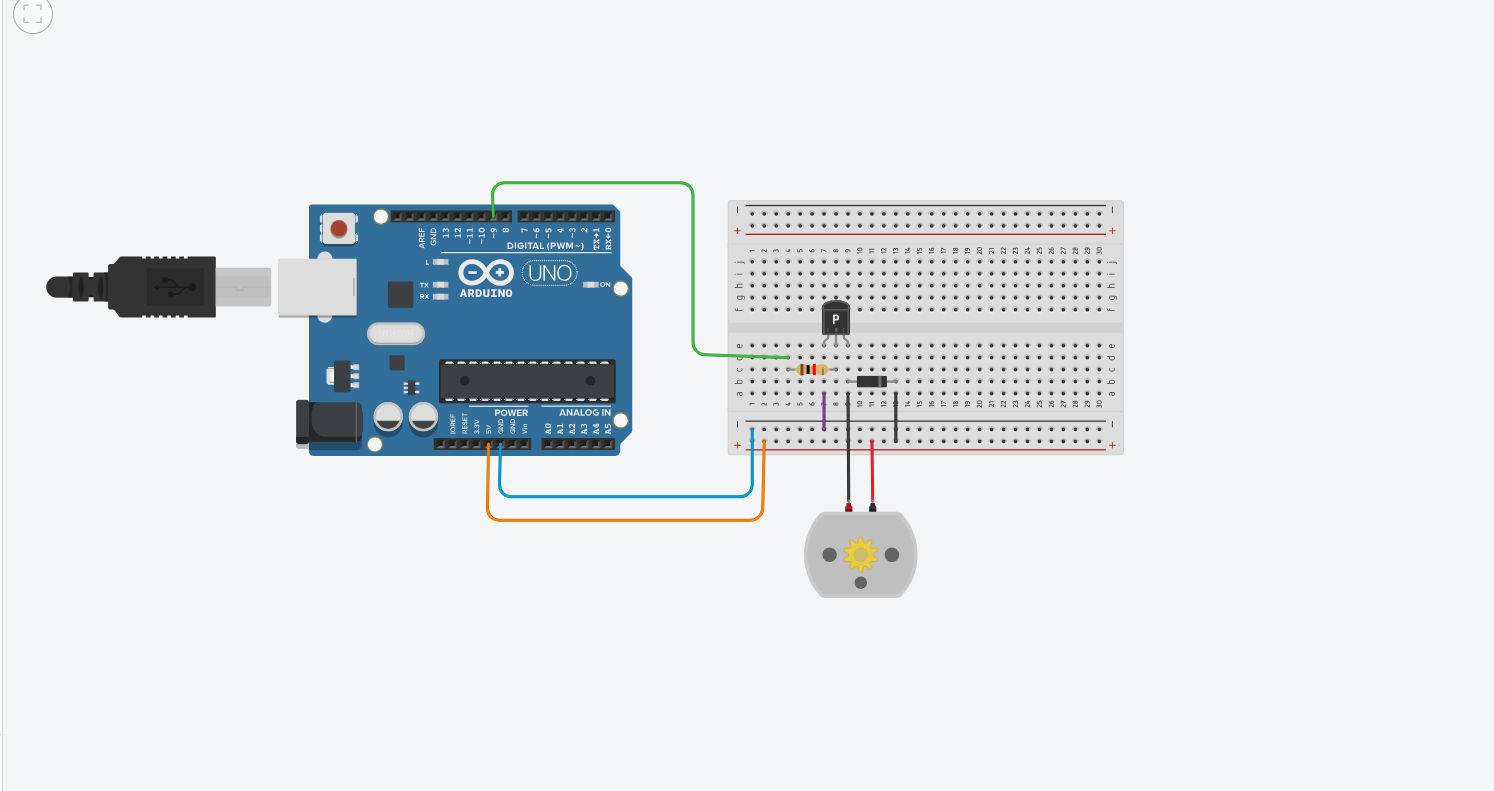

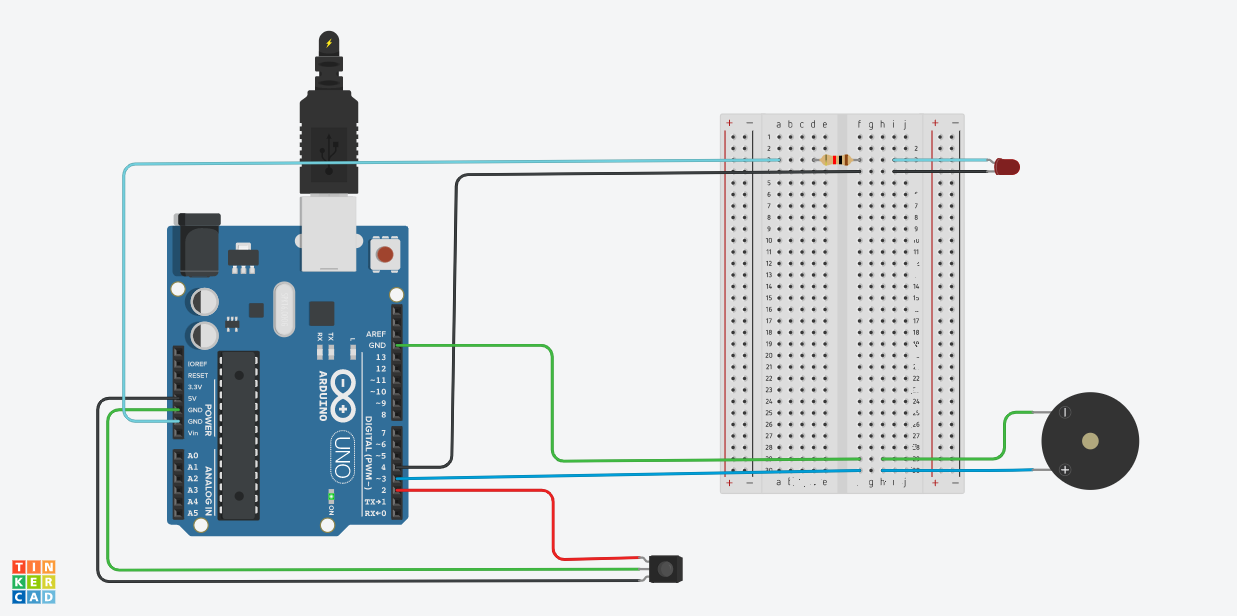

6.2 Circuit Diagram

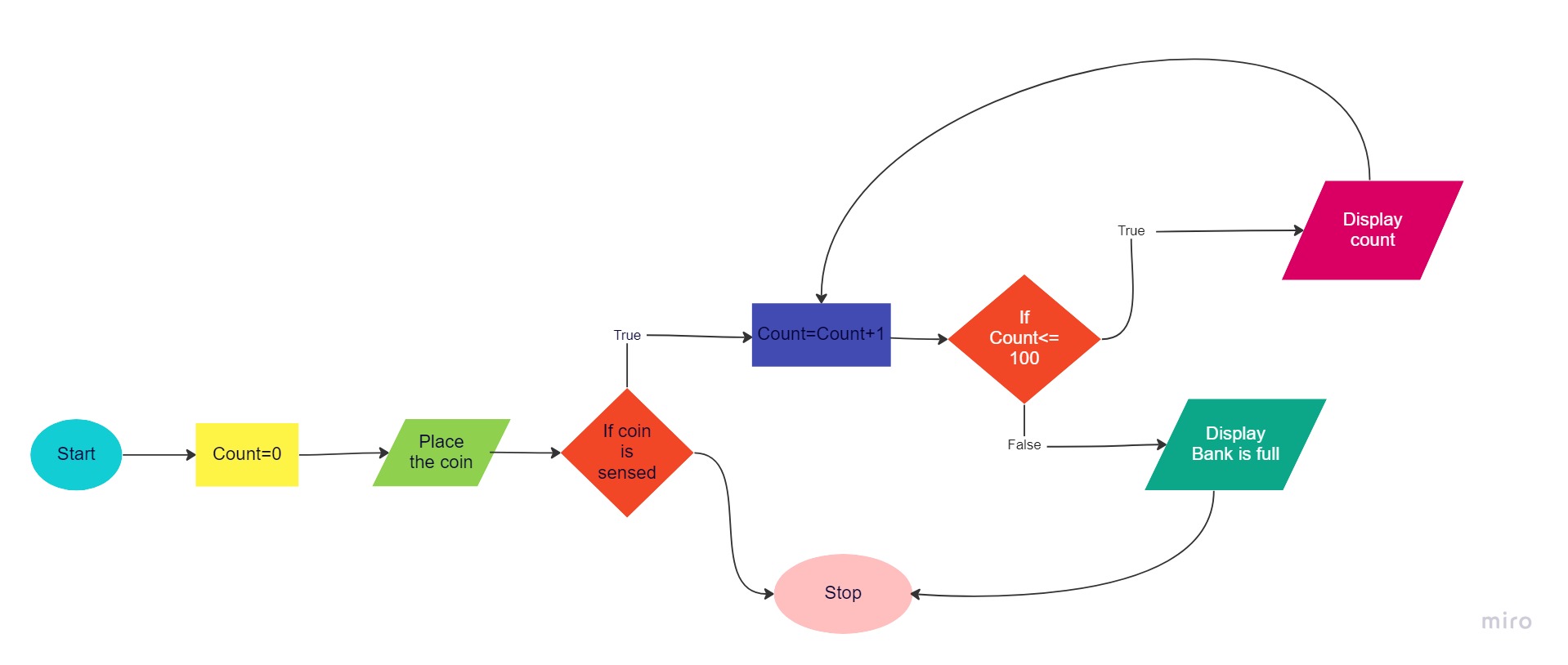

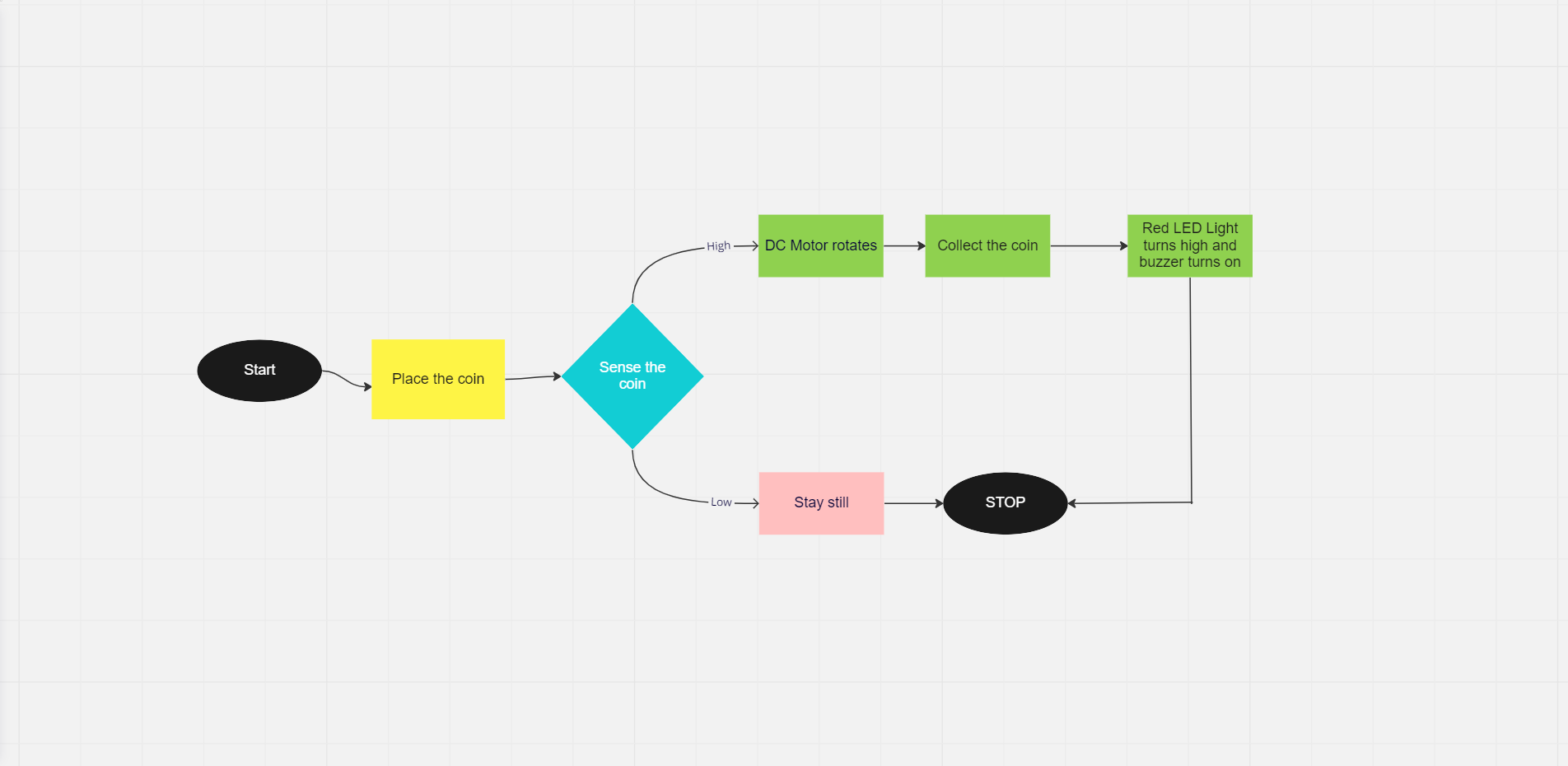

6.3 Flowchart
6.4 Bill of Materials
| Sl No. | Part name | Material used | Description | Quantity required |
|---|---|---|---|---|
| 1. | Box side with top and base | Foam board | 200mm x200mm x 160mm,Thickness-5mm | 1 |
| 2. | Mechanism (slider and crancker) | Acrylic sheet | 50mm x 15mm,Thickness-9mm | 1 |
| 3. | Mechanism(Cams) | Acrylic sheet | 90mm x 10mm, | |
| Thickness-9mm | 1 | |||
| 4. | Hollow storage box | Foam board | 280mm x200mm x 60mm,Thickness-6mm | 1 |
| 5. | For connecting parts:- | |||
| L clamps | - | 0.5inches | 8 | |
| Hinges | - | 2 inches | 1 | |
| Screws | - | Diameter=8mm,Length=20mm | ||
| Nuts and Bolts | - | 3mm x 15mm | 48 | |
| U-Clamps | - | 1.5 inches | 1 | |
| Washers | - | 3mm | 48 | |
| Aluminium Angle | - | 20mm x 20mm x 5mm | 1 | |
| 6. | DC Motor | - | 60 rpm | 1 |
| 7. | Microcontroller | Arduino ATMEGA2560 | - | 1 |
| 8. | Sensor | IR Sensor | - | 2 |
| 9. | LED Bulbs | - | Red colour | 1 |
| 10. | Buzzer | Piezo electronic buzzer | Diameter=38mm,Height=22mm | 1 |
| 11. | Stand for DC Motor | Foam board | 50mm*80mm,Thickness=10mm | 1 |
| 12. | Breadboard | Plastic | 3.3in*0.3in | 1 |
| 13. | Jumper wires | - | - | 14 |
| 14. | Resistors | - | 100 ohms | 1 |
| 15. | Cams | Nylon sleeve pipe | 8mm x 5cm | 1 |
