4.CONCEPT GENERATION - B-Division-2022-2023-Odd/Repo-01 GitHub Wiki
4.1 ESTABLISHING FUNCTION
| SL.NO | FUNCTIONS FROM DESIGNER PERSCEPTIVE |
|---|---|
| 1 | Switch on/off |
| 2 | Unlock the system manually |
| 3 | Hold the Zebra |
| 4 | Move the Zebra |
| 5 | Accept the Coins |
| 6 | Indicate for Insertion |
| 7 | Store the Coins |
| 8 | Count the number of coins |
| 9 | Display the number of coins |
| 10 | Lock the system Manually |
| 11 | Indicate for Withdrawal |

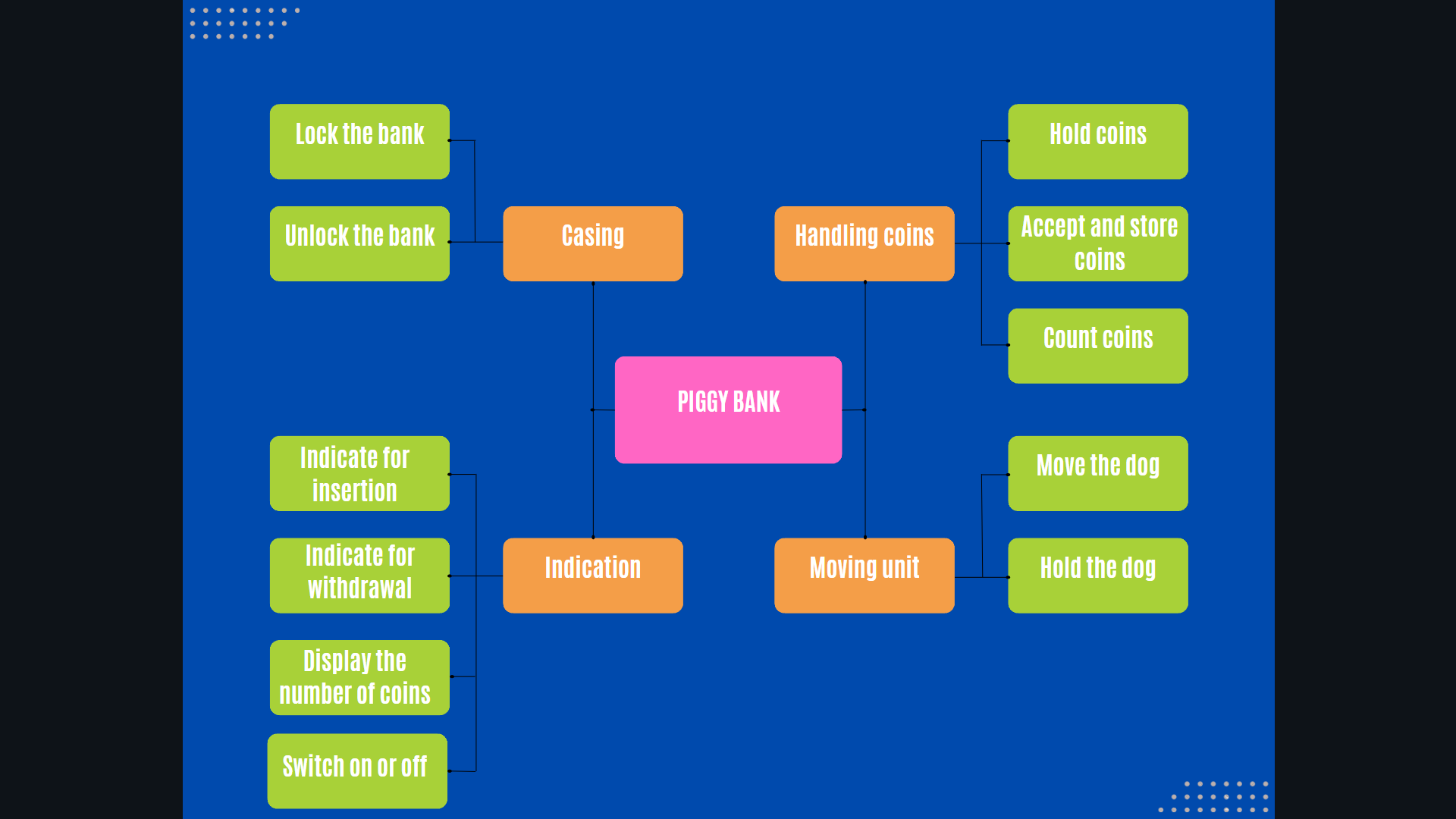

4.2 FUNCTION TREE
4.3 MORPHOLOGICAL CHART
| Sl. No. | Subfunction | Mean 1 | Mean 2 | Mean 3 | Mean 4 |
|---|---|---|---|---|---|
| 1 | Switch on/off |  Push button |
 Touch Sensor |
 Rocker switch |
 Mobile App |
| 2 | Lock/Unlock the system |  Rim lock |
 Magnetic keyed lock |
 Magstripe reader |
 Combination lock |
| 3 | Hold the Dog |  Wooden House |
 Acrylic house |
 Styrofoam house |
 Metal house |
| 4 | Move the Dog |  Rack and Pinion |
 Slider crank |
 Crank rocker |

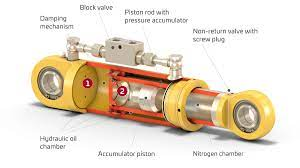

 Hydraulic Mechanism |
| 5 | Indication |  LED Bulbs |
 Buzzer |
 LED Strips |
 Neon lights |
| 6 | Storage |  Wooden box |
 Acrylic box |
 Metal box |
|
| 7 | Counting the coins |  Automated sensor |
 Rotating disks |
 IR SENSOR |
|

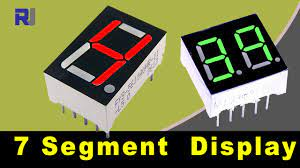

| 8 | Display |  7 Segment display |
 OLED display |
 LCD display |
4.4 GENERATED DESIGNS

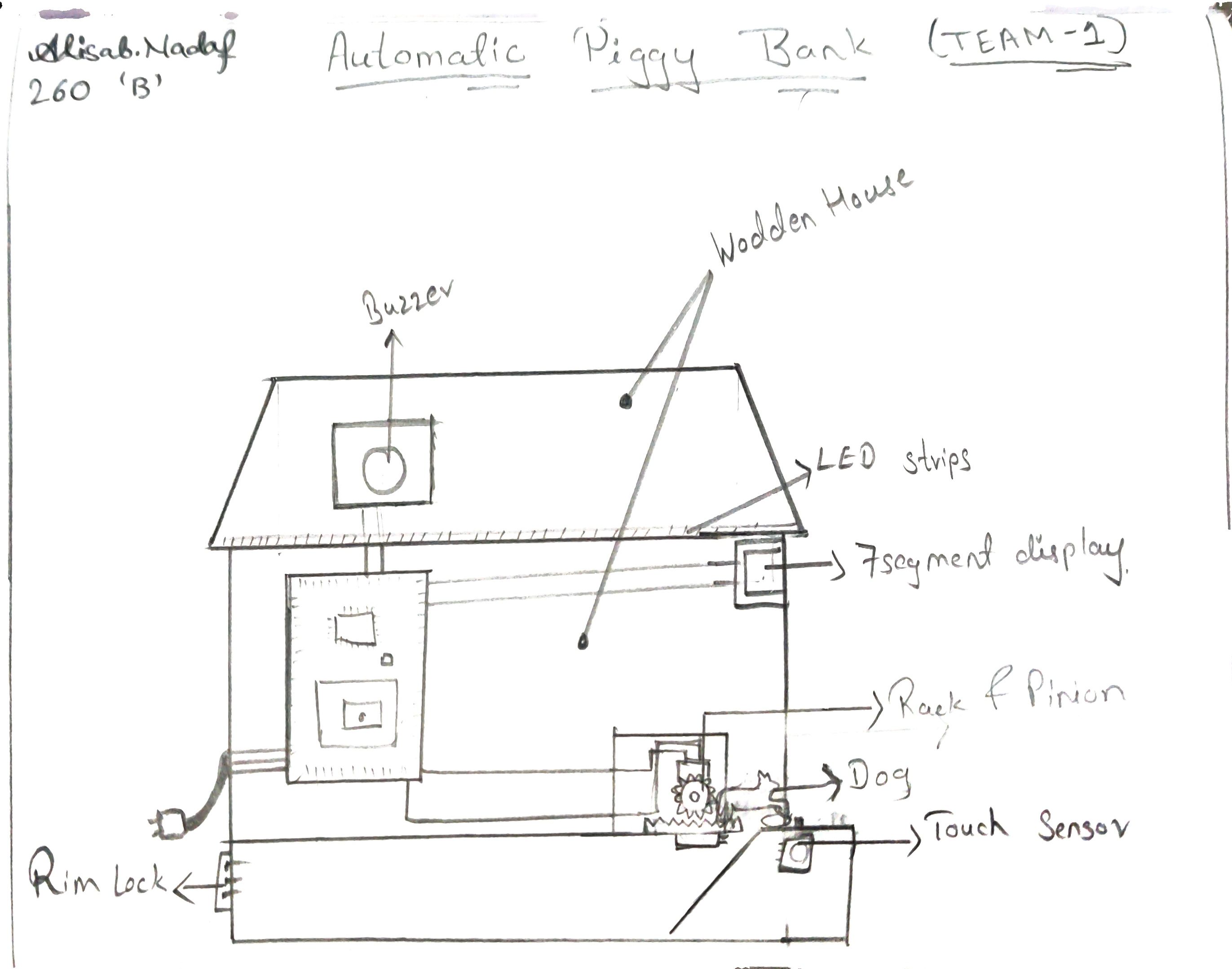

DESIGN 1

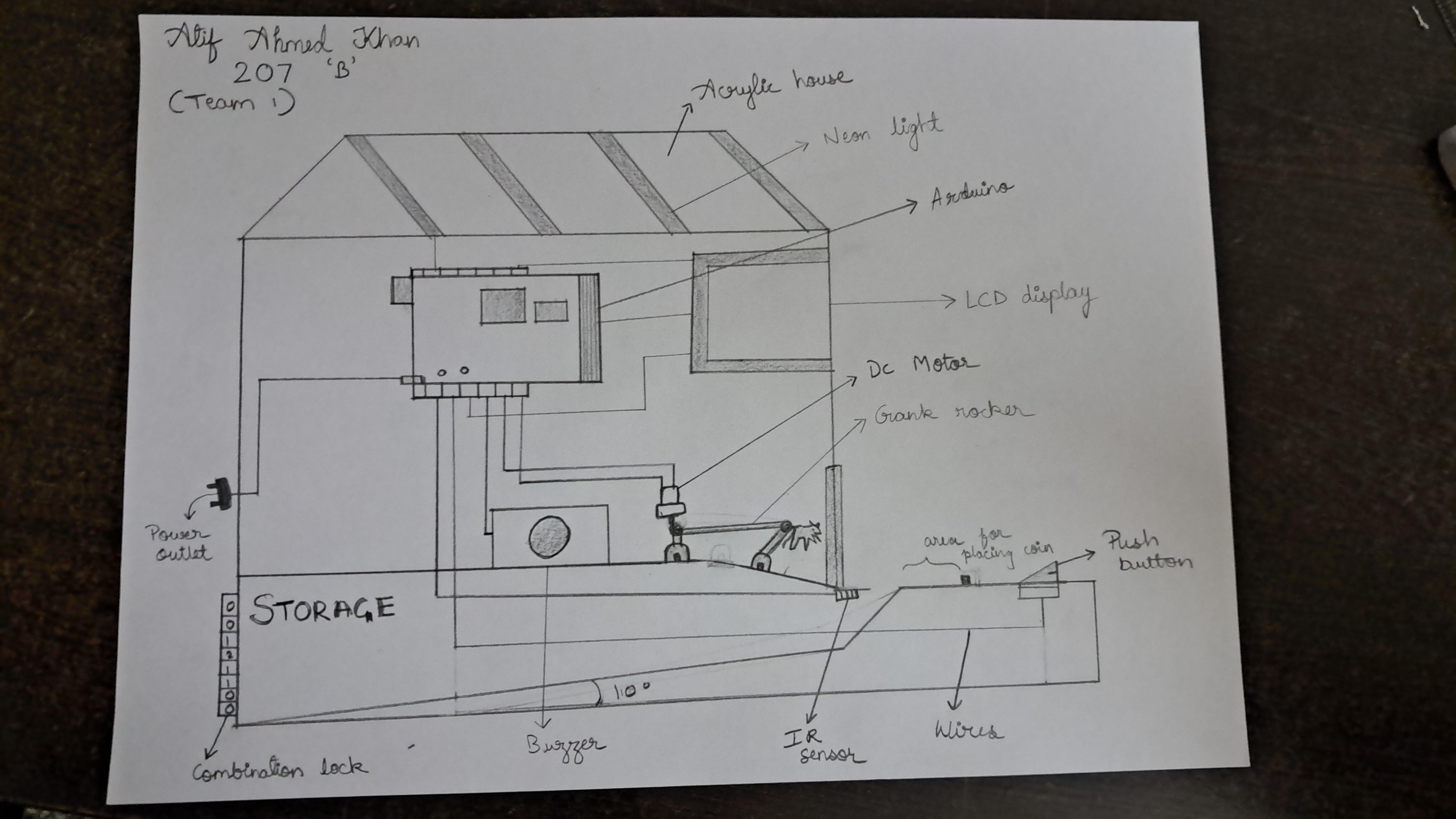

DESIGN 2
DESIGN 3
DESIGN 4
