3.1 Establish functions
| Sl.no | Functions |
|---|---|
| 1 | Machine should launch disc |
| 2 | Ready to launch indicator |
| 3 | Indicate after the launch |
| 4 | Direction changeable |
| 5 | Refill indicator |
| 6 | Indication using LED lights and sounds |
| 7 | Machine should have on/off button |
| 8 | It should hold the disc |

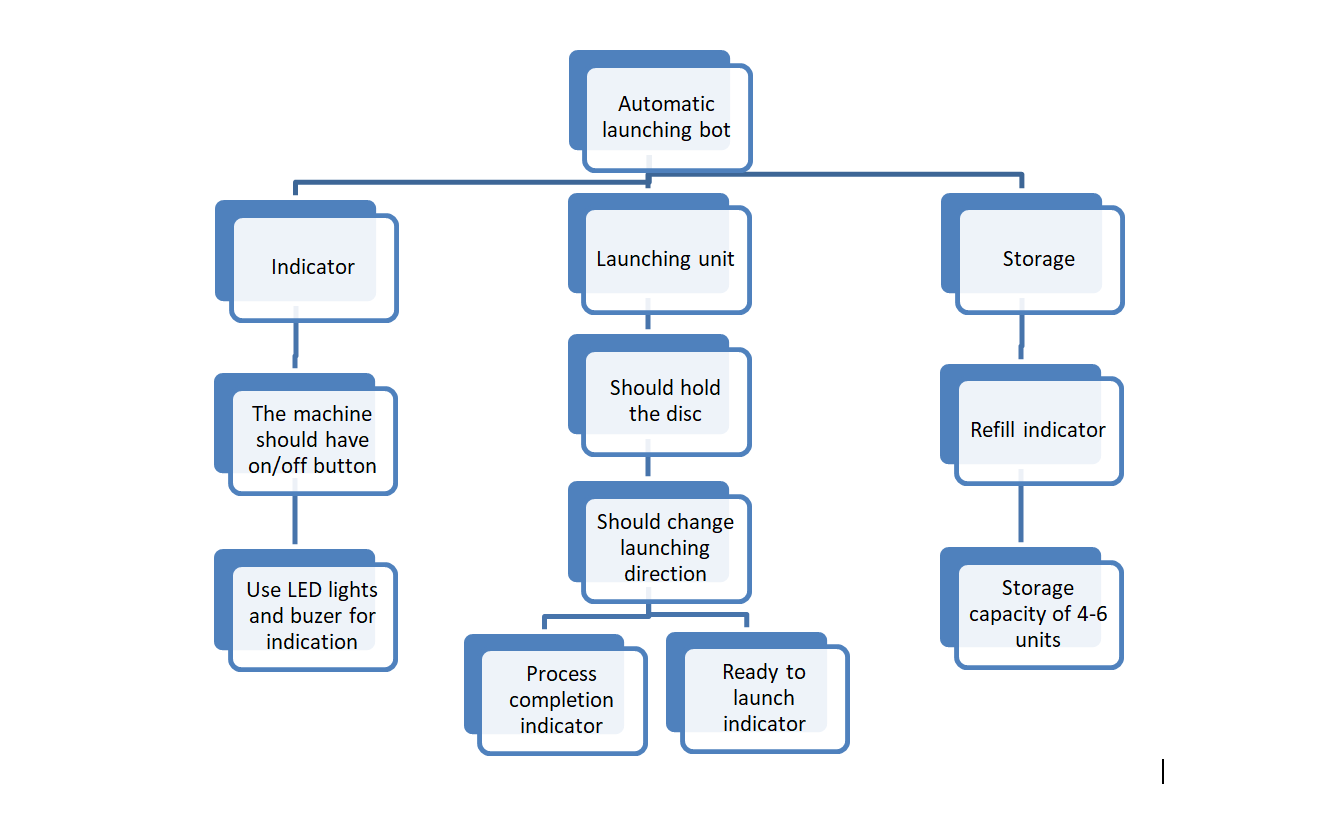

3.2 Function Tree

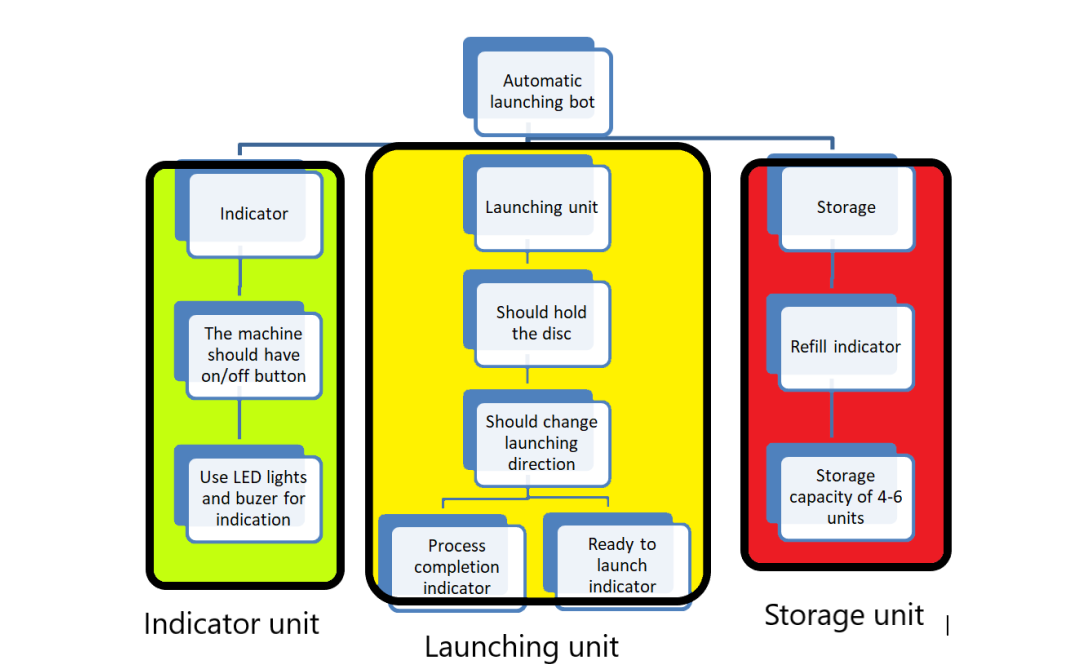

3.3 Functional clustering
3.4 Subsystems identified
1.Indicator unit
2.Launching unit
3.Storage unit
3.5 Establishing Means-Morphological Chart
| Sl.no | Functions | Mean 1 | Mean 2 | mean 3 | Mean 4 |
|---|---|---|---|---|---|
| 1 | Indicator | Buzer  |
LCD display  |
LED indicator |
Speaker  |
| 2 | Sensing disc | Pressure sensor  |
IR sensor  |
Ultrasonic sensor  |
Photoelectric sensor |
| 3 | Disc Launcher | DC motor  |
Stepper motor |
Servo Motor  |
|

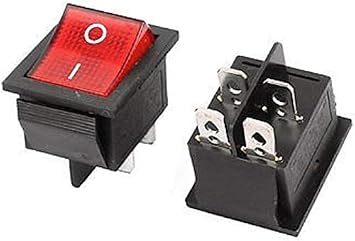

| 4 | on/off button | Joystick switch |
 |
 |
DPST switch  |
| 5 | Disc material | Acrylic board  |
Foam board  |
Wood  |
Carrom coins  |
| 6 | Base/stand | Flat stand  |
With wheel  |
Tri-pod stand  |
|
| 7 | Storage material | cardboard |
Acrylic |
Foam |
3.6 Conceptual design

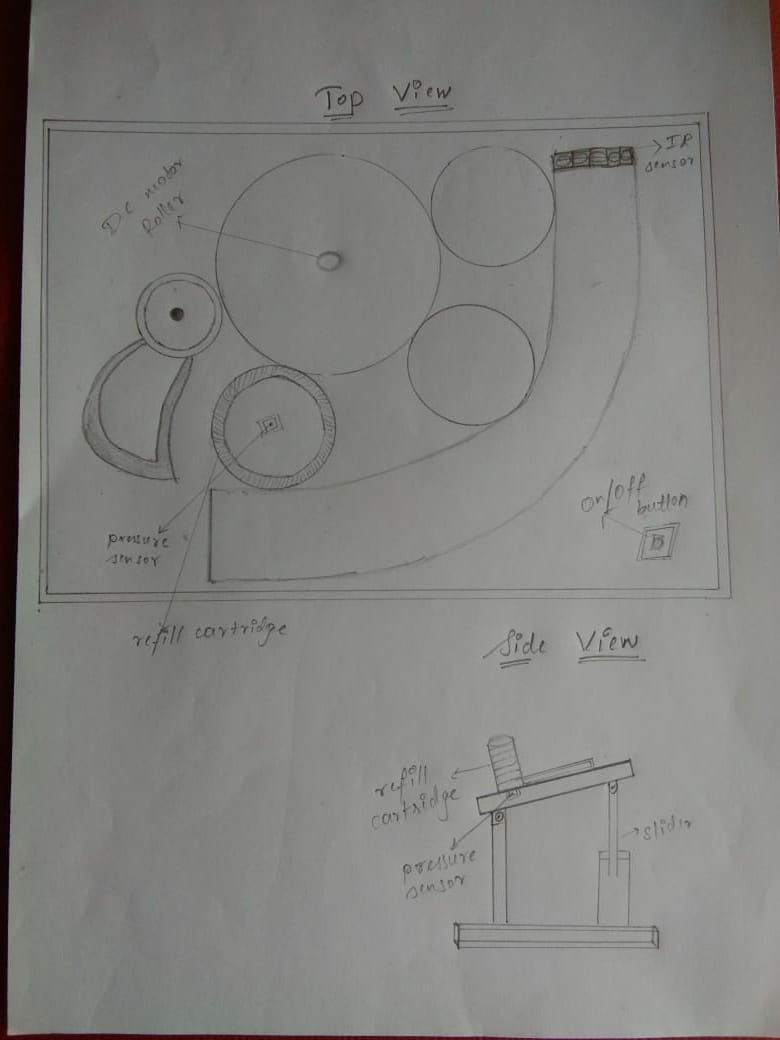

3.6.1 Concept 01

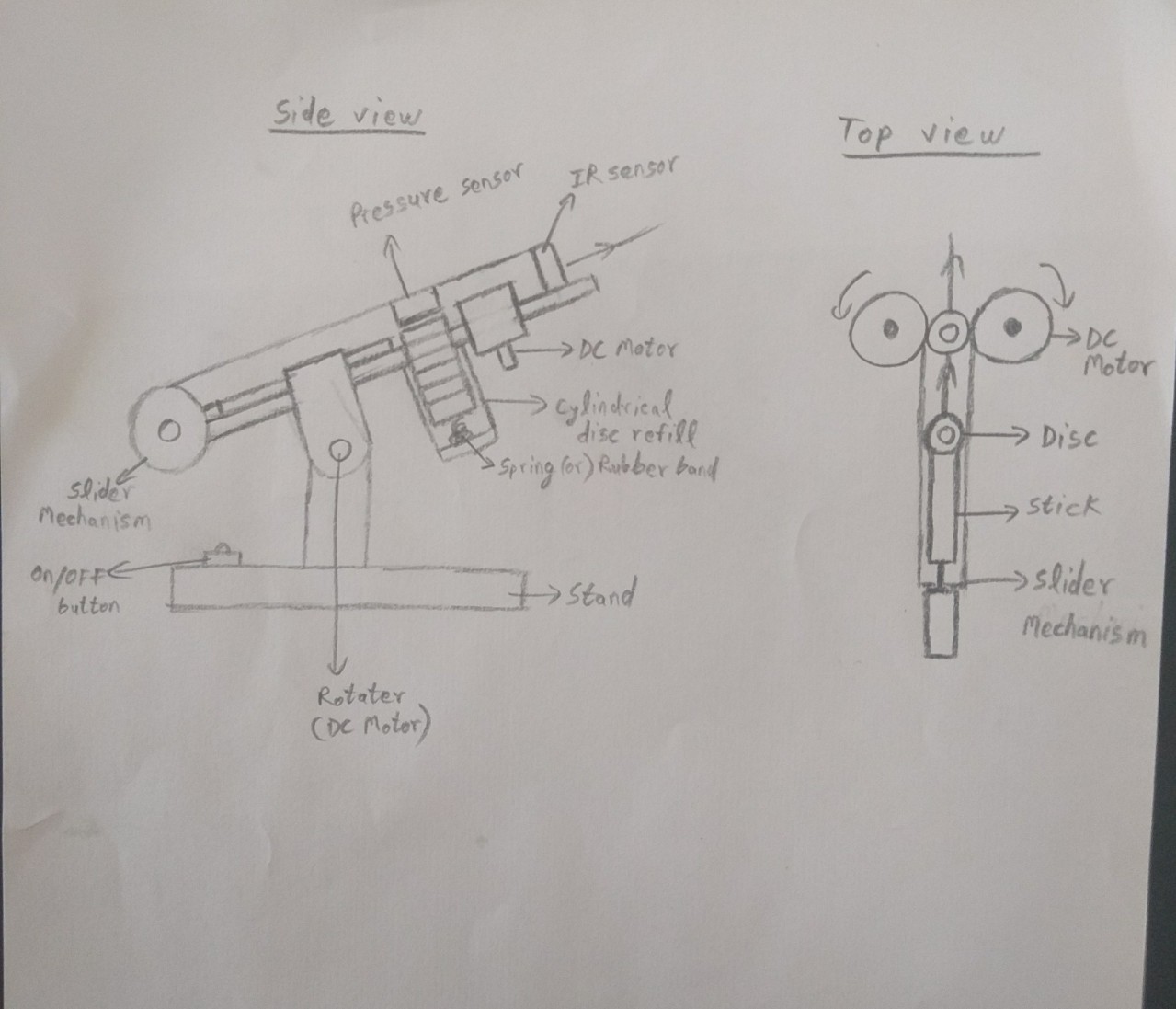

3.6.2 Concept 02

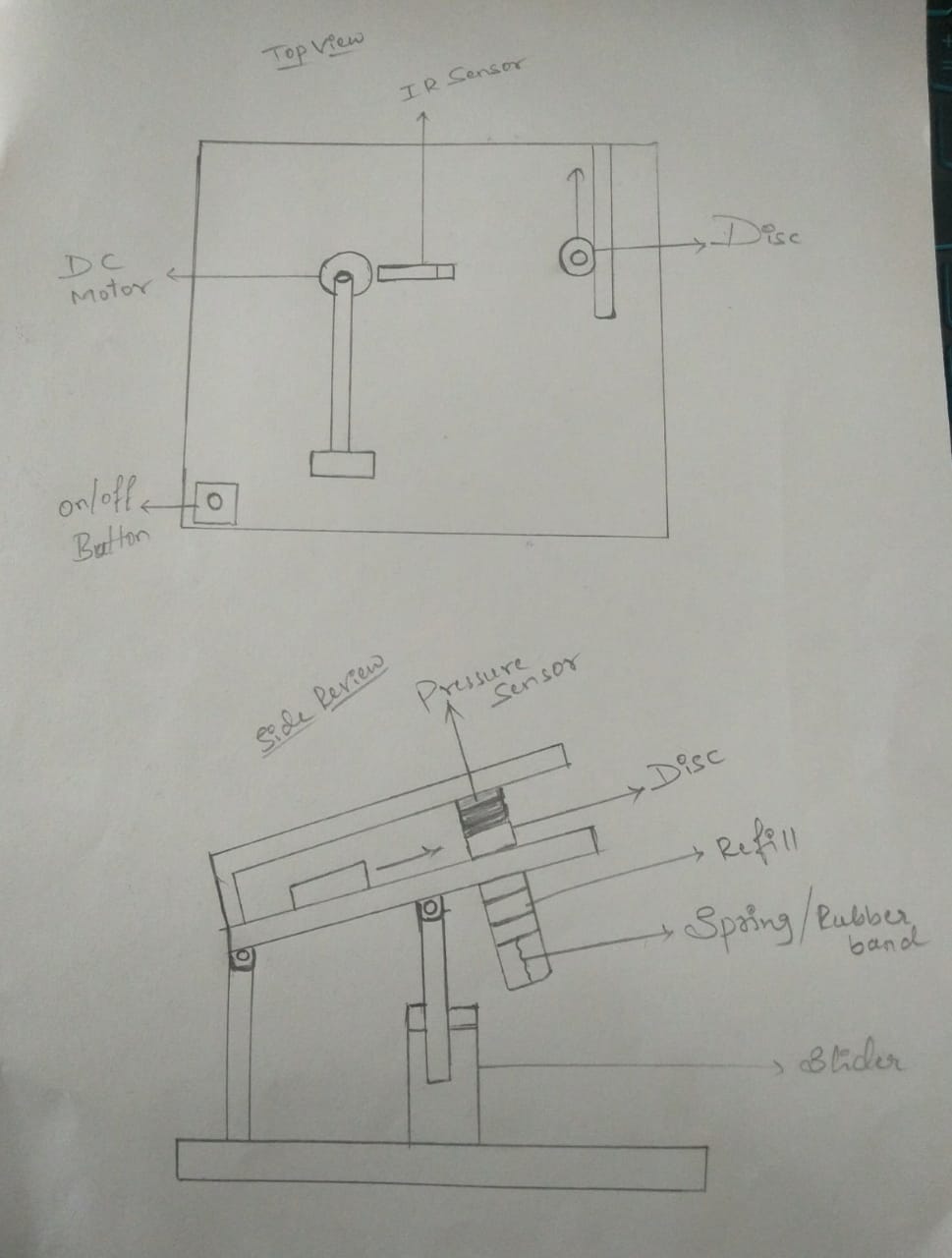

3.6.3 Concept 03

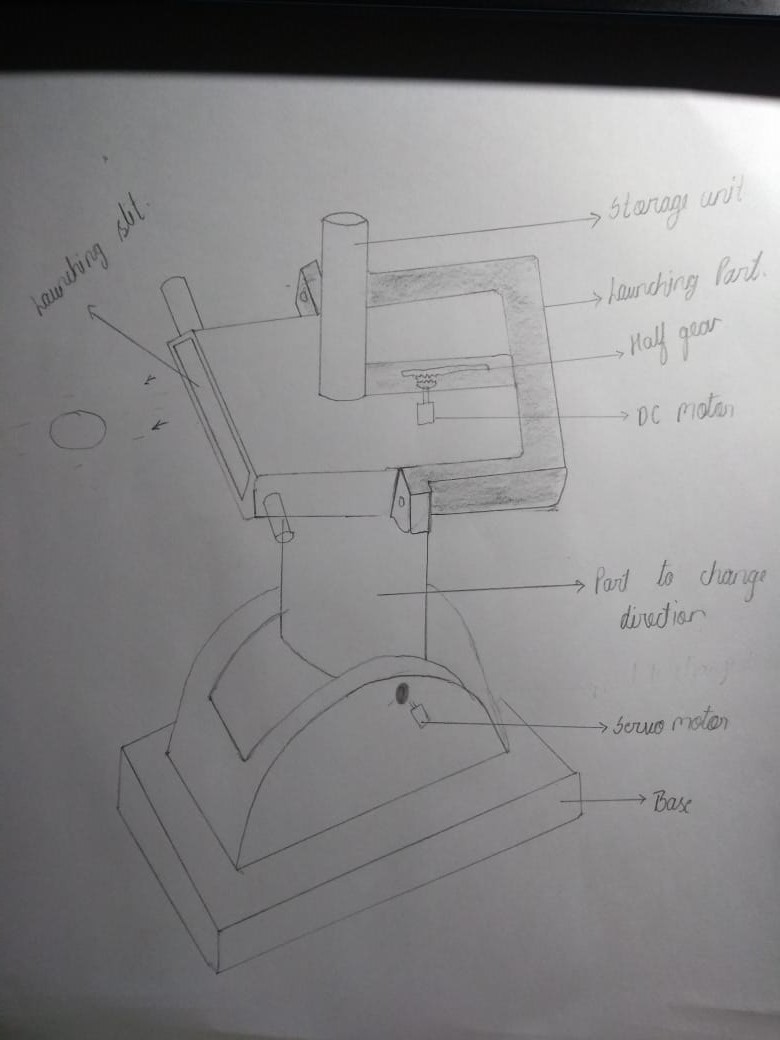

3.6.4 Concept 04
