The Swin Transformer V2 model is a type of Vision Transformer, pre-trained on ImageNet-21k with a resolution of 192x192, is introduced in the research-paper titled "Swin Transformer V2: Scaling Up Capacity and Resolution" authored by Liu et al. This model tries to resolve training instability, resolution gaps between pre-training and fine-tuning, and large labelled data issues in training and application of large vision models. This model generates hierarchical feature maps by merging image patches and computes self attention within a local window resulting in a linear computational complexity relative to input image size which is a significant improvement over vision transformers that take quadratic computational complexity.

Swin Transformer V2 introduces three improvements:

• a residual-post-norm method with cosine attention to improve training stability
• a log-spaced continuous position bias method, aiding the transfer of pre-trained models from low-resolution images to tasks with high-resolution inputs
• the application of a self-supervised pre-training method called SimMIM, designed to reduce the need for extensive labeled images

apache-2.0

{
  "input_data": ["image1", "image2"]
}

Note: "image1" and "image2" string should be in base64 format or publicly accessible urls.

[
  [
    {
      "label" : "can",
      "score" : 0.91
    },
    {
      "label" : "carton",
      "score" : 0.09
    },
  ],
  [
    {
      "label" : "carton",
      "score" : 0.9
    },
    {
      "label" : "can",
      "score" : 0.1
    },
  ]
]

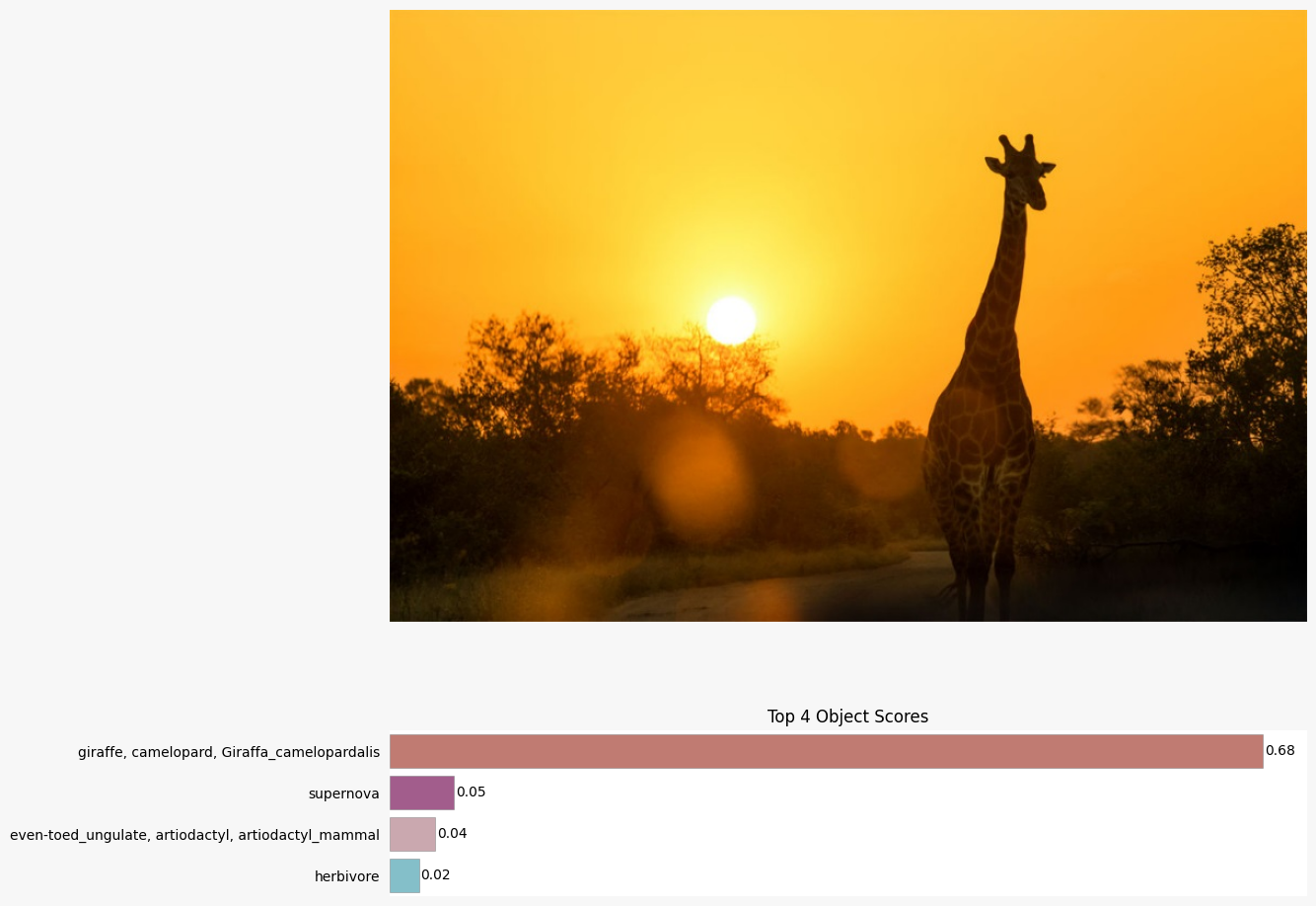

Note: The labels provided by swinv2 model are class indices appended to "LABEL_"(starting from "LABEL_0" to "LABEL_21841"). For e.g. "LABEL_3500" for "Giraffe". For visualization purpose, we explictly mapped these labels to imagenet-21k class names which are shown above in the sample image.

Version: 20

huggingface_model_id : microsoft/swinv2-base-patch4-window12-192-22k training_dataset : imagenet-1k SharedComputeCapacityEnabled author : Microsoft license : apache-2.0 model_specific_defaults : ordereddict({'apply_deepspeed': 'true', 'apply_ort': 'true'}) task : image-classification hiddenlayerscanned inference_compute_allow_list : ['Standard_DS3_v2', 'Standard_D4a_v4', 'Standard_D4as_v4', 'Standard_DS4_v2', 'Standard_D8a_v4', 'Standard_D8as_v4', 'Standard_DS5_v2', 'Standard_D16a_v4', 'Standard_D16as_v4', 'Standard_D32a_v4', 'Standard_D32as_v4', 'Standard_D48a_v4', 'Standard_D48as_v4', 'Standard_D64a_v4', 'Standard_D64as_v4', 'Standard_D96a_v4', 'Standard_D96as_v4', 'Standard_FX4mds', 'Standard_F8s_v2', 'Standard_FX12mds', 'Standard_F16s_v2', 'Standard_F32s_v2', 'Standard_F48s_v2', 'Standard_F64s_v2', 'Standard_F72s_v2', 'Standard_FX24mds', 'Standard_FX36mds', 'Standard_FX48mds', 'Standard_E4s_v3', 'Standard_E8s_v3', 'Standard_E16s_v3', 'Standard_E32s_v3', 'Standard_E48s_v3', 'Standard_E64s_v3', 'Standard_NC4as_T4_v3', 'Standard_NC6s_v3', 'Standard_NC8as_T4_v3', 'Standard_NC12s_v3', 'Standard_NC16as_T4_v3', 'Standard_NC24s_v3', 'Standard_NC64as_T4_v3', 'Standard_NC24ads_A100_v4', 'Standard_NC48ads_A100_v4', 'Standard_NC96ads_A100_v4', 'Standard_ND96asr_v4', 'Standard_ND96amsr_A100_v4', 'Standard_ND40rs_v2'] evaluation_compute_allow_list : ['Standard_NC4as_T4_v3', 'Standard_NC6s_v3', 'Standard_NC8as_T4_v3', 'Standard_NC12s_v3', 'Standard_NC16as_T4_v3', 'Standard_NC24s_v3', 'Standard_NC64as_T4_v3', 'Standard_NC96ads_A100_v4', 'Standard_ND96asr_v4', 'Standard_ND96amsr_A100_v4', 'Standard_ND40rs_v2'] finetune_compute_allow_list : ['Standard_NC4as_T4_v3', 'Standard_NC6s_v3', 'Standard_NC8as_T4_v3', 'Standard_NC12s_v3', 'Standard_NC16as_T4_v3', 'Standard_NC24s_v3', 'Standard_NC64as_T4_v3', 'Standard_NC96ads_A100_v4', 'Standard_ND96asr_v4', 'Standard_ND96amsr_A100_v4', 'Standard_ND40rs_v2']

View in Studio: https://ml.azure.com/registries/azureml/models/microsoft-swinv2-base-patch4-window12-192-22k/version/20

License: apache-2.0

SharedComputeCapacityEnabled: True

SHA: 787136395d17f54db4265d71143193d68107bf49

finetuning-tasks: image-classification

finetune-min-sku-spec: 4|1|28|176

finetune-recommended-sku: Standard_NC4as_T4_v3, Standard_NC6s_v3, Standard_NC8as_T4_v3, Standard_NC12s_v3, Standard_NC16as_T4_v3, Standard_NC24s_v3, Standard_NC64as_T4_v3, Standard_NC96ads_A100_v4, Standard_ND96asr_v4, Standard_ND96amsr_A100_v4, Standard_ND40rs_v2

evaluation-min-sku-spec: 4|1|28|176

evaluation-recommended-sku: Standard_NC4as_T4_v3, Standard_NC6s_v3, Standard_NC8as_T4_v3, Standard_NC12s_v3, Standard_NC16as_T4_v3, Standard_NC24s_v3, Standard_NC64as_T4_v3, Standard_NC96ads_A100_v4, Standard_ND96asr_v4, Standard_ND96amsr_A100_v4, Standard_ND40rs_v2

inference-min-sku-spec: 4|0|14|28

inference-recommended-sku: Standard_DS3_v2, Standard_D4a_v4, Standard_D4as_v4, Standard_DS4_v2, Standard_D8a_v4, Standard_D8as_v4, Standard_DS5_v2, Standard_D16a_v4, Standard_D16as_v4, Standard_D32a_v4, Standard_D32as_v4, Standard_D48a_v4, Standard_D48as_v4, Standard_D64a_v4, Standard_D64as_v4, Standard_D96a_v4, Standard_D96as_v4, Standard_FX4mds, Standard_F8s_v2, Standard_FX12mds, Standard_F16s_v2, Standard_F32s_v2, Standard_F48s_v2, Standard_F64s_v2, Standard_F72s_v2, Standard_FX24mds, Standard_FX36mds, Standard_FX48mds, Standard_E4s_v3, Standard_E8s_v3, Standard_E16s_v3, Standard_E32s_v3, Standard_E48s_v3, Standard_E64s_v3, Standard_NC4as_T4_v3, Standard_NC6s_v3, Standard_NC8as_T4_v3, Standard_NC12s_v3, Standard_NC16as_T4_v3, Standard_NC24s_v3, Standard_NC64as_T4_v3, Standard_NC24ads_A100_v4, Standard_NC48ads_A100_v4, Standard_NC96ads_A100_v4, Standard_ND96asr_v4, Standard_ND96amsr_A100_v4, Standard_ND40rs_v2
