mask_rcnn_swin-t-p4-w7_fpn_1x_coco

Overview

This paper presents a new vision Transformer, called Swin Transformer, that capably serves as a general-purpose backbone for computer vision. Challenges in adapting Transformer from language to vision arise from differences between the two domains, such as large variations in the scale of visual entities and the high resolution of pixels in images compared to words in text. To address these differences, we propose a hierarchical Transformer whose representation is computed with Shifted windows. The shifted windowing scheme brings greater efficiency by limiting self-attention computation to non-overlapping local windows while also allowing for cross-window connection. This hierarchical architecture has the flexibility to model at various scales and has linear computational complexity with respect to image size. These qualities of Swin Transformer make it compatible with a broad range of vision tasks, including image classification (87.3 top-1 accuracy on ImageNet-1K) and dense prediction tasks such as object detection (58.7 box AP and 51.1 mask AP on COCO test-dev) and semantic segmentation (53.5 mIoU on ADE20K val). Its performance surpasses the previous state-of-the-art by a large margin of +2.7 box AP and +2.6 mask AP on COCO, and +3.2 mIoU on ADE20K, demonstrating the potential of Transformer-based models as vision backbones. The hierarchical design and the shifted window approach also prove beneficial for all-MLP architectures.

The above abstract is from mmdetection website. Review the original-model-card to understand the data used to train the model, evaluation metrics, license, intended uses, limitations and bias before using the model.

Deprecation Warning: This model is only compatible with mmdet <= 2.28 and is deprecated, will be deleted from Model Catalog by the End of January 2024. We recommend using mmd-3x-mask-rcnn_swin-t-p4-w7_fpn_1x_coco from the AzureML model catalog. In our model catalog, the models prefixed with mmdet-3x are compatible with mmdet >= 3.1.0.

Inference samples

Inference type Python sample (Notebook) CLI with YAML
Real time image-instance-segmentation-online-endpoint.ipynb image-instance-segmentation-online-endpoint.sh
Batch image-instance-segmentation-batch-endpoint.ipynb image-instance-segmentation-batch-endpoint.sh

Finetuning samples

Task Use case Dataset Python sample (Notebook) CLI with YAML
Image instance segmentation Image instance segmentation fridgeObjects fridgeobjects-instance-segmentation.ipynb fridgeobjects-instance-segmentation.sh

Model Evaluation

Task Use case Dataset Python sample (Notebook)
Image instance segmentation Image instance segmentation fridgeObjects image-instance-segmentation.ipynb

Sample inputs and outputs (for real-time inference)

Sample input

{
  "input_data": {
    "columns": [
      "image"
    ],
    "index": [0, 1],
    "data": ["image1", "image2"]
  }
}

Note: "image1" and "image2" string should be in base64 format or publicly accessible urls.

Sample output

[
    {
        "boxes": [
            {
                "box": {
                    "topX": 0.1,
                    "topY": 0.2,
                    "bottomX": 0.8,
                    "bottomY": 0.7
                },
                "label": "carton",
                "score": 0.98,
                "polygon": [
                    [ 0.576, 0.680,  …]
                ]
            }
        ]
    },
    {
        "boxes": [
            {
                "box": {
                    "topX": 0.2,
                    "topY": 0.3,
                    "bottomX": 0.6,
                    "bottomY": 0.5
                },
                "label": "can",
                "score": 0.97,
                "polygon": [
                    [ 0.58, 0.7,  …]
                ]
            }
        ]
    }
]

Note: Please refer to instance segmentation output data schema for more detail.

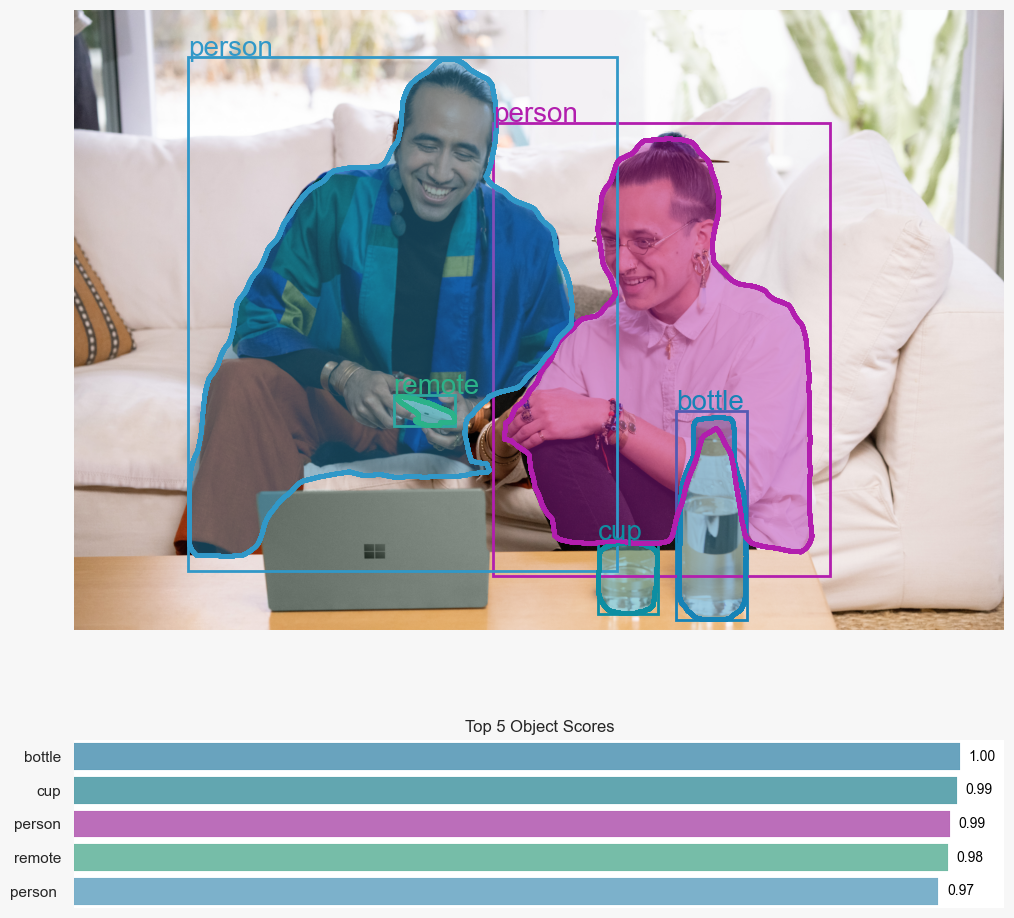

Model inference - visualization for a sample image

is visualization

Version: 11

Tags

Deprecated SharedComputeCapacityEnabled openmmlab_model_id : mask_rcnn_swin-t-p4-w7_fpn_1x_coco training_dataset : COCO license : apache-2.0 model_specific_defaults : ordereddict({'apply_deepspeed': 'false', 'apply_ort': 'false'}) task : image-segmentation inference_compute_allow_list : ['Standard_DS3_v2', 'Standard_D4a_v4', 'Standard_D4as_v4', 'Standard_DS4_v2', 'Standard_D8a_v4', 'Standard_D8as_v4', 'Standard_DS5_v2', 'Standard_D16a_v4', 'Standard_D16as_v4', 'Standard_D32a_v4', 'Standard_D32as_v4', 'Standard_D48a_v4', 'Standard_D48as_v4', 'Standard_D64a_v4', 'Standard_D64as_v4', 'Standard_D96a_v4', 'Standard_D96as_v4', 'Standard_FX4mds', 'Standard_F8s_v2', 'Standard_FX12mds', 'Standard_F16s_v2', 'Standard_F32s_v2', 'Standard_F48s_v2', 'Standard_F64s_v2', 'Standard_F72s_v2', 'Standard_FX24mds', 'Standard_FX36mds', 'Standard_FX48mds', 'Standard_E4s_v3', 'Standard_E8s_v3', 'Standard_E16s_v3', 'Standard_E32s_v3', 'Standard_E48s_v3', 'Standard_E64s_v3', 'Standard_NC4as_T4_v3', 'Standard_NC6s_v3', 'Standard_NC8as_T4_v3', 'Standard_NC12s_v3', 'Standard_NC16as_T4_v3', 'Standard_NC24s_v3', 'Standard_NC64as_T4_v3', 'Standard_NC24ads_A100_v4', 'Standard_NC48ads_A100_v4', 'Standard_NC96ads_A100_v4', 'Standard_ND96asr_v4', 'Standard_ND96amsr_A100_v4', 'Standard_ND40rs_v2'] evaluation_compute_allow_list : ['Standard_NC4as_T4_v3', 'Standard_NC6s_v3', 'Standard_NC8as_T4_v3', 'Standard_NC12s_v3', 'Standard_NC16as_T4_v3', 'Standard_NC24s_v3', 'Standard_NC64as_T4_v3', 'Standard_NC96ads_A100_v4', 'Standard_ND96asr_v4', 'Standard_ND96amsr_A100_v4', 'Standard_ND40rs_v2'] finetune_compute_allow_list : ['Standard_NC4as_T4_v3', 'Standard_NC6s_v3', 'Standard_NC8as_T4_v3', 'Standard_NC12s_v3', 'Standard_NC16as_T4_v3', 'Standard_NC24s_v3', 'Standard_NC64as_T4_v3', 'Standard_NC96ads_A100_v4', 'Standard_ND96asr_v4', 'Standard_ND96amsr_A100_v4', 'Standard_ND40rs_v2']

View in Studio: https://ml.azure.com/registries/azureml/models/mask_rcnn_swin-t-p4-w7_fpn_1x_coco/version/11

License: apache-2.0

Properties

SharedComputeCapacityEnabled: True

SHA: 731a28ee7b73452a859d507c99185d1c0d238cb8

finetuning-tasks: image-instance-segmentation

finetune-min-sku-spec: 4|1|28|176

finetune-recommended-sku: Standard_NC4as_T4_v3, Standard_NC6s_v3, Standard_NC8as_T4_v3, Standard_NC12s_v3, Standard_NC16as_T4_v3, Standard_NC24s_v3, Standard_NC64as_T4_v3, Standard_NC96ads_A100_v4, Standard_ND96asr_v4, Standard_ND96amsr_A100_v4, Standard_ND40rs_v2

evaluation-min-sku-spec: 4|1|28|176

evaluation-recommended-sku: Standard_NC4as_T4_v3, Standard_NC6s_v3, Standard_NC8as_T4_v3, Standard_NC12s_v3, Standard_NC16as_T4_v3, Standard_NC24s_v3, Standard_NC64as_T4_v3, Standard_NC96ads_A100_v4, Standard_ND96asr_v4, Standard_ND96amsr_A100_v4, Standard_ND40rs_v2

inference-min-sku-spec: 4|0|14|28

inference-recommended-sku: Standard_DS3_v2, Standard_D4a_v4, Standard_D4as_v4, Standard_DS4_v2, Standard_D8a_v4, Standard_D8as_v4, Standard_DS5_v2, Standard_D16a_v4, Standard_D16as_v4, Standard_D32a_v4, Standard_D32as_v4, Standard_D48a_v4, Standard_D48as_v4, Standard_D64a_v4, Standard_D64as_v4, Standard_D96a_v4, Standard_D96as_v4, Standard_FX4mds, Standard_F8s_v2, Standard_FX12mds, Standard_F16s_v2, Standard_F32s_v2, Standard_F48s_v2, Standard_F64s_v2, Standard_F72s_v2, Standard_FX24mds, Standard_FX36mds, Standard_FX48mds, Standard_E4s_v3, Standard_E8s_v3, Standard_E16s_v3, Standard_E32s_v3, Standard_E48s_v3, Standard_E64s_v3, Standard_NC4as_T4_v3, Standard_NC6s_v3, Standard_NC8as_T4_v3, Standard_NC12s_v3, Standard_NC16as_T4_v3, Standard_NC24s_v3, Standard_NC64as_T4_v3, Standard_NC24ads_A100_v4, Standard_NC48ads_A100_v4, Standard_NC96ads_A100_v4, Standard_ND96asr_v4, Standard_ND96amsr_A100_v4, Standard_ND40rs_v2
