DartCore.UI - AtaTrkgl/Unity-DartCore GitHub Wiki

You can create the following UI widgets by right clicking on the hierarchy UI/DartCore.

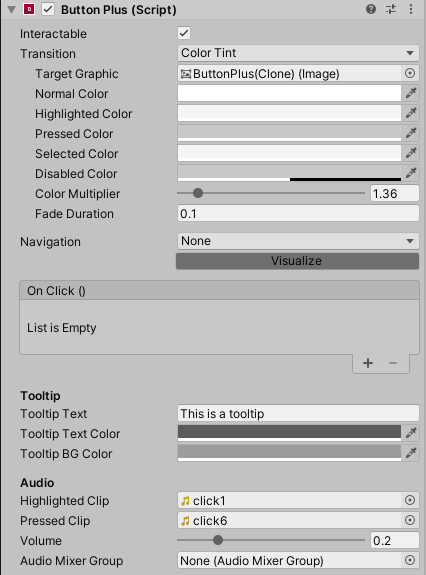

ButtonPlus functions same as the standart button of the Unity Engine. It has 2 extra features, a tooltip and sound effects.

Properties:

1. Tooltip:

• Tooltip Text: The text of the tooltip. If left blank, tooltip will be disabled.
• Tooltip Text Color: Text color of the tooltip.
• Tooltip BG Color: Text bg of the tooltip.

2. Audio:

• Highlighted Clip: AudioClip that will be played on cursor enter.
• Pressed Clip: AudioClip that will be played on cursor click.
• Volume: Volume of the sound effects between 0 and 1.
• Audio Mixer Group: The mixergroup of the sound effects (not mandatory for SFXs).

You can access to all of these properties programmatically.

Example usage:

string desiredToolTip = "This is the desired tooltip text";
GameObject.FindObjectOfType<ButtonPlus>().toolTip = desiredToolTip;

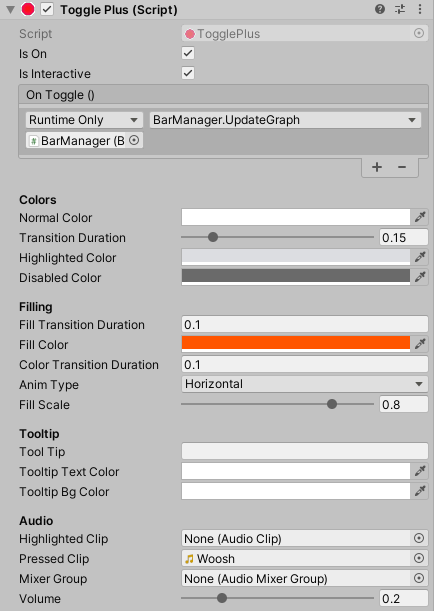

TogglePlus functions same as the standart toggle of the Unity Engine with a lot of new customization options.

Properties:

1. Colors:

• Normal Color: Color of the background when not pressed or highligted.
• Transition Duration: Transition time between background colors.
• Highligted Color: Color of the background when the cursor is on the toggle.
• Disabled Color: Color of the background when the isOn boolean is set to false.

2. Filing:

• Fill Transition Duration: The time it takes to transition between the on and off states.
• Fill Color: Color of the filler.
• Color Transition Duration: The time it takes to transition between fill colors.
• Anim Type: Animation of the filling.
• Fill Scale: Scale of the fill between 0 and 1.

3. Tooltip:

• Tooltip Text: The text of the tooltip. If left blank, tooltip will be disabled.
• Tooltip Text Color: Text color of the tooltip.
• Tooltip BG Color: Text bg of the tooltip.

4. Audio:

• Highlighted Clip: AudioClip that will be played on cursor enter.
• Pressed Clip: AudioClip that will be played on cursor click.
• Volume: Volume of the sound effects between 0 and 1.
• Audio Mixer Group: The mixergroup of the sound effects (not mandatory for SFXs).

You can access to all of these properties programmatically.

Example usage:

float desiredTransitionDuration = .2f;
GameObject.FindObjectOfType<TogglePlus>().fillTransitionDuration = desiredTransitionDuration;

Not yet documented.

Not yet documented.

Not yet documented.

Not yet documented.

Not yet documented.

Not yet documented.

Not yet documented.

Not yet documented.
