Slider - AppDaddy-Software-Solutions-Inc/framework-markup-language GitHub Wiki

<SLIDER/> : FormField

The <SLIDER/> creates a user interactable sliding interface for quickly indicating numeric value(s).

Restrictions:

  • The minimum must be less than the maximum
  • <SLIDER/> can only have even divisions of the full range of values
  • <SLIDER/> always have an initial value, ensure that where employing Slider you expect and account for that
  • <SLIDER/> divisions should always divide to a whole number given the range, see fig.a

Attributes

Name Type Default Description Req
minimum num n/a The minimum value the slider goes down to ✔️
maximum num n/a The maximum value the slider goes up to ✔️
divisions num null How many divisions within the min-max range there should be
range bool false Should the slider allow for a ranged value

Examples

(fig. a)
<FML>
    <CENTER>
        <SLIDER id="s1" color="blue" minimum="1" maximum="4" value="2" width="300" divisions="3"/>
        <SLIDER id="s2" color="cyan" minimum="0" maximum="100" value="100" width="300"/>
        <SLIDER id="s3" color="teal" minimum="0" maximum="100" value="20,60" width="300" range="true"/>
    </CENTER>
</FML>

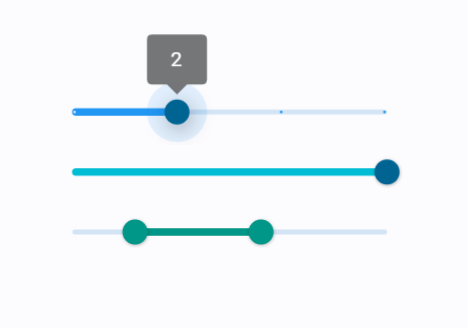

(img. a)

Slider Example

logo See it in Action

Other Widgets You May Find Useful:

Framework Markup Language is an open source programming language created by AppDaddy Software Solutions Inc. FML and is licensed under a fair source license agreement and is maintained by a community of developers.
