<MAP/> : <BOX/>
The <MAP/> widget is used to display a map. It is based off of 'leaflet.js'.
| Name | Type | Default | Description | Req |
|---|---|---|---|---|
| zoom | int | 16 | The initial zoom level of the map view: 1 - 20. | |
| height | int | max | The height of the map window. Default sized to fit available space. | |
| width | int | max | The width of the map window. Default sized to fit available space. | |
| latitude | int | null | The starting center point latitude of the map | |
| longitude | int | null | The starting center point longitude of the map |
<MAP id="MAP-1" zoom="5" latitude="34.478900" longitude="-70.232740">
<LAYER url="https://tile.openstreetmap.org/{z}/{x}/{y}.png"/>
<LAYER url="https://api.mapbox.com/v4/mapbox.satellite/{z}/{x}/{y}@2x.jpg90?access_token=<your mapbox api token here>"/>
<GPS id="gps" autoquery="15"/>
<GET id="boats" autoquery="15">
<url><![CDATA[https://fml.dev/assets/templates/examples/data/boats.xml]]></url>
</GET>
<GET id="planes" autoquery="30">
<url><![CDATA[https://fml.dev/assets/templates/examples/data/planes.xml]]></url>
</GET>
<MARKER data="planes" latitude="{data.latitude}" longitude="{data.longitude}">
<TOOLTIP label="({data.latitude},{data.longitude})">
<ICON icon="airplanemode_active" color="{data.color}" rotation="{data.heading}"/>
</TOOLTIP>
</MARKER>
<MARKER data="boats" width="35" height="35" latitude="{data.latitude}" longitude="{data.longitude}">
<TOOLTIP label="({data.latitude},{data.longitude})">
<ICON icon="directions_boat_rounded" color="blue" rotation="{data.heading}"/>
</TOOLTIP>
<TEXT value="hello"/>
</MARKER>
<MARKER data="gps" latitude="{data.latitude}" longitude="{data.longitude}">
<ICON icon="gps_fixed" color="yellow"/>
</MARKER>

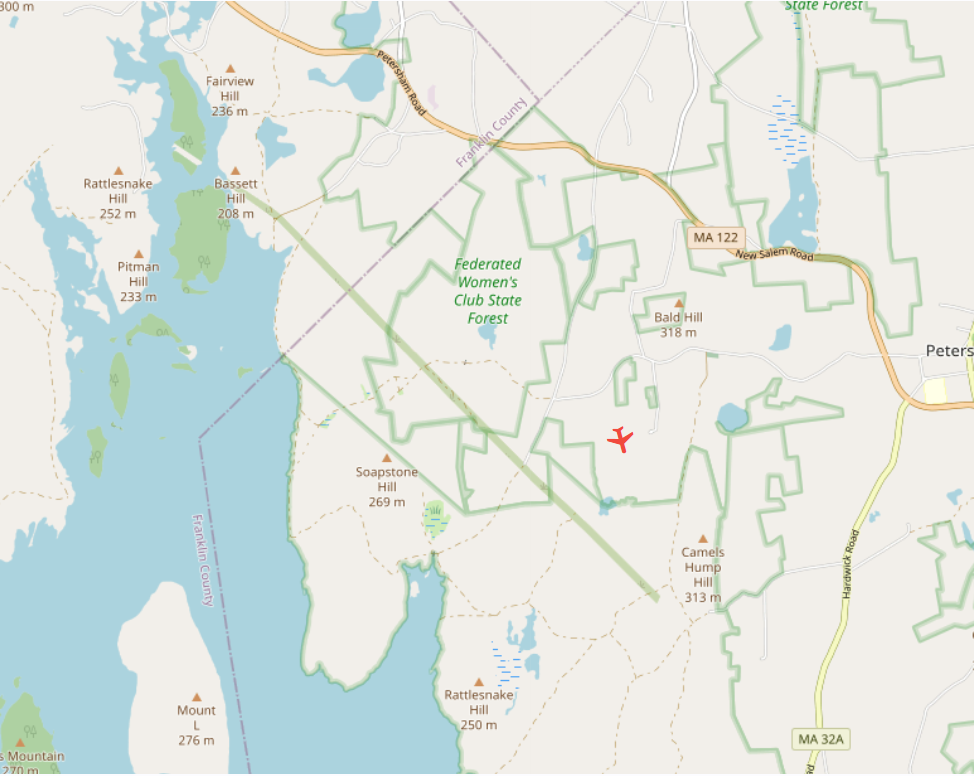

</MAP>An XML example with the initial camera position set to the users GPS location, and two data driven MARKER points.
