iOS 性能优化之图片 - AlvinSunny/OC-TheUnderlying GitHub Wiki

 self.headImageView.image = [UIImage imageWithContentsOfFile:@"headicon.png"];

CGContextRef CGBitmapContextCreate(
void * data, //这块内存用于存储被绘制的图形，这块内存的size最小不能小于bytesPerRow*height（图形每行的字节数乘以图形的高度），传递NULL意味着由这个函数来管理图形的内存，这可以减少内存泄漏的问题；
size_t width, //图形的width
size_t height,//图形的height
size_t bitsPerComponent, //像素的每个颜色分量使用的 bit 数，在 RGB 颜色空间下指定 8 即可
size_t bytesPerRow,//位图的每一行使用的字节数，大小至少为 width * bytes per pixel 字节。有意思的是，当我们指定 0 时，系统不仅会为我们自动计算，而且还会进行 cache line alignment 的优化
CGColorSpaceRef  _Nullable space, //就是我们前面提到的颜色空间，一般使用 RGB 即可；
uint32_t bitmapInfo//是一个枚举，
)

 dispatch_async(dispatch_get_global_queue(DISPATCH_QUEUE_PRIORITY_LOW, 0), ^{
      NSString *imagePath = self.imagePaths;
      UIImage *image = [UIImage imageWithContentsOfFile:imagePath];
      UIGraphicsBeginImageContextWithOptions(imageView.bounds.size, YES, 0);
      [image drawInRect:imageView.bounds];
      image = UIGraphicsGetImageFromCurrentImageContext();
      UIGraphicsEndImageContext();
      dispatch_async(dispatch_get_main_queue(), ^{
      });
  });

+ (UIImage *)decodedImageWithImage:(UIImage *)image {
    if (![self shouldDecodeImage:image]) {
        return image;
    }

    CGImageRef imageRef = [self CGImageCreateDecoded:image.CGImage];
    if (!imageRef) {
        return image;
    }
    UIImage *decodedImage = [[UIImage alloc] initWithCGImage:imageRef scale:image.scale orientation:image.imageOrientation];
    CGImageRelease(imageRef);
    SDImageCopyAssociatedObject(image, decodedImage);
    decodedImage.sd_isDecoded = YES;
    return decodedImage;
}

+ (UIImage *)decodedAndScaledDownImageWithImage:(UIImage *)image limitBytes:(NSUInteger)bytes {
    if (![self shouldDecodeImage:image]) {
        return image;
    }

    if (![self shouldScaleDownImage:image limitBytes:bytes]) {
        return [self decodedImageWithImage:image];
    }

    CGFloat destTotalPixels;
    CGFloat tileTotalPixels;
    if (bytes == 0) {
        bytes = kDestImageLimitBytes;
    }
    destTotalPixels = bytes / kBytesPerPixel;
    tileTotalPixels = destTotalPixels / 3;
    CGContextRef destContext;

    // autorelease the bitmap context and all vars to help system to free memory when there are memory warning.
    // on iOS7, do not forget to call [[SDImageCache sharedImageCache] clearMemory];
    @autoreleasepool {
        CGImageRef sourceImageRef = image.CGImage;

        CGSize sourceResolution = CGSizeZero;
        sourceResolution.width = CGImageGetWidth(sourceImageRef);
        sourceResolution.height = CGImageGetHeight(sourceImageRef);
        CGFloat sourceTotalPixels = sourceResolution.width * sourceResolution.height;
        // Determine the scale ratio to apply to the input image
        // that results in an output image of the defined size.
        // see kDestImageSizeMB, and how it relates to destTotalPixels.
        CGFloat imageScale = sqrt(destTotalPixels / sourceTotalPixels);
        CGSize destResolution = CGSizeZero;
        destResolution.width = MAX(1, (int)(sourceResolution.width * imageScale));
        destResolution.height = MAX(1, (int)(sourceResolution.height * imageScale));

        // device color space
        CGColorSpaceRef colorspaceRef = [self colorSpaceGetDeviceRGB];
        BOOL hasAlpha = [self CGImageContainsAlpha:sourceImageRef];
        // iOS display alpha info (BGRA8888/BGRX8888)
        CGBitmapInfo bitmapInfo = kCGBitmapByteOrder32Host;
        bitmapInfo |= hasAlpha ? kCGImageAlphaPremultipliedFirst : kCGImageAlphaNoneSkipFirst;

        // kCGImageAlphaNone is not supported in CGBitmapContextCreate.
        // Since the original image here has no alpha info, use kCGImageAlphaNoneSkipFirst
        // to create bitmap graphics contexts without alpha info.
        destContext = CGBitmapContextCreate(NULL,
                                            destResolution.width,
                                            destResolution.height,
                                            kBitsPerComponent,
                                            0,
                                            colorspaceRef,
                                            bitmapInfo);

        if (destContext == NULL) {
            return image;
        }
        CGContextSetInterpolationQuality(destContext, kCGInterpolationHigh);

        // Now define the size of the rectangle to be used for the
        // incremental bits from the input image to the output image.
        // we use a source tile width equal to the width of the source
        // image due to the way that iOS retrieves image data from disk.
        // iOS must decode an image from disk in full width 'bands', even
        // if current graphics context is clipped to a subrect within that
        // band. Therefore we fully utilize all of the pixel data that results
        // from a decoding operation by anchoring our tile size to the full
        // width of the input image.
        CGRect sourceTile = CGRectZero;
        sourceTile.size.width = sourceResolution.width;
        // The source tile height is dynamic. Since we specified the size
        // of the source tile in MB, see how many rows of pixels high it
        // can be given the input image width.
        sourceTile.size.height = MAX(1, (int)(tileTotalPixels / sourceTile.size.width));
        sourceTile.origin.x = 0.0f;
        // The output tile is the same proportions as the input tile, but
        // scaled to image scale.
        CGRect destTile;
        destTile.size.width = destResolution.width;
        destTile.size.height = sourceTile.size.height * imageScale;
        destTile.origin.x = 0.0f;
        // The source seem overlap is proportionate to the destination seem overlap.
        // this is the amount of pixels to overlap each tile as we assemble the output image.
        float sourceSeemOverlap = (int)((kDestSeemOverlap/destResolution.height)*sourceResolution.height);
        CGImageRef sourceTileImageRef;
        // calculate the number of read/write operations required to assemble the
        // output image.
        int iterations = (int)( sourceResolution.height / sourceTile.size.height );
        // If tile height doesn't divide the image height evenly, add another iteration
        // to account for the remaining pixels.
        int remainder = (int)sourceResolution.height % (int)sourceTile.size.height;
        if(remainder) {
            iterations++;
        }
        // Add seem overlaps to the tiles, but save the original tile height for y coordinate calculations.
        float sourceTileHeightMinusOverlap = sourceTile.size.height;
        sourceTile.size.height += sourceSeemOverlap;
        destTile.size.height += kDestSeemOverlap;
        for( int y = 0; y < iterations; ++y ) {
            @autoreleasepool {
                sourceTile.origin.y = y * sourceTileHeightMinusOverlap + sourceSeemOverlap;
                destTile.origin.y = destResolution.height - (( y + 1 ) * sourceTileHeightMinusOverlap * imageScale + kDestSeemOverlap);
                sourceTileImageRef = CGImageCreateWithImageInRect( sourceImageRef, sourceTile );
                if( y == iterations - 1 && remainder ) {
                    float dify = destTile.size.height;
                    destTile.size.height = CGImageGetHeight( sourceTileImageRef ) * imageScale;
                    dify -= destTile.size.height;
                    destTile.origin.y += dify;
                }
                CGContextDrawImage( destContext, destTile, sourceTileImageRef );
                CGImageRelease( sourceTileImageRef );
            }
        }

        CGImageRef destImageRef = CGBitmapContextCreateImage(destContext);
        CGContextRelease(destContext);
        if (destImageRef == NULL) {
            return image;
        }
#if SD_MAC
        UIImage *destImage = [[UIImage alloc] initWithCGImage:destImageRef scale:image.scale orientation:kCGImagePropertyOrientationUp];
#else
        UIImage *destImage = [[UIImage alloc] initWithCGImage:destImageRef scale:image.scale orientation:image.imageOrientation];
#endif
        CGImageRelease(destImageRef);
        if (destImage == nil) {
            return image;
        }
        SDImageCopyAssociatedObject(image, destImage);
        destImage.sd_isDecoded = YES;
        return destImage;
    }
}

+ (UIImage *)downSamplingWithScale:(CGFloat)scale
                            imgUrl:(NSURL *)imgURL
                        targetSize:(CGSize)targetSize {

    //避免下次产生缩略图时大小不同，但被缓存了，取出来是缓存图片
    //所以要把kCGImageSourceShouldCache设为false
    CFStringRef key[1];
    key[0] = kCGImageSourceShouldCache;
    CFTypeRef value[1];
    value[0] = (CFTypeRef)kCFBooleanFalse;

    CFDictionaryRef imageSourceOption = CFDictionaryCreate(NULL,
                                                           (const void **) key,
                                                           (const void **) value,
                                                           1,
                                                           &kCFTypeDictionaryKeyCallBacks,
                                                           &kCFTypeDictionaryValueCallBacks);
    CGImageSourceRef imageSource = CGImageSourceCreateWithURL((__bridge CFURLRef)imgURL, imageSourceOption);

    CFMutableDictionaryRef mutOption = CFDictionaryCreateMutable(NULL,
                                                                 4,
                                                                 &kCFTypeDictionaryKeyCallBacks,
                                                                 &kCFTypeDictionaryValueCallBacks);


    CGFloat maxDimension = MAX(targetSize.width, targetSize.height) * scale;
    NSNumber *maxDimensionNum = [NSNumber numberWithFloat:maxDimension];

    // · kCGImageSourceCreateThumbnailFromImageAlways
    //这个选项控制是否生成缩略图（没有设为true的话 kCGImageSourceThumbnailMaxPixelSize 以及 CGImageSourceCreateThumbnailAtIndex不会起作用）默认为false，所以需要设置为true
    CFDictionaryAddValue(mutOption, kCGImageSourceCreateThumbnailFromImageAlways, kCFBooleanTrue);//

    // · kCGImageSourceShouldCacheImmediately
    // 是否在创建图片时就进行解码（当然要这么做，避免在渲染时解码占用cpu）并缓存，
    /* Specifies whether image decoding and caching should happen at image creation time.
    * The value of this key must be a CFBooleanRef. The default value is kCFBooleanFalse (image decoding will
    * happen at rendering time). //默认为不缓存，在图片渲染时进行图片解码
    */
    CFDictionaryAddValue(mutOption, kCGImageSourceShouldCacheImmediately, kCFBooleanTrue);

    // · kCGImageSourceCreateThumbnailWithTransform
    //指定是否应根据完整图像的方向和像素纵横比旋转和缩放缩略图
    /* Specifies whether the thumbnail should be rotated and scaled according
     * to the orientation and pixel aspect ratio of the full image.（默认为false
     */
    //要设为true，因为我们要缩小他！
    CFDictionaryAddValue(mutOption, kCGImageSourceCreateThumbnailWithTransform, kCFBooleanTrue);


    // · kCGImageSourceThumbnailMaxPixelSize
    /* Specifies the maximum width and height in pixels of a thumbnail.  If
     * this this key is not specified, the width and height of a thumbnail is
     * not limited and thumbnails may be as big as the image itself.  If
     * present, this value of this key must be a CFNumberRef. */
    //指定缩略图的宽

    CFDictionaryAddValue(mutOption, kCGImageSourceThumbnailMaxPixelSize, (__bridge CFNumberRef)maxDimensionNum);

    CFDictionaryRef dowsamplingOption = CFDictionaryCreateCopy(NULL, mutOption);


    //生成缩略图
    CGImageRef rf = CGImageSourceCreateThumbnailAtIndex(imageSource, 0, dowsamplingOption);
    //用UIImage把他装起来，返回
    UIImage *img = [UIImage imageWithCGImage:rf];
    return img;
}

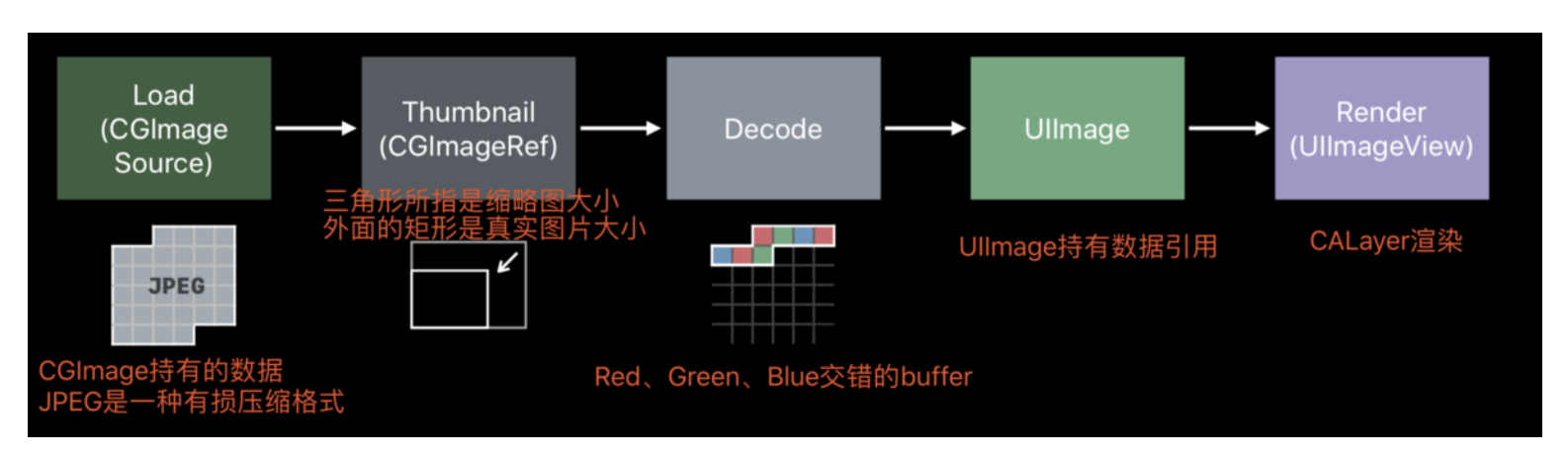

func downsample(imageAt imageURL: URL, to pointSize: CGSize, scale: CGFloat) -> UIImage {
    let imageSourceOptions = [kCGImageSourceShouldCache: false] as CFDictionary
    let imageSource = CGImageSourceCreateWithURL(imageURL as CFURL, imageSourceOptions)!
    let maxDimensionInPixels = max(pointSize.width, pointSize.height) * scale
    let downsampleOptions = [kCGImageSourceCreateThumbnailFromImageAlways: true,
    kCGImageSourceShouldCacheImmediately: true,
    kCGImageSourceCreateThumbnailWithTransform: true,
    kCGImageSourceThumbnailMaxPixelSize: maxDimensionInPixels] as CFDictionary
    let downsampledImage = CGImageSourceCreateThumbnailAtIndex(imageSource, 0, downsampleOptions)!
    return UIImage(cgImage: downsampledImage)
}

@protocol UITableViewDataSourcePrefetching <NSObject>

@required

// indexPaths are ordered ascending by geometric distance from the table view
- (void)tableView:(UITableView *)tableView prefetchRowsAtIndexPaths:(NSArray<NSIndexPath *> *)indexPaths;

@optional

// indexPaths that previously were considered as candidates for pre-fetching, but were not actually used; may be a subset of the previous call to -tableView:prefetchRowsAtIndexPaths:
- (void)tableView:(UITableView *)tableView cancelPrefetchingForRowsAtIndexPaths:(NSArray<NSIndexPath *> *)indexPaths;

@end

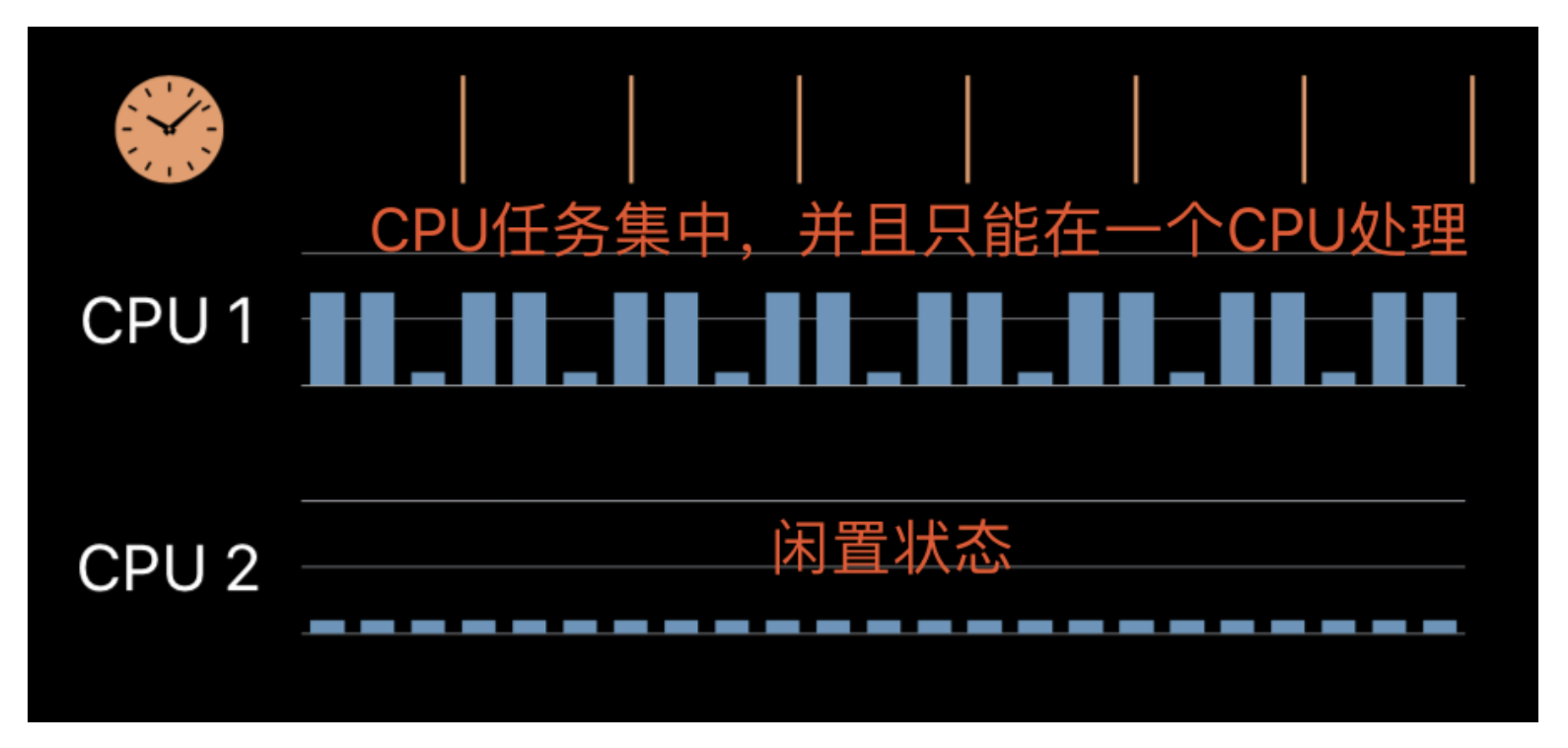

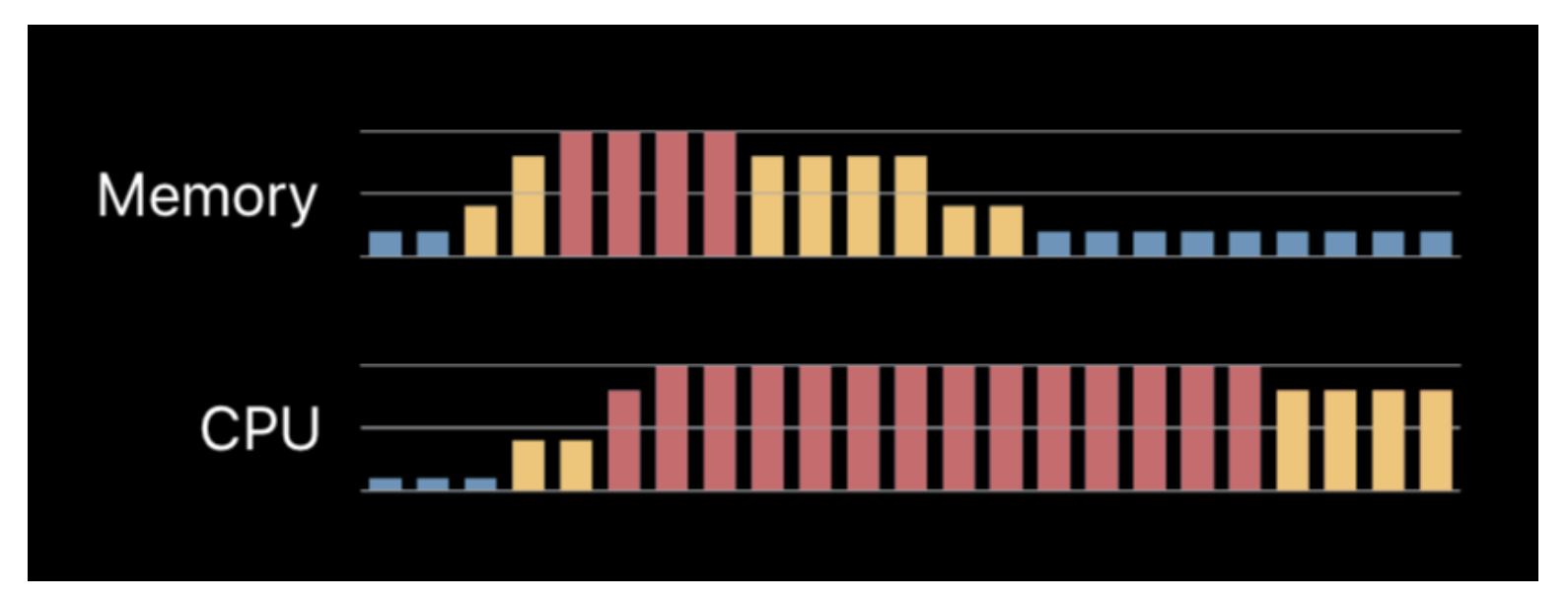

Thread Explosion（线程爆炸）
More images to decode than available CPUs（解码图像数量大于CPU数量）
GCD continues creating threads as new work is enqueued（GCD创建新线程处理新的任务）
Each thread gets less time to actually decode images（每个线程获得很少的时间解码图像）

- (void)sd_setImageWithURL:(nullable NSURL *)url
          placeholderImage:(nullable UIImage *)placeholder
                targetSize:(CGSize)targetSize
                   options:(SDWebImageOptions)options
                  progress:(nullable SDImageLoaderProgressBlock)progressBlock
                 completed:(nullable SDExternalCompletionBlock)completedBlock {

    NSString *imageUrl = url.absoluteString;
    if (!imageUrl.length) {
        return;
    }

    NSString *targetImageUrl = [UIImageView sd_targetImageUrlWithImageUrl:imageUrl targetSize:targetSize];
    BOOL isCachedTargetImage = [UIImageView sd_isCachedImageWithImageUrl:imageUrl targetSize:targetSize];
    if (isCachedTargetImage) {
        [self sd_setImageWithURL:[NSURL URLWithString:targetImageUrl] placeholderImage:placeholder options:options progress:progressBlock completed:completedBlock];
    } else {
        [self sd_setImageWithURL:url placeholderImage:placeholder options:options | SDWebImageAvoidAutoSetImage | SDWebImageAvoidDecodeImage progress:nil completed:^(UIImage * _Nullable image, NSError * _Nullable error, SDImageCacheType cacheType, NSURL * _Nullable imageURL) {

            if ([UIImageView sd_isNormalImageWithImageUrl:imageUrl]) {
                dispatch_async(dispatch_get_global_queue(DISPATCH_QUEUE_PRIORITY_DEFAULT, 0), ^{
                    NSString *imagePath = [[SDImageCache sharedImageCache].diskCache cachePathForKey:url.absoluteString];
                    CGSize imageSize = [UIImage imageSizeWidthTargetWidth:targetSize.width originalSize:image.size];
                    UIImage *targetImage = [UIImage downSamplingWithScale:[UIScreen mainScreen].scale imgUrl:[NSURL fileURLWithPath:imagePath] targetSize:imageSize];
                    [[SDImageCache sharedImageCache] storeImage:targetImage forKey:targetImageUrl completion:^{
                        [self sd_setImageWithURL:[NSURL URLWithString:targetImageUrl] placeholderImage:placeholder options:options progress:progressBlock completed:completedBlock];
                    }];
                });

            } else if([UIImageView sd_isGifImageWithImageUrl:imageUrl]) {
                dispatch_async(dispatch_get_global_queue(DISPATCH_QUEUE_PRIORITY_DEFAULT, 0), ^{
                    NSArray<SDImageFrame *> *animatedImageFrameArray = [SDImageCoderHelper framesFromAnimatedImage:image];
                    NSMutableArray<SDImageFrame *> *tmpThumbImageFrameMarray = [NSMutableArray array];
                    [animatedImageFrameArray enumerateObjectsUsingBlock:^(SDImageFrame * _Nonnull obj, NSUInteger idx, BOOL * _Nonnull stop) {
                        CGSize imageSize = [UIImage imageSizeWidthTargetWidth:targetSize.width originalSize:obj.image.size];
                        NSData *imgData = UIImageJPEGRepresentation(obj.image , 0.75);
                        UIImage *targetImage = [UIImage downSamplingWithScale:[UIScreen mainScreen].scale imgData:imgData targetSize:imageSize];
                        SDImageFrame *thumbFrame = [SDImageFrame frameWithImage:targetImage duration:obj.duration];
                        [tmpThumbImageFrameMarray addObject:thumbFrame];
                    }];

                   UIImage *thumbAnimatedImage = [SDImageCoderHelper animatedImageWithFrames:tmpThumbImageFrameMarray];
                    [[SDImageCache sharedImageCache] storeImage:thumbAnimatedImage forKey:targetImageUrl completion:^{
                        [self sd_setImageWithURL:[NSURL URLWithString:targetImageUrl] placeholderImage:placeholder options:options progress:progressBlock completed:completedBlock];
                    }];
                });
            } else {
                [self sd_setImageWithURL:url placeholderImage:placeholder options:options progress:progressBlock completed:completedBlock];
            }
        }];
    }
}
