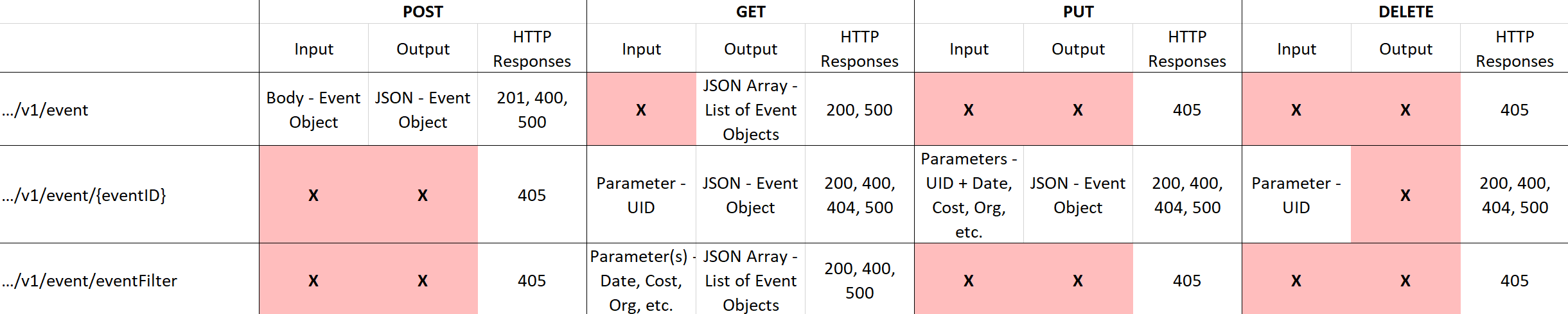

This is the EP Diagram for the API of the ActoKids project.

.../v1/event

POST:

• Success returns the event object - HTTP 201
• Missing requirement in the event object - HTTP 400
• Failure to connect to the database - HTTP 500
• Failure to save the event in the database - HTTP 500

GET:

• Success returns a list of event objects - HTTP 200
• If the event doesn't exist - HTTP 404
• Failure to connect to the database - HTTP 500

PUT:

• Operation not supported - HTTP 405

DELETE:

• Operation not supported - HTTP 405

.../v1/event/{eventID}

POST:

• Operation not supported - HTTP 405

GET:

• Success returns an event object - HTTP 200
• Invalid eventID - HTTP 400
• Event not found - HTTP 404
• Failure to connect to the database - HTTP 500

PUT:

• Success returns an event object - HTTP 200
• Invalid eventID or parameter(s) - HTTP 400
• Event not found - HTTP 404
• Failure to connect to the database - HTTP 500
• Failure to save the event in the database - HTTP 500

DELETE:

• Successful deletion; No object returned - HTTP 200
• Invalid eventID - HTTP 400
• Event not found - HTTP 404
• Failure to connect to the database - HTTP 500

.../v1/event/eventFilter

POST:

• Operation not supported - HTTP 405

GET:

• Success returns a list of event objects - HTTP 200
• Invalid parameter(s) - HTTP 400
• Failure to connect to the database - HTTP 500

PUT:

• Operation not supported - HTTP 405

DELETE:

• Operation not supported - HTTP 405

Event Object Definition

The event object is defined by the Data Model
