NUCLEO F429ZI Pin Map.

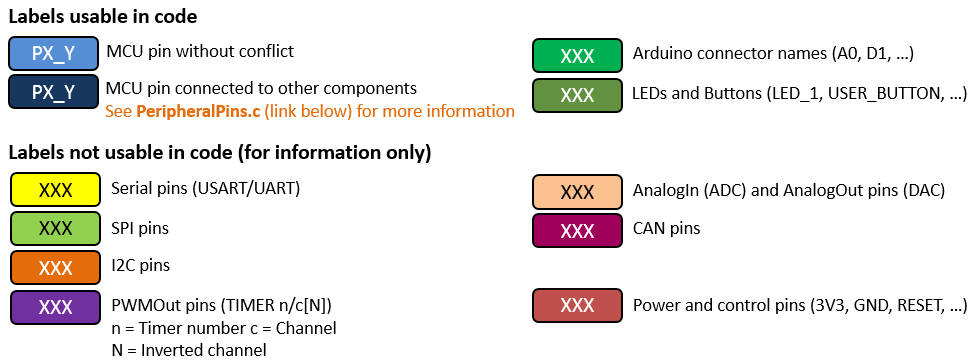

- Legend


  • You can find more details on the available pins and labels in the PeripheralPins.c and PinNames.h files.

  • These files can be found in: ARMmbed/mbed-os repository on GitHub (up-to-date version, used with mbed CLI commands) :: REPO

  • mbed-dev library in developer.mbed.org (source files of the mbed library used on mbed compiler IDE) :: URL

- Zio_Connector_Left

nucleo_f429zi_zio_left_2019_8_29

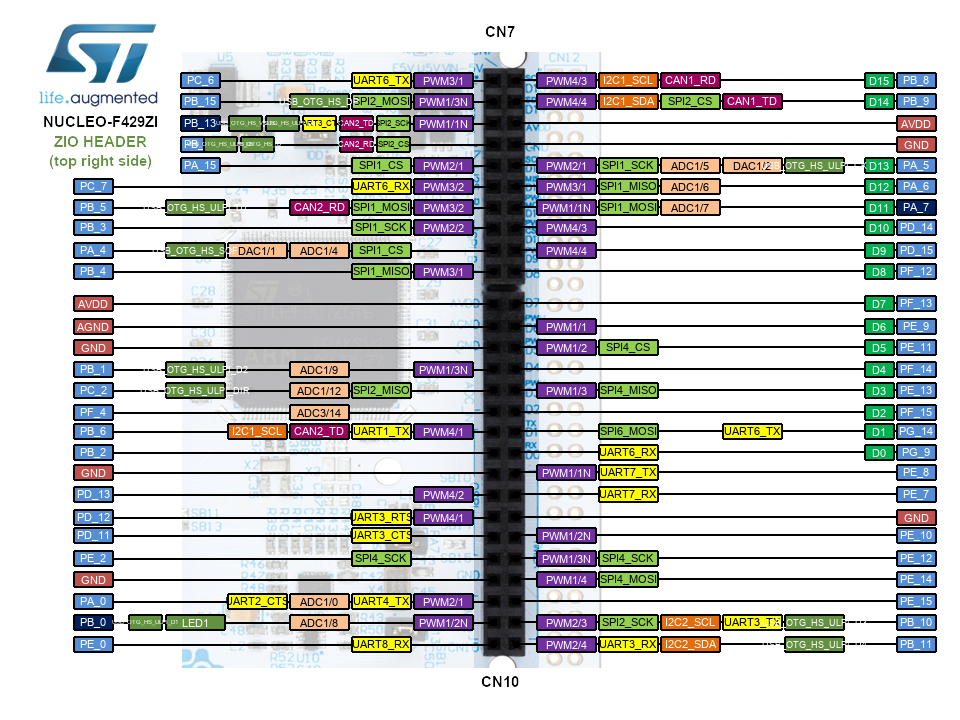

- Zio_Connector_Right

nucleo_f429zi_zio_right_2019_8_29

- Morpho_Header_Left

nucleo_f429zi_morpho_left_2019_8_29

- Morpho_Header_Right

nucleo_f429zi_morpho_right_2019_8_29
