introduction

  • An Automatic stamping machine is a machine to execute one or more tasks automatically with speed and precision. There are as many different types of robots as there are tasks for them to perform.

  • This kind of machine reduces power and makes work easier.

  • An automatic stamping machine is a kind of robot which is very useful for the users(clients)which helps in reduce the work.

  • It helps Humans also to save time and resources.

importance of automatic stamping machine

the stamping machine mainly reduces the manpower to large extant in industries .even for small scale drug industries, it allows the easy handling without the content of hand on stamping instrument. it makes our hand far from ink content. the stamp would be correctly stamped without any mistakes.

source of information

The information regarding the source is collected by the following source:

  • Internet
  • Subject experts
  • Youtube
  • journals
  • Wikipedia

About The Project

  • In the Automatic Stamping machine the bottles are moved automatically using a different mechanism like a conveyor belt. Through which the bottles move towards the stamp. And also there is a linear motion while stamping on the bottle. The machine senses the bottle and then stamps it on the bottle. It also alerts the user by giving an alert sound. It displays the total number of bottles that are stamped

Existing solution

  • Automatic Stamping Machine Using PCB 1

https://youtu.be/ZdLs4QHct60

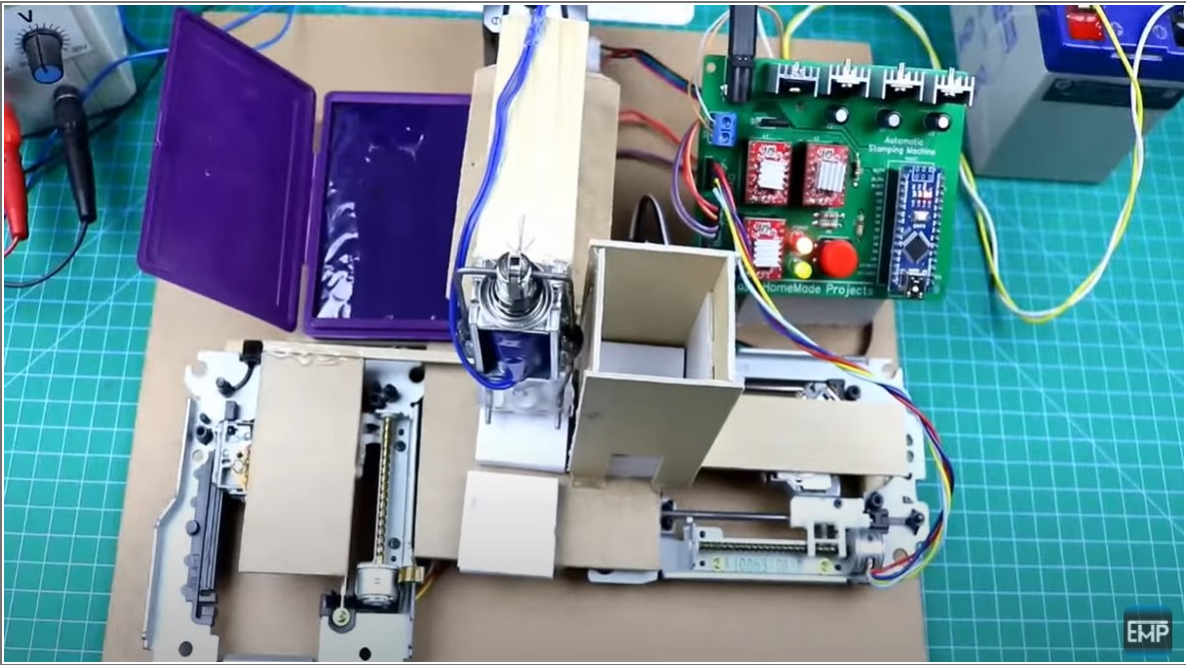

In the above image, the printed circuit board is used to control the whole stamping machine. He used DVD drives to move the product and stepper motors to move and rotate the stamp. The stamp first loads the ink on it and rotates about 90 degrees and stamps on a solid cardboard piece. And also, it stops automatically when all the products are stamped.

  • Automatic Stamping labeling Machine Using PLC 2

https://nevonprojects.com/ automatic-stamping-labelling-machine-using-plc/

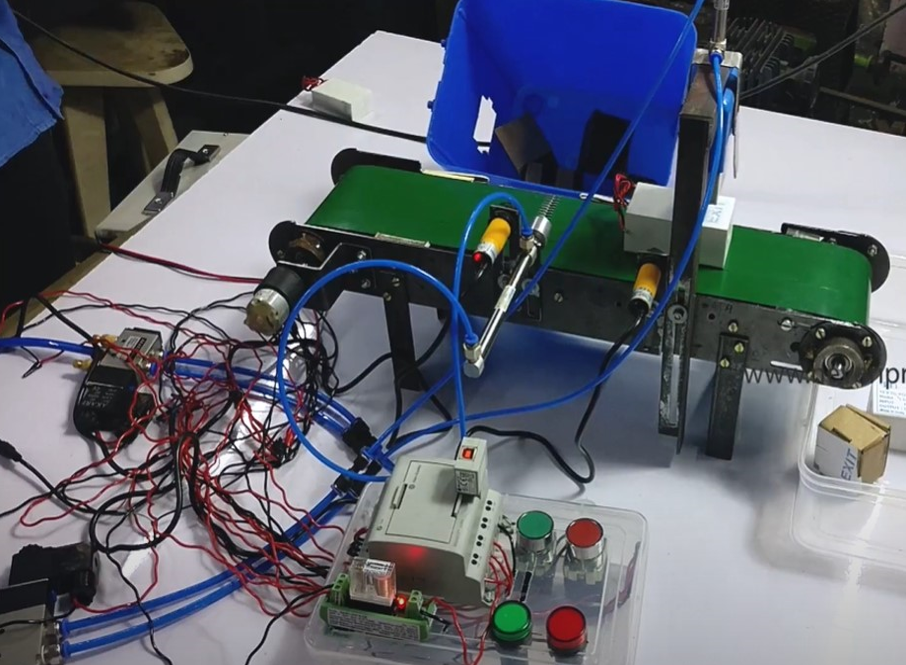

In the above-mentioned image, the PLC board is used to control the machine. This machine first senses the good and damaged product and then pushes the damaged product then moves the product through a conveyor belt. Then the hydraulic stamping system stamps on the product and then moves the product forward.

information gathered

Sl.No. Components/Part uses Mechanism and principle identified Links Picture
1. Arduino mega The Arduino Mega is a microcontroller board based on the ATmega1280 (datasheet). It has 54 digital input/output pins (of which 14 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller https://www.arduino.cc/en/pmwiki.php?n=Main/ArduinoBoardMega arduino mega
2. Dc motor When a current-carrying conductor is placed in a magnetic field, it experiences a torque and tends to move. An electrical machine that converts electrical energy into mechanical chassis. https://www.electrical4u.com/dc-motor-or-direct-current-motor/ dc motor
3. IR sensor The module consists of an IR LED and a photosensor (phototransistor) pair. The light emitted by the IR LED gets reflected by any object placed in front of the sensor and this reflection is detected by the photosensor(phototransistor). Any white (or lighter) colored surface reflects more than a black (or darker) colored surface. https://store.arduino.cc/usa/grove-infrared-reflective-sensor-v1-2 IR sensor
4. Jumper wires These are long flexible jumpers wires of 150 mm with male connectors on the ends. They are perfect to use to make projects with your Arduinos and breadboard. https://store.arduino.cc/usa/10-jumper-wires-150mm-male jumper wire
5. Stepper motor A stepper motor is an electromechanical device it converts electrical power into mechanical power. Also, it is a brushless, synchronous electric motor that can divide a full rotation into an expansive number of steps. https://store.arduino.cc/usa/catalogsearch/result/?tab=store&q=stepper+motor stepper motor

Mechanism

Moving the bottle the conveyor belt or chain bottle movement or slide or roll the bottle mechanism. The product also involves sensors like IR sensor or Photoelectric sensor or Ultrasonic sensor. Pressing the stamp by By-gear Mechanism or By hydraulic movement or Mechanical arm for stamping. For display we can use two types of display they are L.C.D display or L.E.D display. For alerting we can use two types Ringing alarm or Blinking light. Finally, for moving the bottle we can use these types of Chain bottle movement or conveyor belt or Sliding/rolling movement of the bottle.
