4. FUNCTION TREE,CONCEPTUAL DESIGN AND PRODUCT ARCHITECTURE - A-Division-2020-2021-Odd/Repo07 GitHub Wiki

SL.NO LIST OF FUNCTIONS
01 Loosening the soil
02 Sensing the moisture
04 sprinkling/dispensing water
04 Sensing water level
05 Movement

FUNCTION TREE:

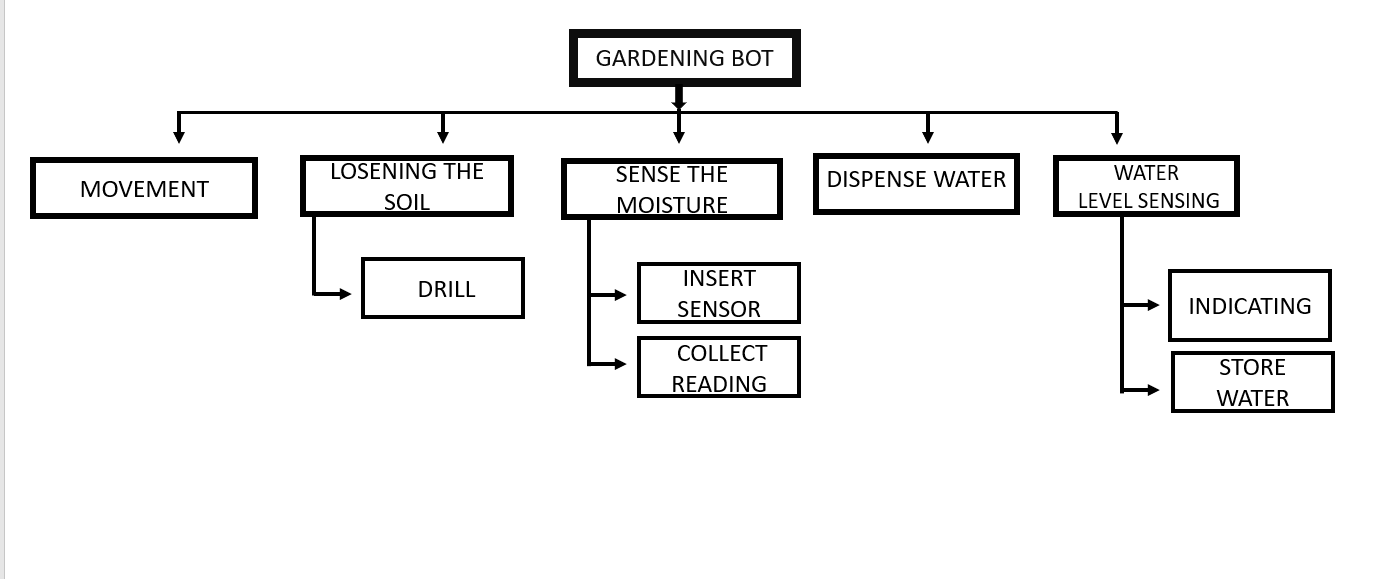

FUNCTION TREE - PowerPoint 03-02-2021 23_10_31 (2)

FUNCTION TREE CLUSTERING:

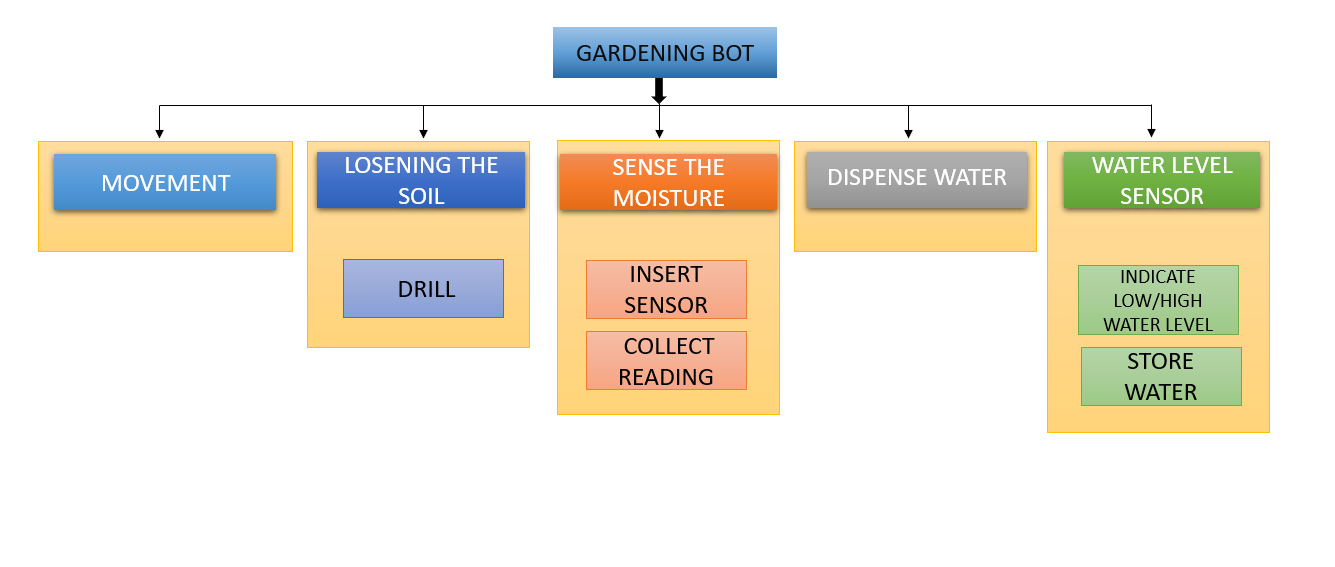

FUNCTION TREE - PowerPoint 03-02-2021 23_08_34 (2)

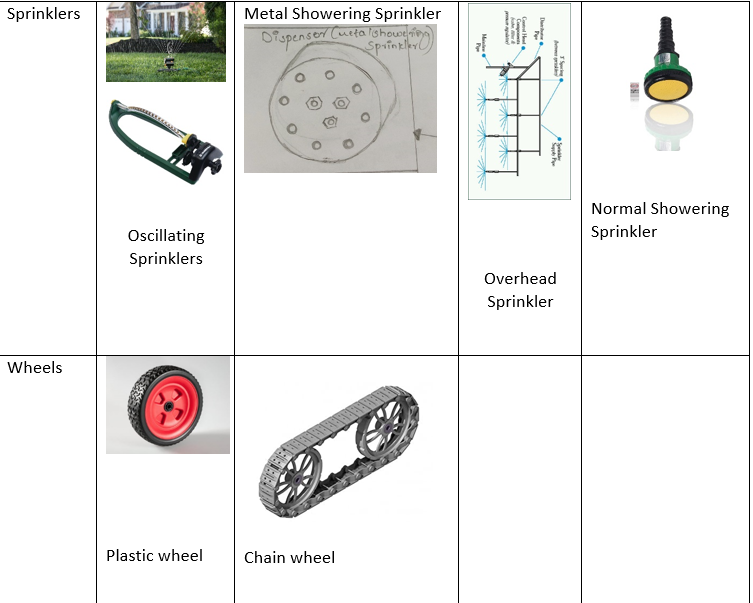

MORPHOLOGICAL CHART:

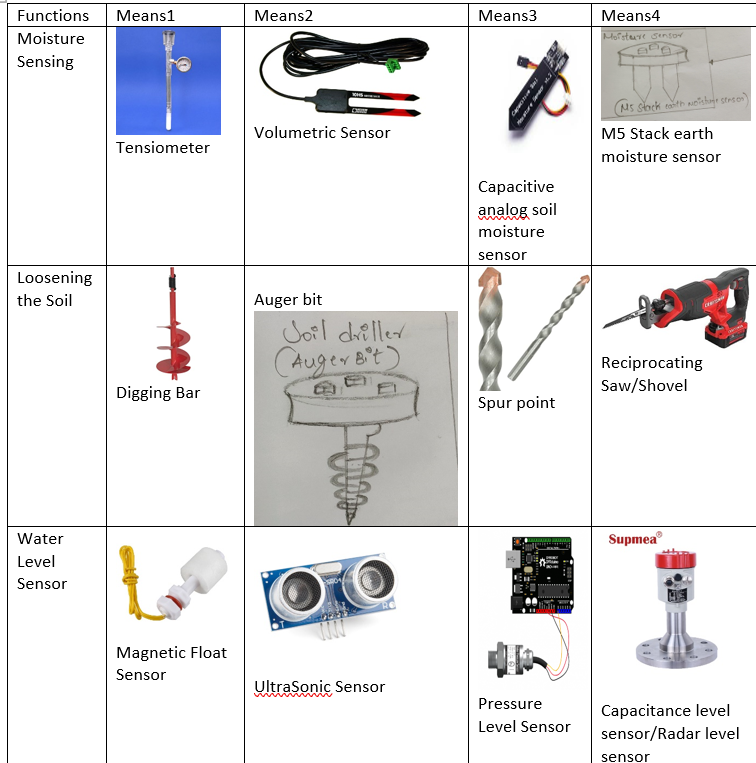

Final One - Word 01-02-2021 10_51_59 AM (2)

.

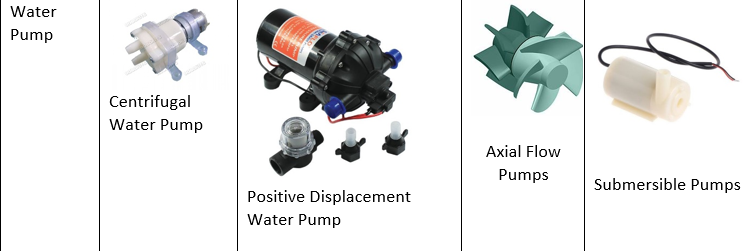

Final One - Word 01-02-2021 10_52_02 AM (2)

. Final One - Word 01-02-2021 10_52_07 AM (2)

CONCEPTUAL DESIGN:

CONCEPT-1

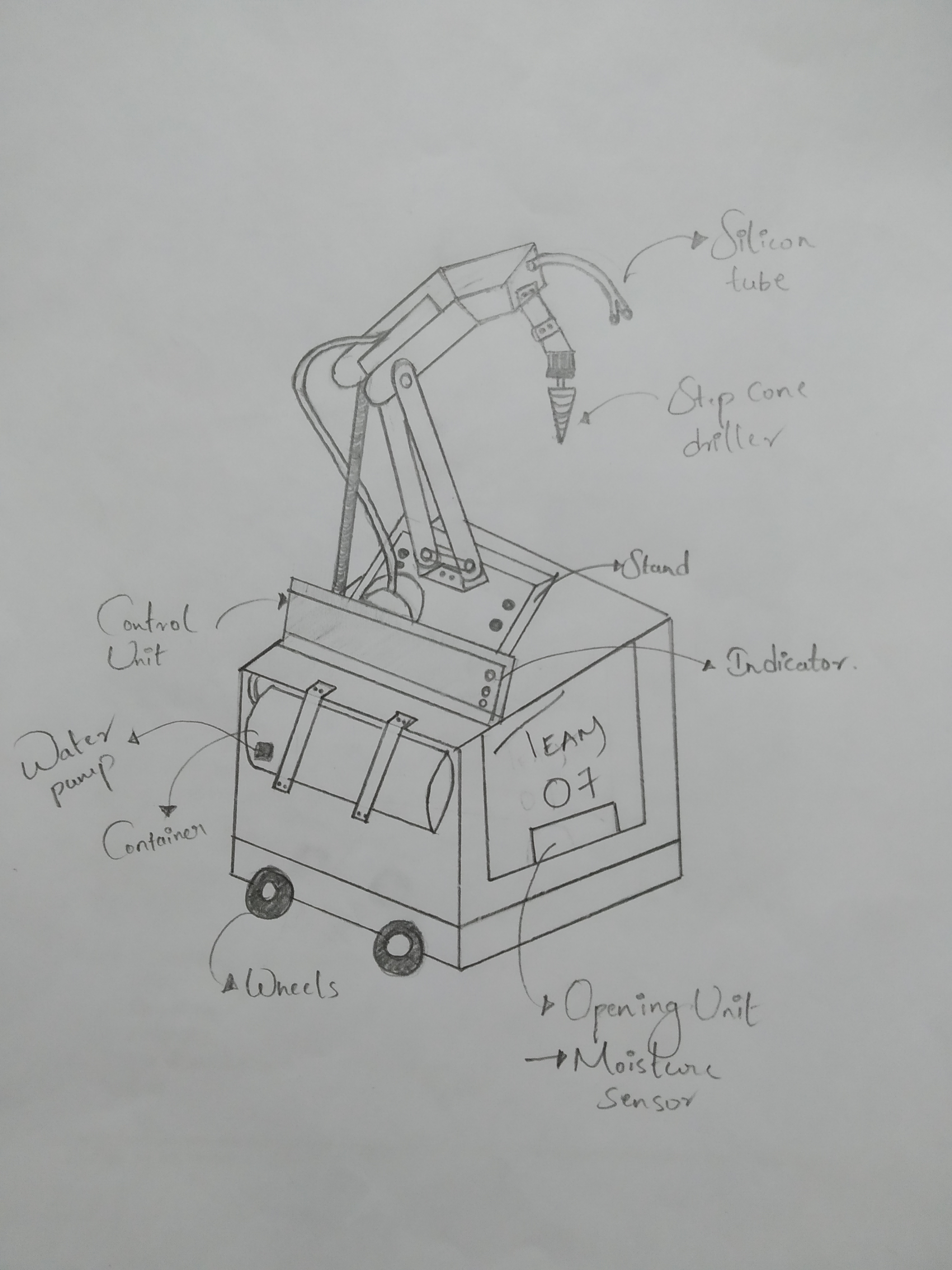

IMG_20210215_023030

CONCEPT-2

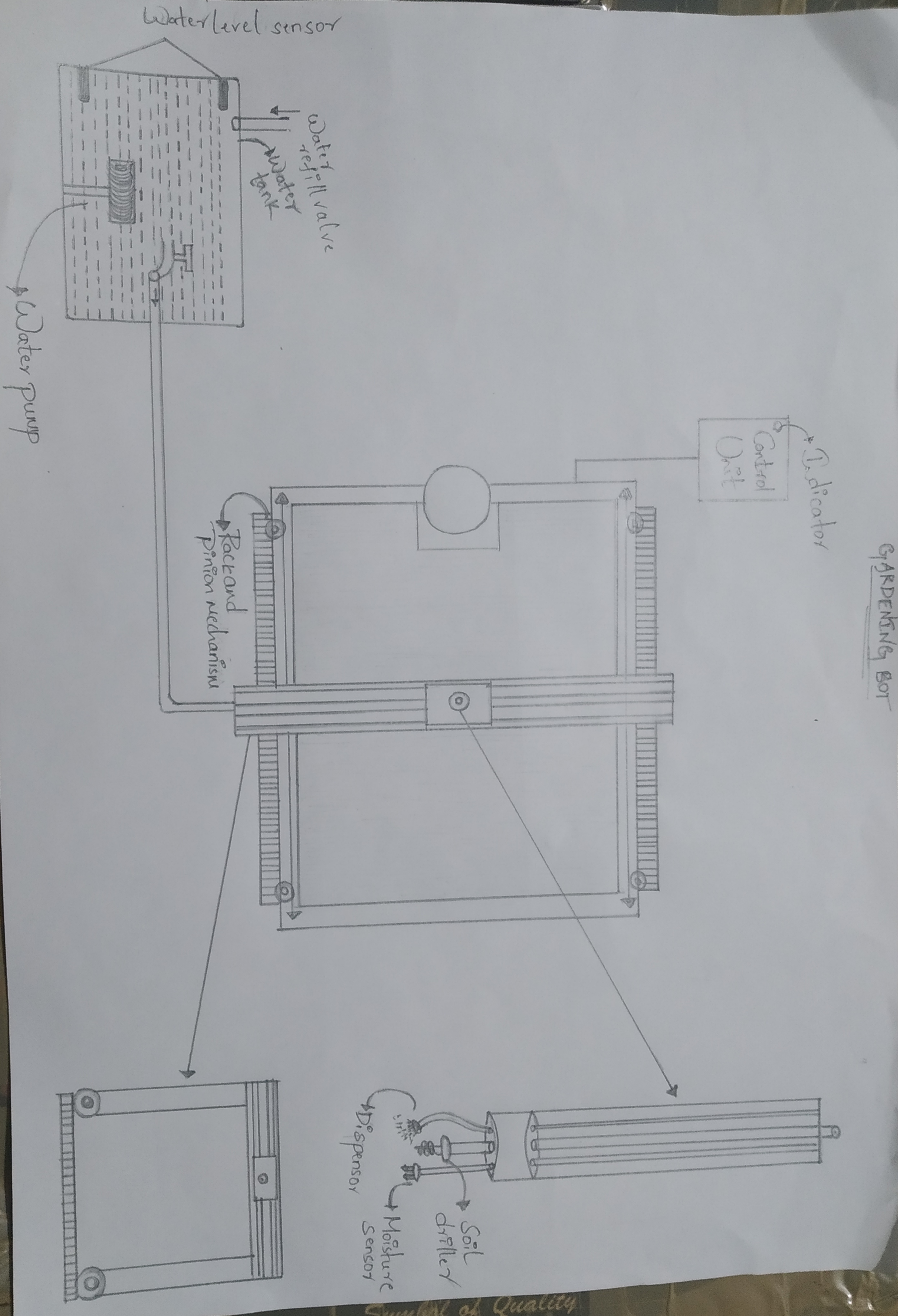

IMG_20210207_231003

CONCEPTS-3

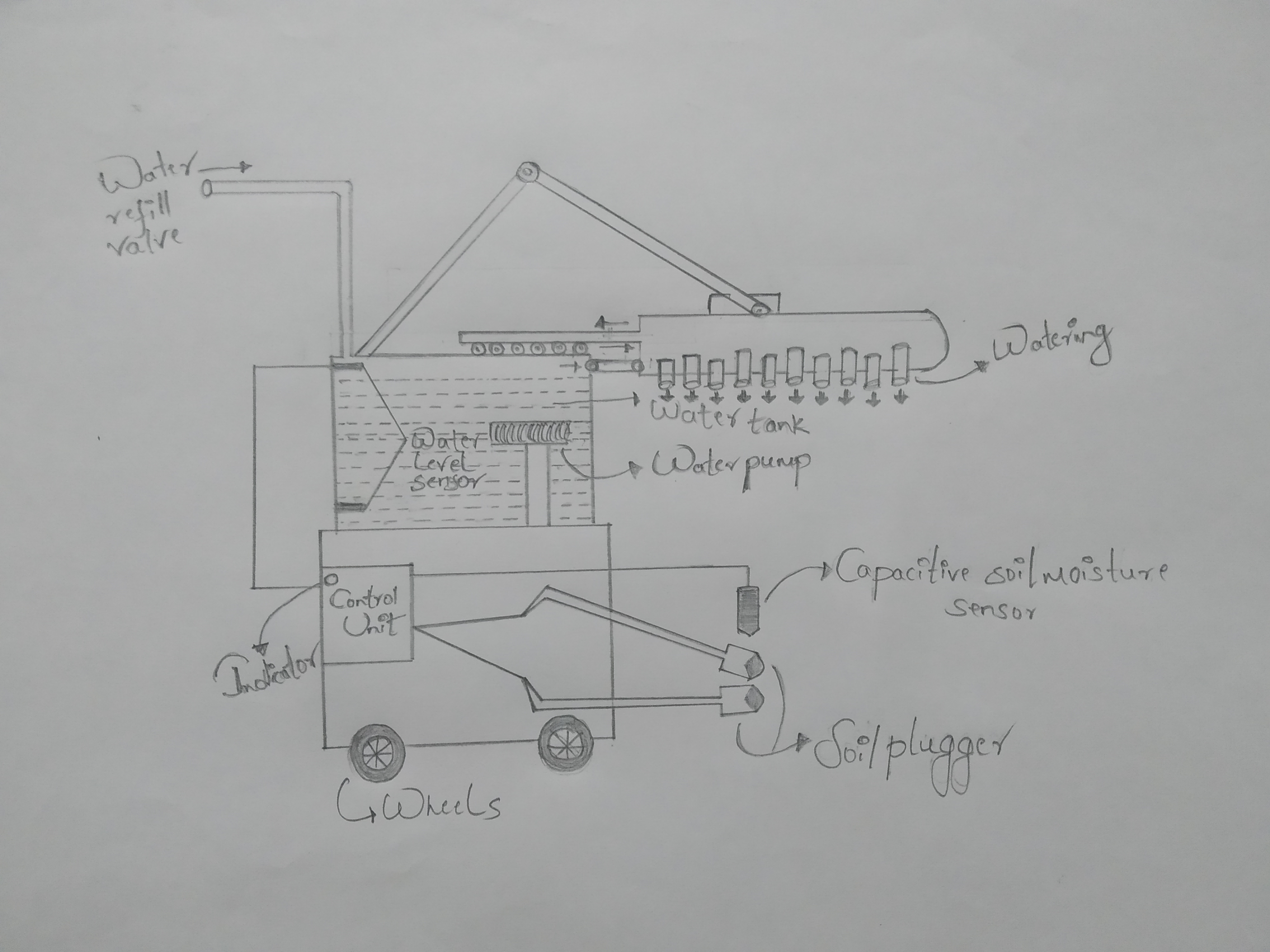

IMG_20210207_224333

CONCEPTS-4

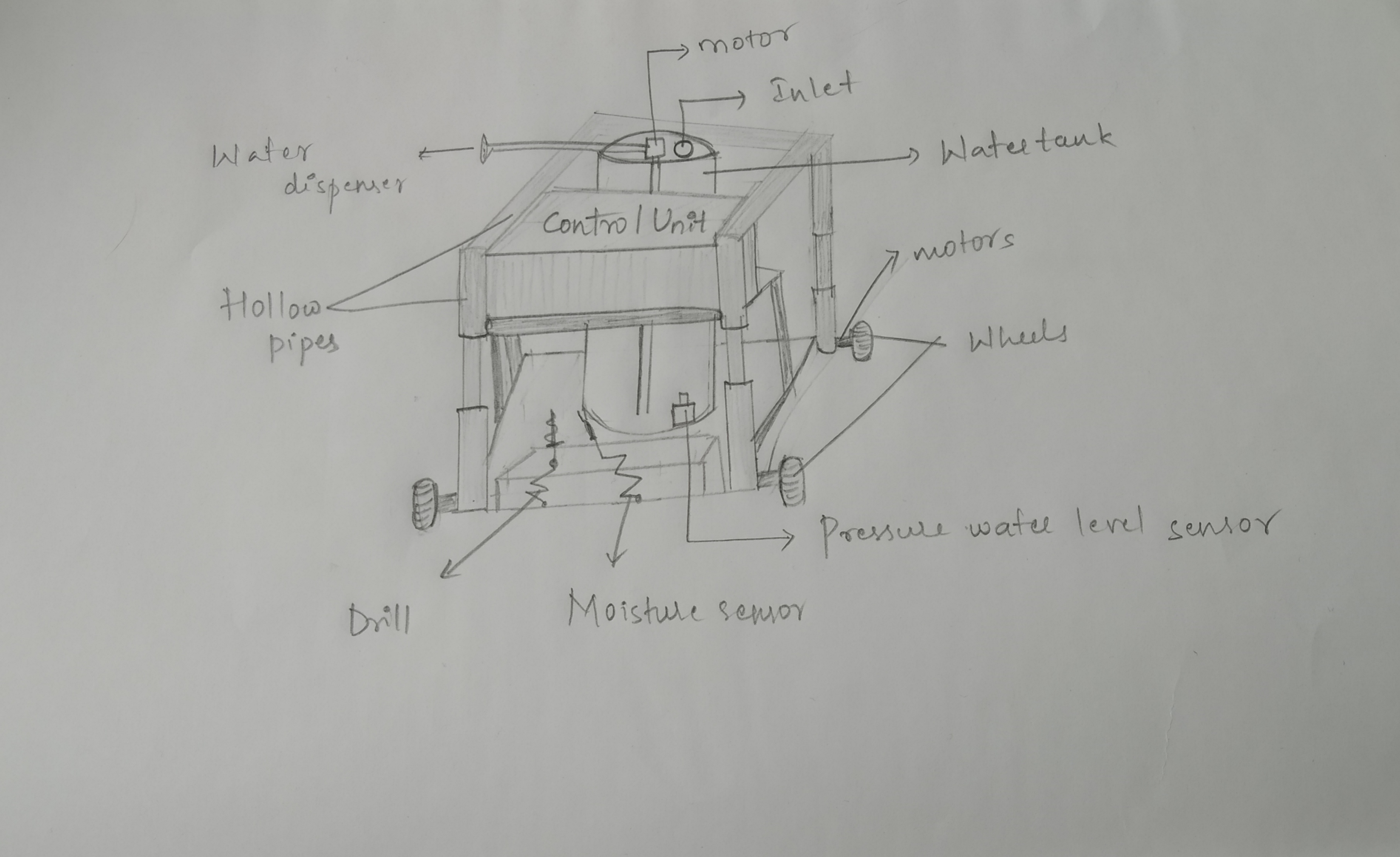

IMG_20210204_130954
