Automatic stacking machine

Functions

1. hold box
2. lift box
3. turn box
4. place box
5. switch on/off
6. move system
7. come to its original position
8. sense box
9. display

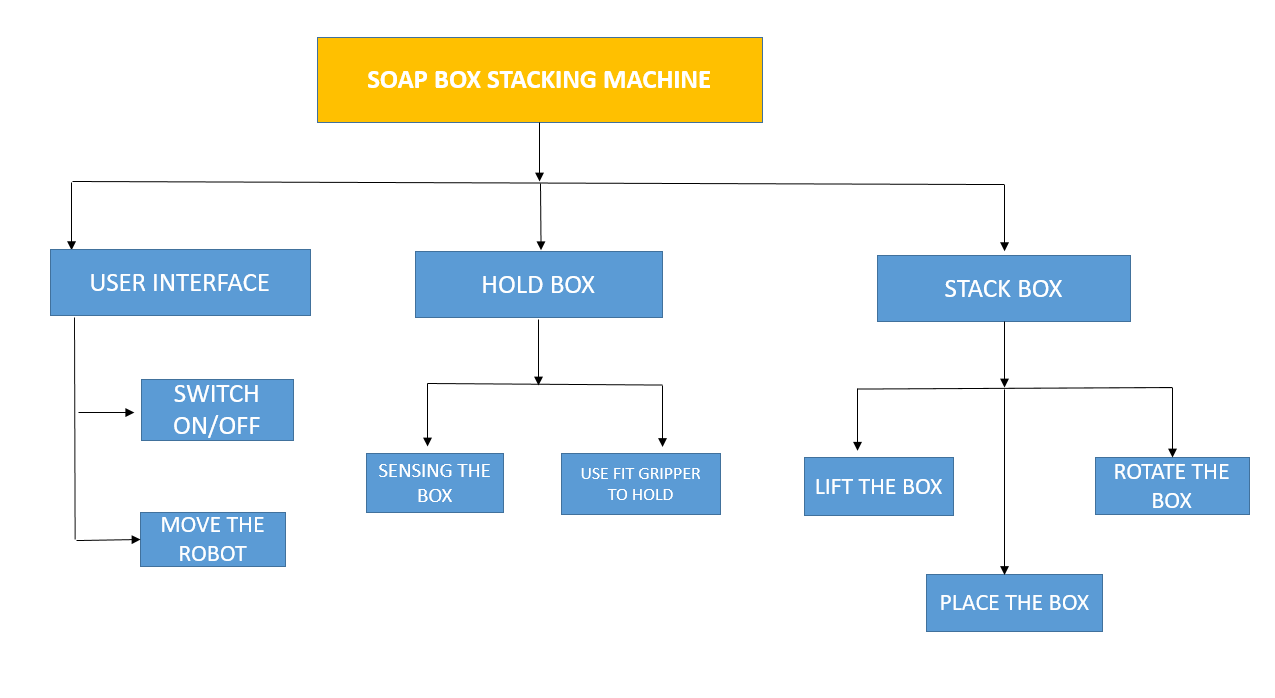

FUNCTION TREE

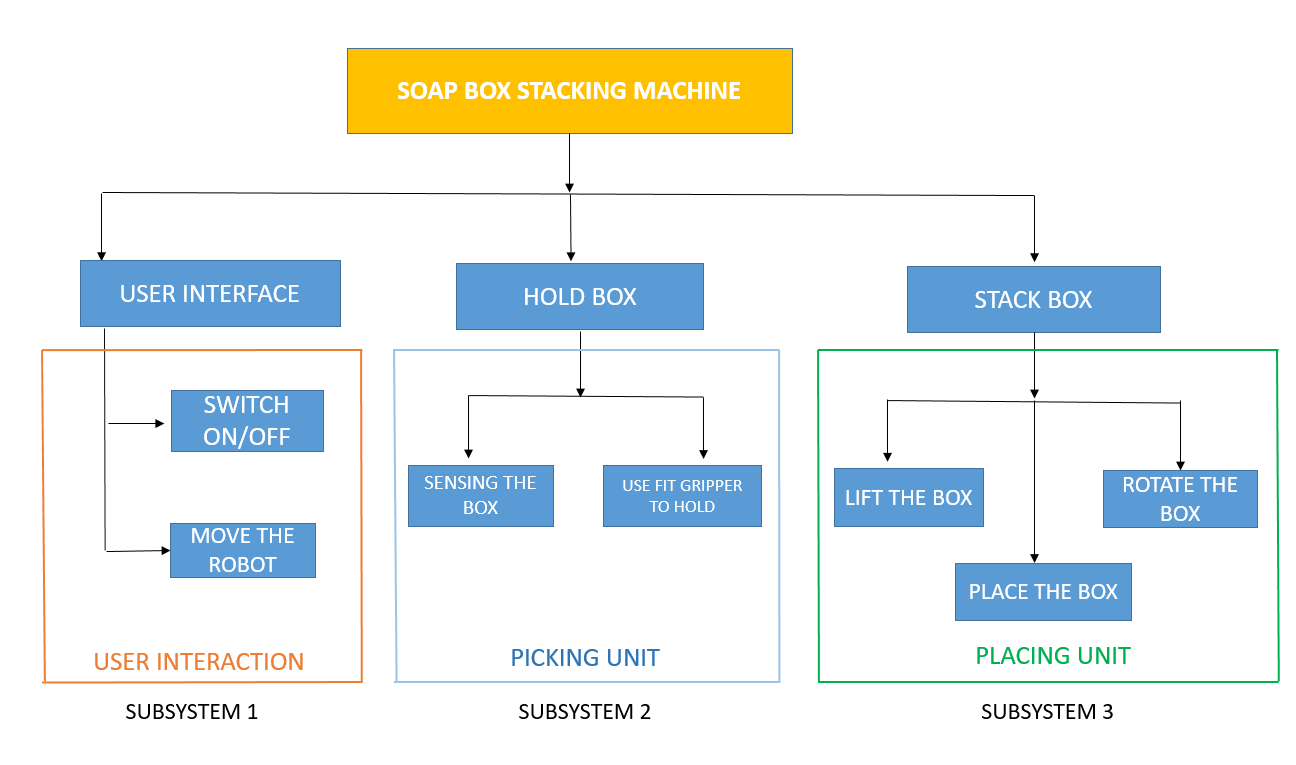

Clustering of Subsystems

Sub Systems Identified

1. Gripper
2. Robotic Arm
3. Chessis

MORPHOLOGICAL CHART

FUNCTIONS	OPTION1	OPTION2	OPTION3	OPTION4
Hold and lift the box	Mechanical picker	Fork lift	Gripper	Robotic arm
Turn and place box	Servo motor	lift
Switch on /off	Remote	Buttons	Plug	Auto timer
move system	Wheel	Roller	Track	Caterpillar track
Come to its original position by communicating	wifi	Bluetooth	Wire	Signals
Sense box	IR sensors	Ultra sonic	Laser detection	Weight sensor
Display	LED	Buzzer	Voice

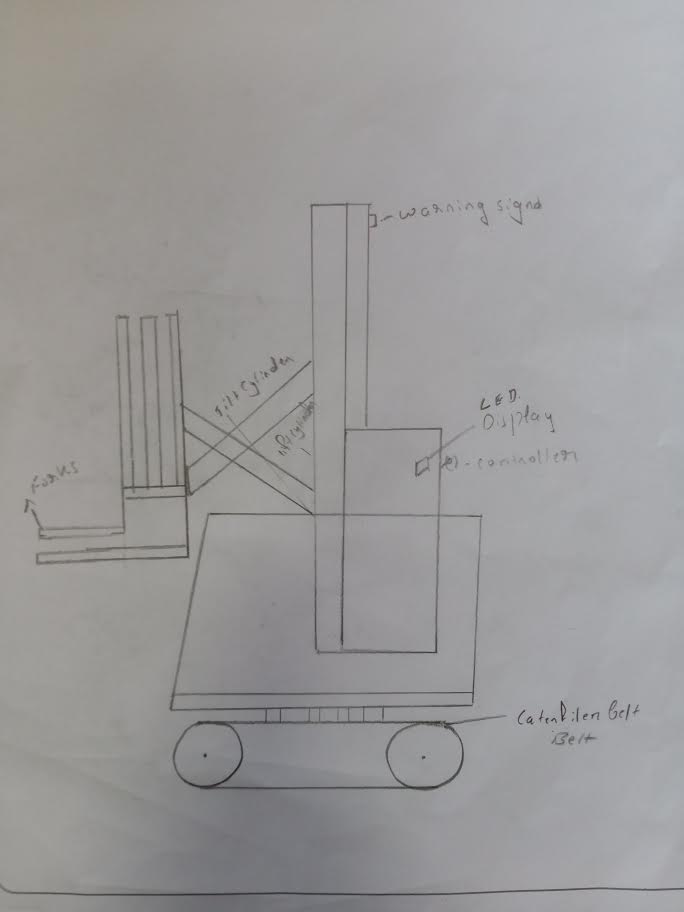

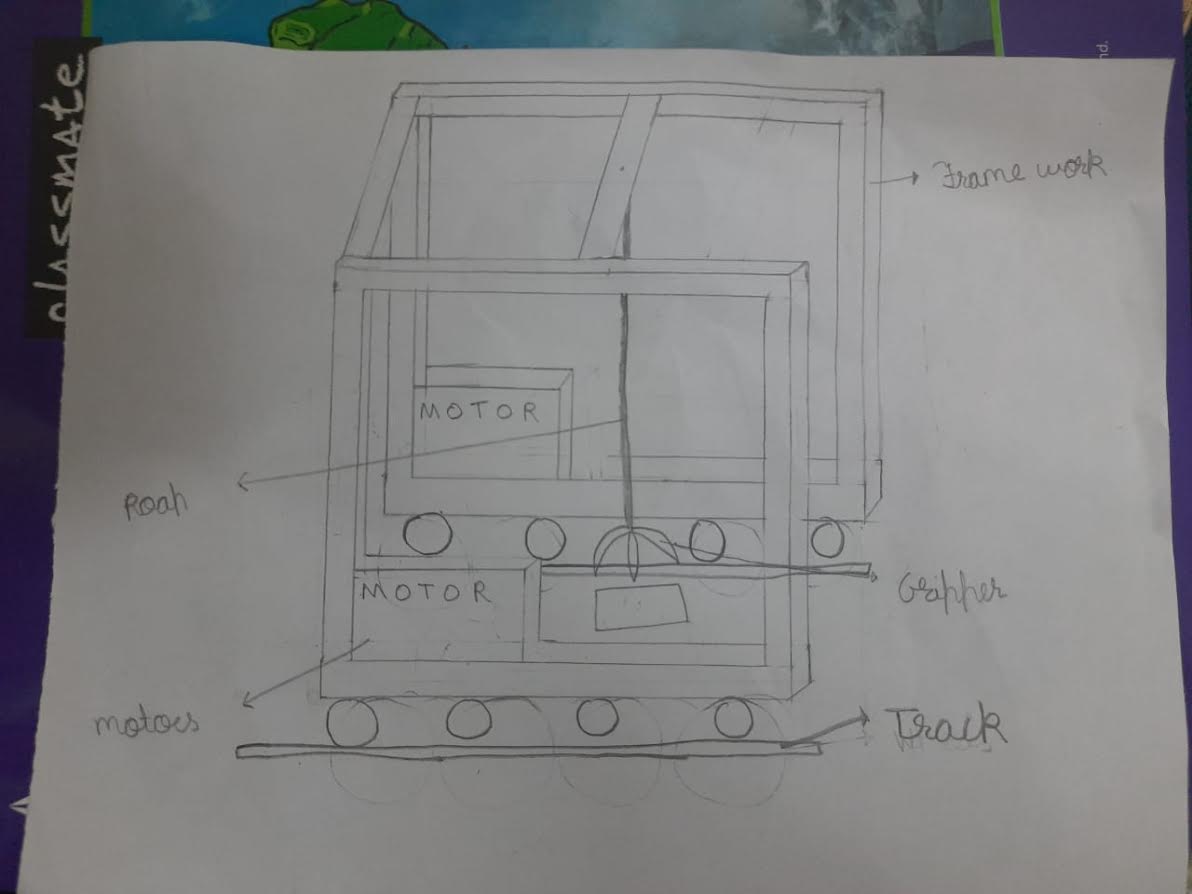

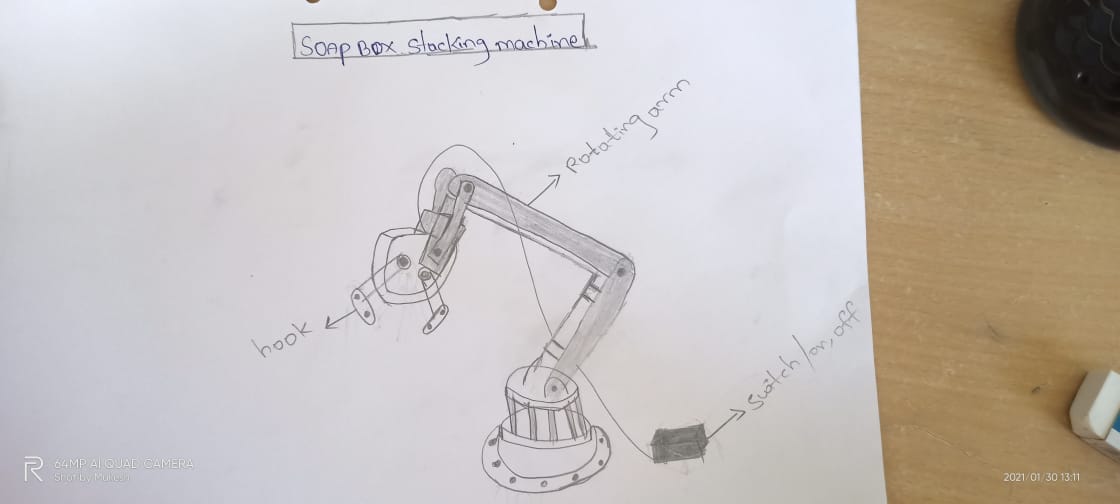

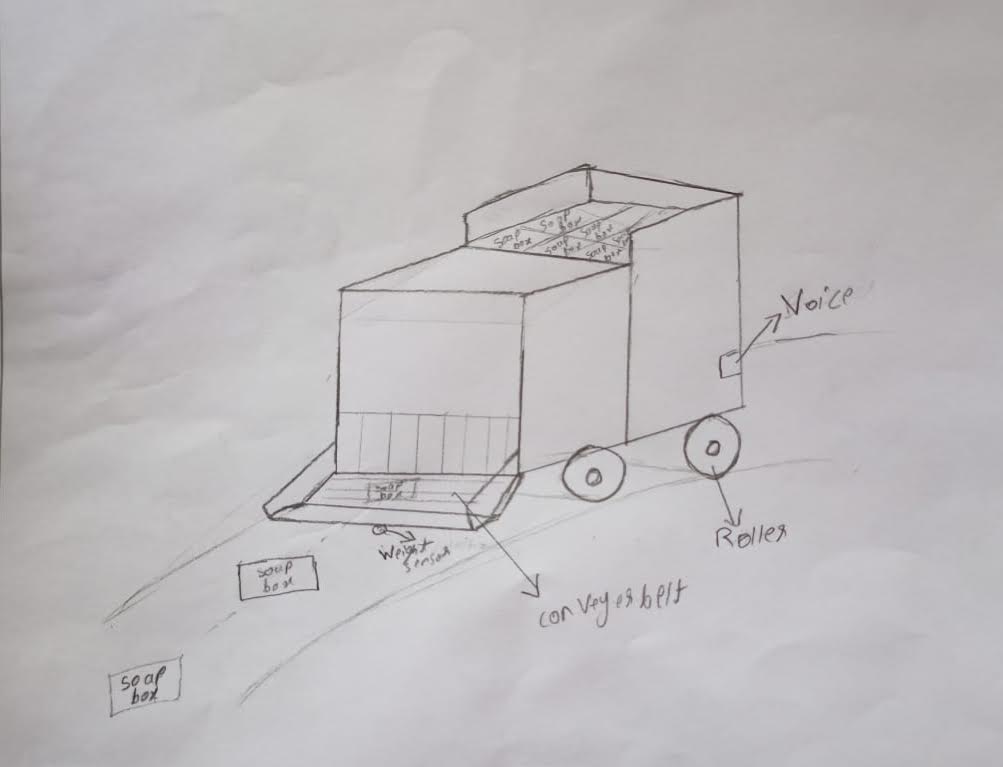

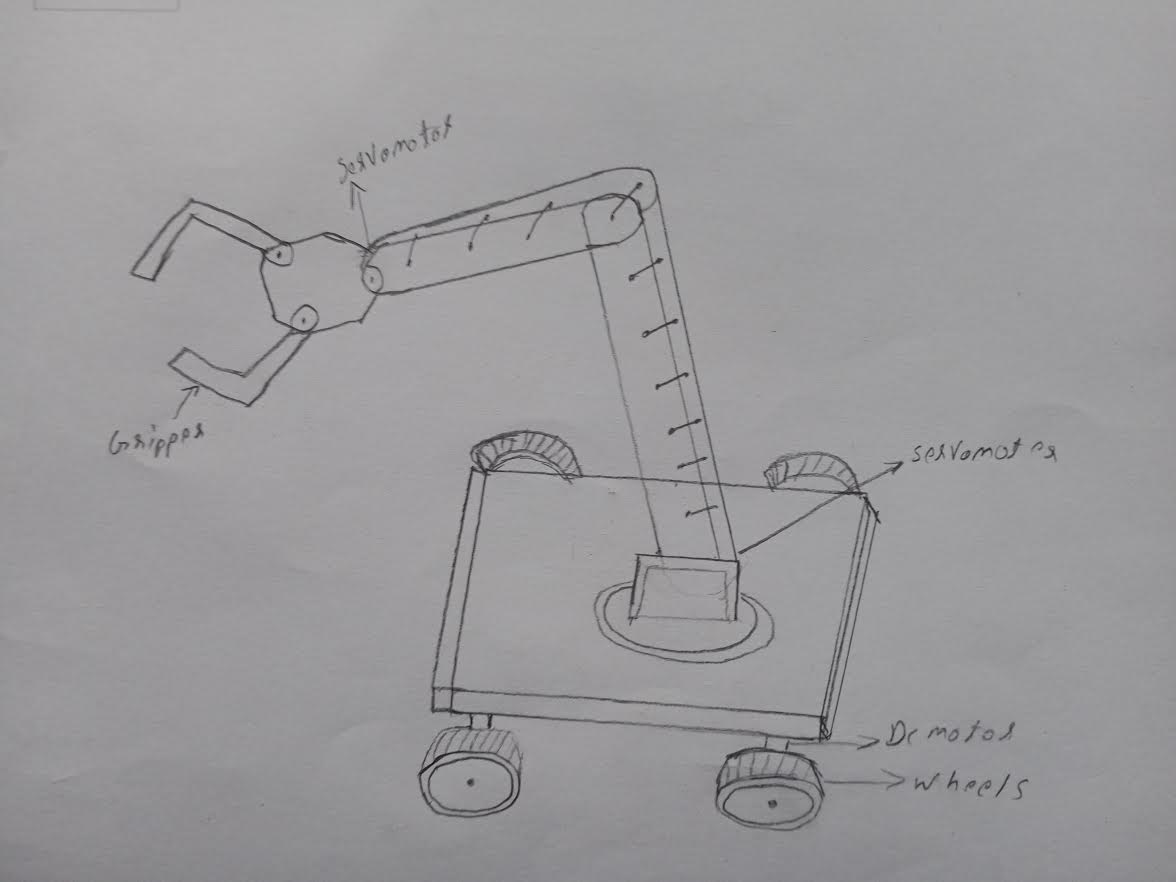

Picture Of Four Concepts

Design 1

Design 2

Design 3

Design 4

Design 5

CONCEPT SELECTION TEMPLATE:

Assign Weightages for stated Objectives

Objectives	Weightage
Ease of use	6
Cost	5
quick stacking	7
precise stacking	8

PUGH CHART

Objectives	Weightage	Design idea 1	Design idea 2	Design idea 3	Design idea 4
cost	5	++	DATUM	-	-
Easy of use	6	+	DATUM	+	+
Precise stacking	8	+	DATUM	+	0
quick stacking	7	0	DATUM	++	+
+ Score		24		28	13
- Score		0		5	5
Total		24		23	8

The best Concept selected is

Justifications:

Design Idea no	Objective	Score given	Justification
1	precise stacking	+8	it places the soap box systematically
	cost	+10	high amount tools are not required
	quick stacking	0	it takes much time to lift and stack the box
	Ease of use	+6	it can easily pick and place the box
3	precise stacking	+8	AS the vehicle moves in one direction so there is less error of miss alligning the box
	ease of use	+6	as the vehcal is automatic and less intervention of human is require which makes it easy to use
	quick stacking	+14	as the vehicle only moves in one direction and it does not picks the box so the time is saved between picking and changing direction of the vehicle
	Cost	-5	as the number of components are more as well as the structure is larger so the cost is high
4	ease of use	+6	as it collects all the soap boxes by itself the human work involved is very less
	cost	-5	as the more number of materials is used like conveyer belt the cost is high
	quick stacking	+7	after collecting the soap box it stores the boxes in the container inside it instead of placing it in another place so it saves time
	precise stacking	0	while collecting the soap box there is a chance of slippage so this machine cannot be able to stack precisely
