Summary

Three web applications are run in one K3s server instance and accessible depending on the Host used when making a request to the IP address 192.168.42.11.

Application 1 has 1 replica and is accessible if request includes a header Host: app1.com
Application 2 has 3 replicas and is accessible if request includes a header Host: app2.com
Application 3 has 1 replica and is accessible by default or contains undefined value of request header Host.

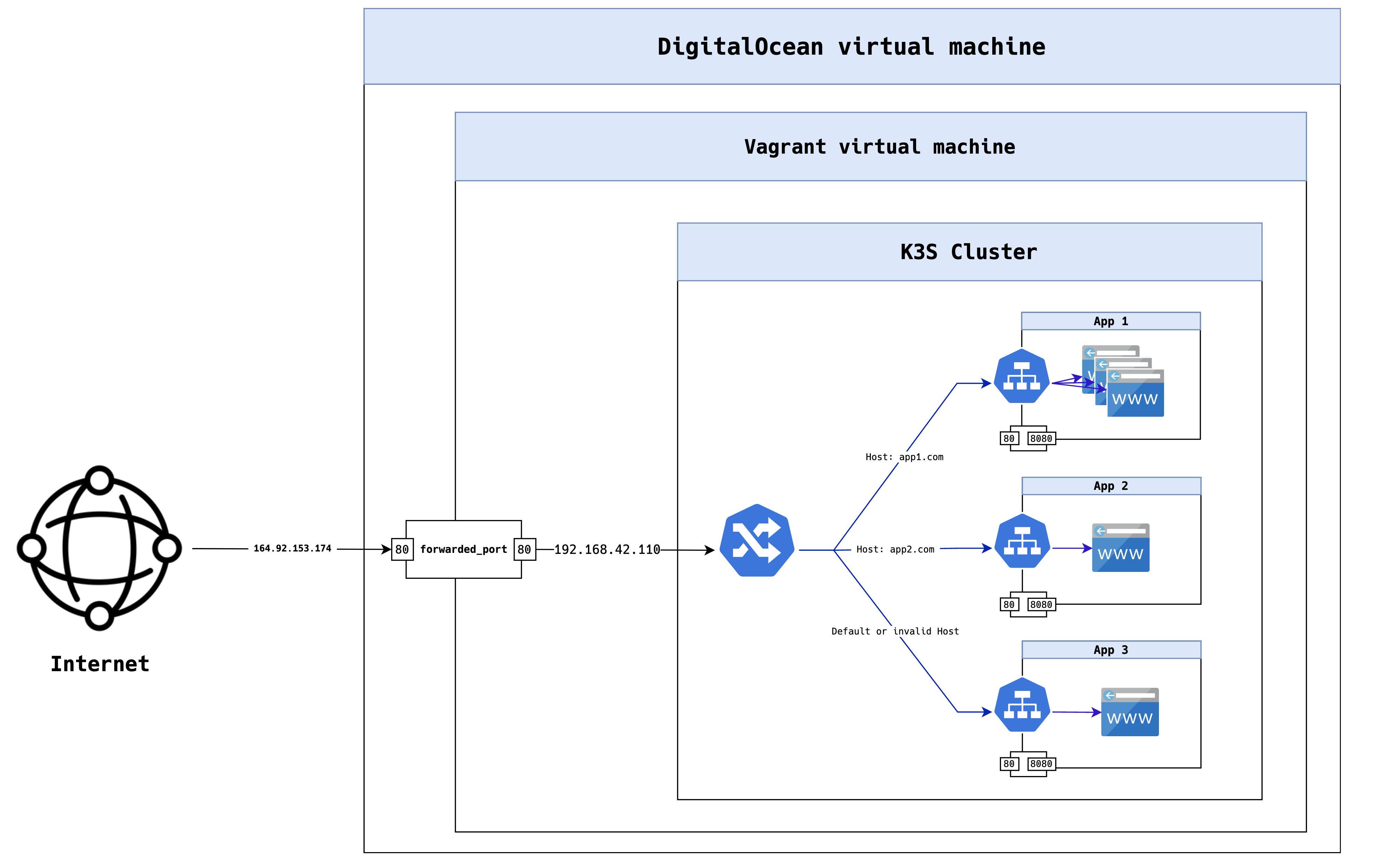

View diagram of p2's environment

Expand

Start and provision the vagrant environment of p2

Expand

vagrant up
Bringing machine 'suchoS' up with 'virtualbox' provider...
==> suchoS: Importing base box 'centos/7'...
    [...]
    suchoS: [INFO]  systemd: Starting k3s
    suchoS: service/app-one created
    suchoS: deployment.apps/app-one created
    suchoS: service/app-two created
    suchoS: deployment.apps/app-two created
    suchoS: service/app-three created
    suchoS: deployment.apps/app-three created
    suchoS: ingress.networking.k8s.io/ingress-applications created

Check created resources such as pods, services, deployments and replicas

Expand

vagrant ssh suchoS --command "kubectl get all"
NAME                             READY   STATUS    RESTARTS   AGE
pod/app-one-7454877f6d-ndx7f     1/1     Running   0          36m
pod/app-two-867df7fb47-8rb9b     1/1     Running   0          36m
pod/app-two-867df7fb47-tsrdt     1/1     Running   0          36m
pod/app-three-5467985dbb-cg2n7   1/1     Running   0          36m
pod/app-two-867df7fb47-tzk98     1/1     Running   0          36m

NAME                 TYPE        CLUSTER-IP    EXTERNAL-IP   PORT(S)   AGE
service/app-one      ClusterIP   10.43.246.0   <none>        80/TCP    37m
service/app-two      ClusterIP   10.43.99.33   <none>        80/TCP    37m
service/app-three    ClusterIP   10.43.77.88   <none>        80/TCP    37m
service/kubernetes   ClusterIP   10.43.0.1     <none>        443/TCP   37m

NAME                        READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/app-one     1/1     1            1           37m
deployment.apps/app-three   1/1     1            1           37m
deployment.apps/app-two     3/3     3            3           37m

NAME                                   DESIRED   CURRENT   READY   AGE
replicaset.apps/app-one-7454877f6d     1         1         1       36m
replicaset.apps/app-three-5467985dbb   1         1         1       36m
replicaset.apps/app-two-867df7fb47     3         3         3       36m
Connection to 127.0.0.1 closed.

View Ingress

Expand

vagrant ssh suchoS --command "kubectl describe ingress"
Name:             ingress-applications
Namespace:        default
Address:          192.168.42.110
Default backend:  app-three:80 (10.42.0.9:8080)
Rules:
  Host        Path  Backends
  ----        ----  --------
  app1.com
              /   app-one:80 (10.42.0.2:8080)
  app2.com
              /   app-two:80 (10.42.0.11:8080,10.42.0.5:8080,10.42.0.6:8080)
  *
              /   app-three:80 (10.42.0.9:8080)
Annotations:  <none>
Events:       <none>
Connection to 127.0.0.1 closed.

Browse to check that the virtual machine is correctly configured

Using curl

app1 with one replica

[~]$ curl -sH "Host:app1.com" 164.92.153.174 | grep app
  Hello from app1.
      <td>app-one-7454877f6d-ndx7f</td>

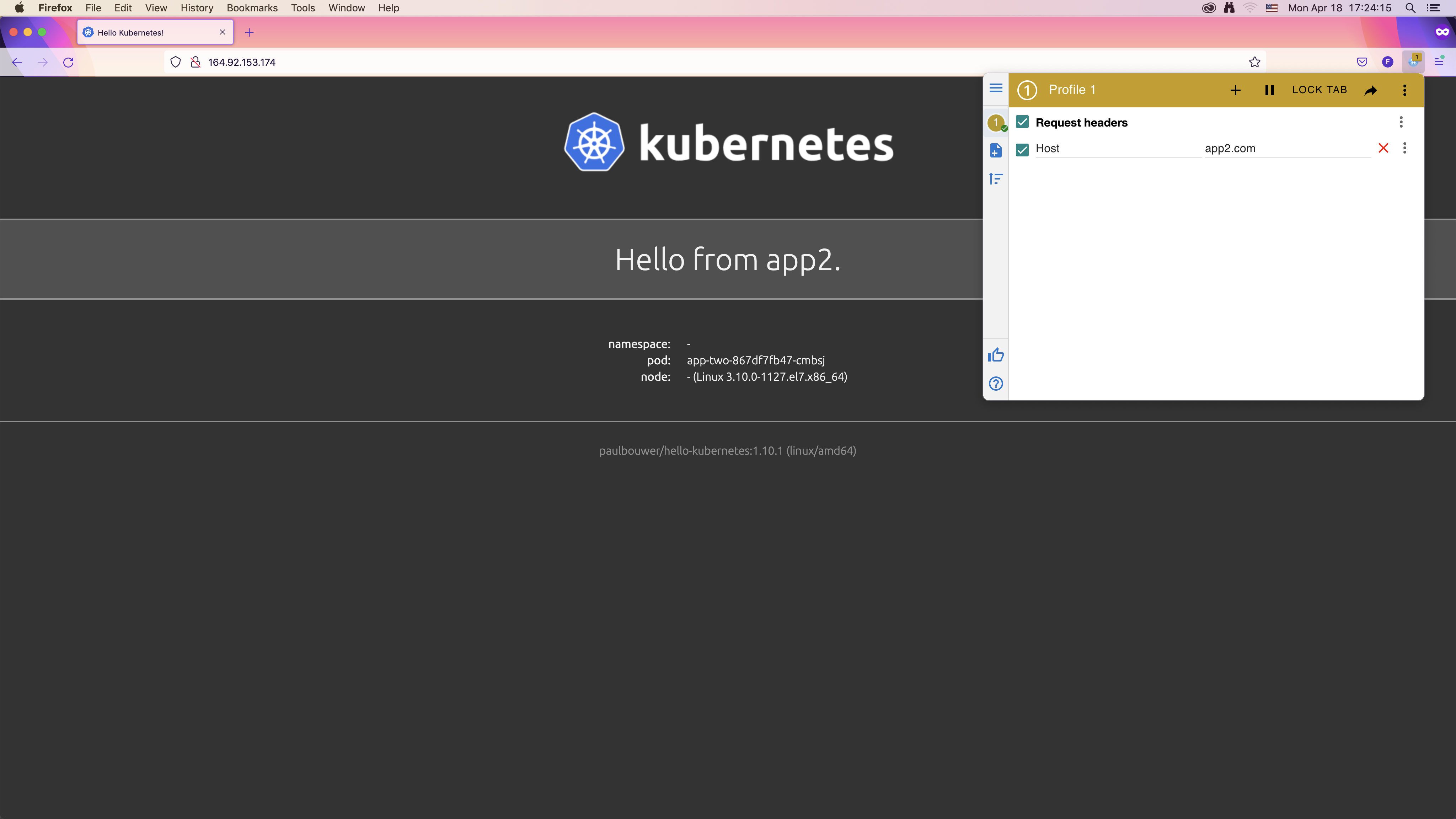

app2 with three replicas

[~]$ curl -sH "Host:app2.com" 164.92.153.174 | grep app
  Hello from app2.
      <td>app-two-867df7fb47-tsrdt</td>
[~]$ curl -sH "Host:app2.com" 164.92.153.174 | grep app
  Hello from app2.
      <td>app-two-867df7fb47-8rb9b</td>
[~]$ curl -sH "Host:app2.com" 164.92.153.174 | grep app
  Hello from app2.
      <td>app-two-867df7fb47-tzk98</td>

app3 with one replica as default application

[~]$ curl -sH "Host:app3.com" 164.92.153.174 | grep app
  Hello from app3.
      <td>app-three-5467985dbb-cg2n7</td>
[~]$ curl -sH "Host:42.fr" 164.92.153.174 | grep app
  Hello from app3.
      <td>app-three-5467985dbb-cg2n7</td>
[~]$ curl -s  164.92.153.174 | grep app
  Hello from app3.
      <td>app-three-5467985dbb-cg2n7</td>
