The article about a installation example as of 2020/3/10.

Configuration

  • Raspberry Pi 3B+
  • Raspbian image (Release date: 2020-02-13)
  • Raspberry Pi Imager

And this environment around

  • Windows 10
  • A general SD Card reader/writer
  • A general SD Card 16GB

Installing Raspbian to formatted SD card using Raspberry Pi Imager


Raspberry Pi Downloads - Software for the Raspberry Pi

The Raspberry Pi image installation choosed "Raspberry Pi Imager" this time. This software is released recently. Read the detail usage refered to here official article.

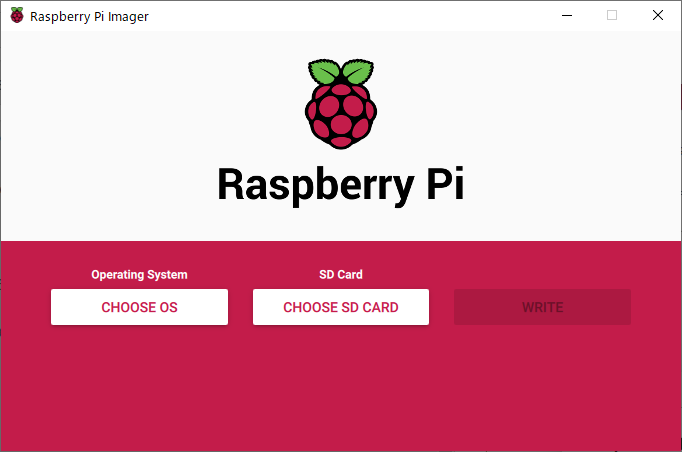

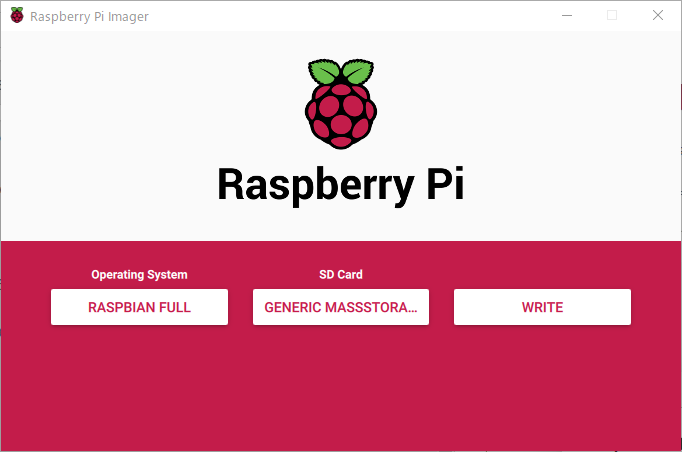

Launch Raspberry Pi Imager.

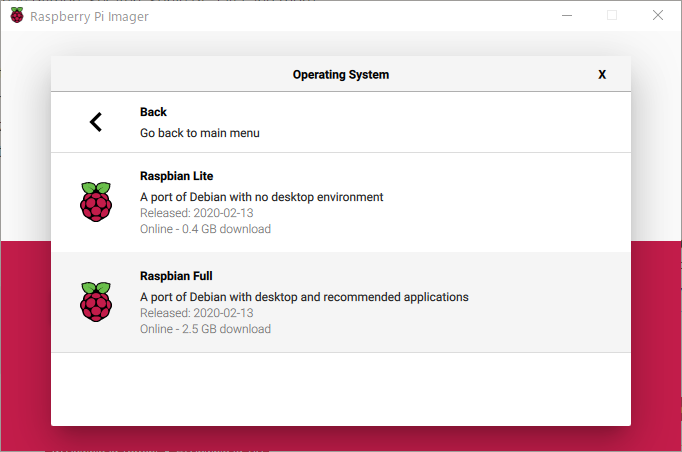

Operating system chooses Raspbian Full. It is Released 2020-02-13 as of 2020/3/10.


Click WRITE Button and wait for a while.

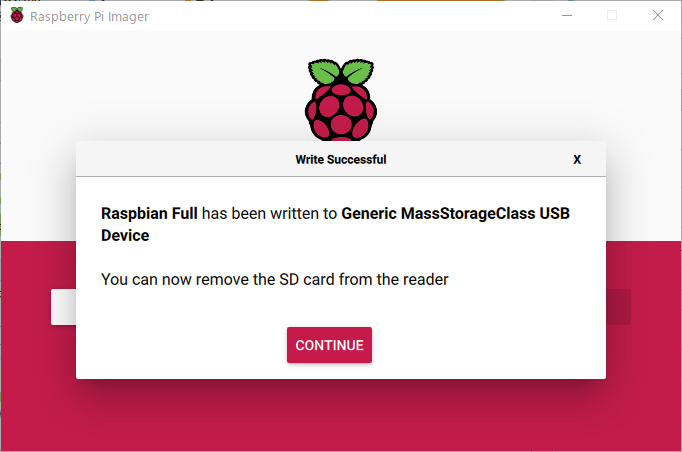

Finished.

Setting on the first launch

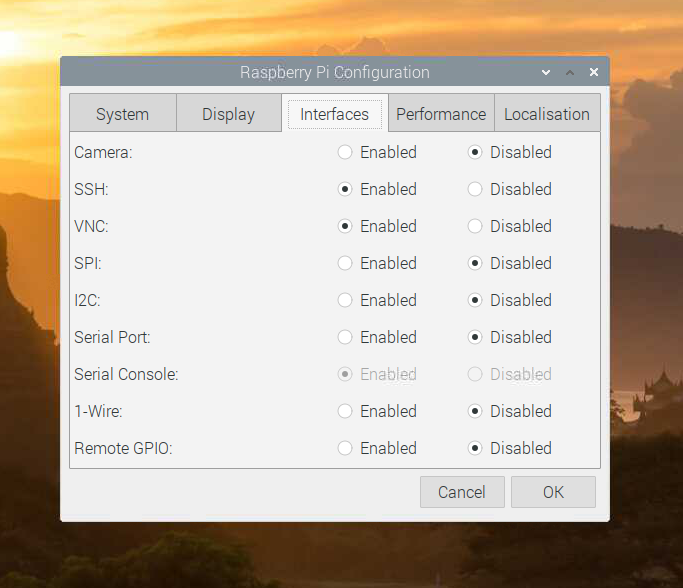

Setting Raspberry Pi Configration

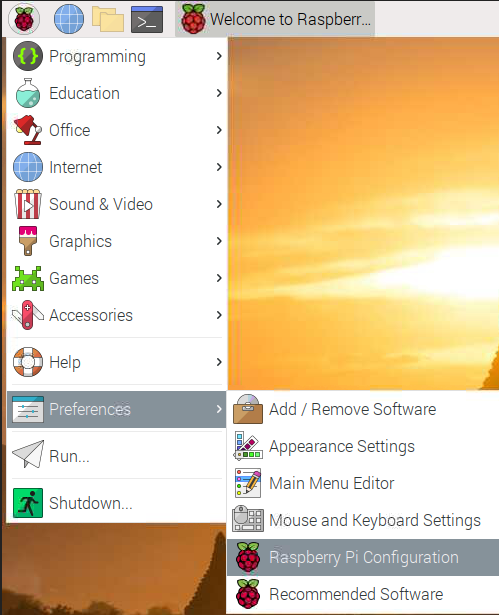

Launch Raspberry Pi Configration from menu.


  • SSH
    • Select to Enable
  • VNC
    • Select to Enable

Setting Welcome to Raspberry Pi flow

Setting some options such as "Set Country" , "Wi-Fi Setting" and "Password".

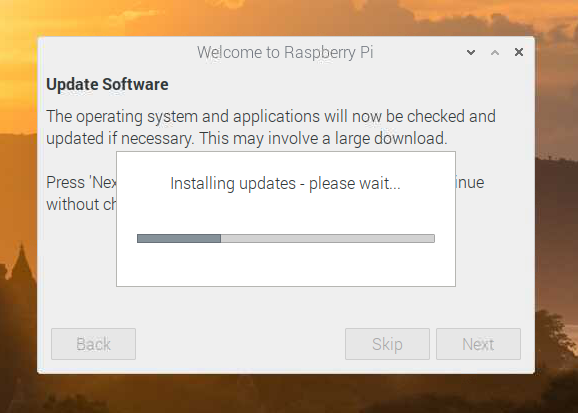

Complete until "Update Software".

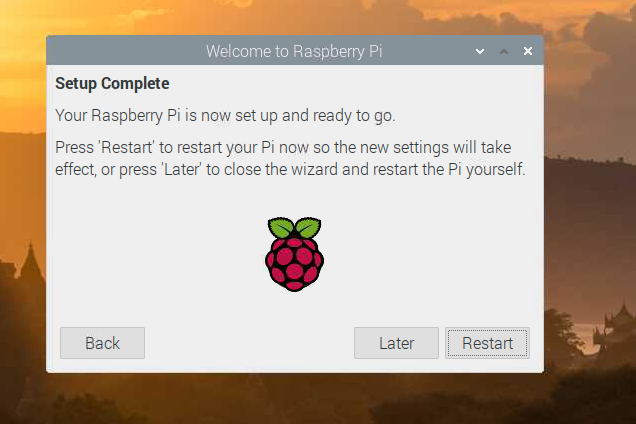

Click Restart button at this window.

Setting on the second launch

Installing Grove Base Hat software

http://wiki.seeedstudio.com/Grove_Base_Hat_for_Raspberry_Pi/#installation

Installing Node-RED

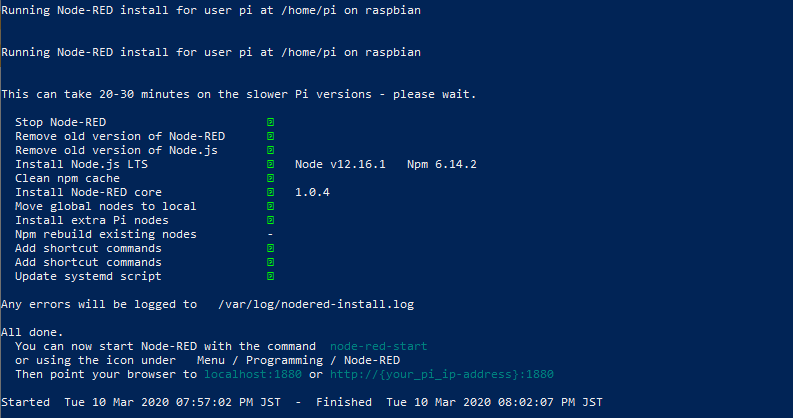

Execute the bash command described in "Installing Node-RED".

https://nodered.org/docs/getting-started/raspberrypi


Shutdown for setting

sudo shutdown -h now

Shutdown for setting Grove Base Hat as physical.

Equipping Grove Base Hat

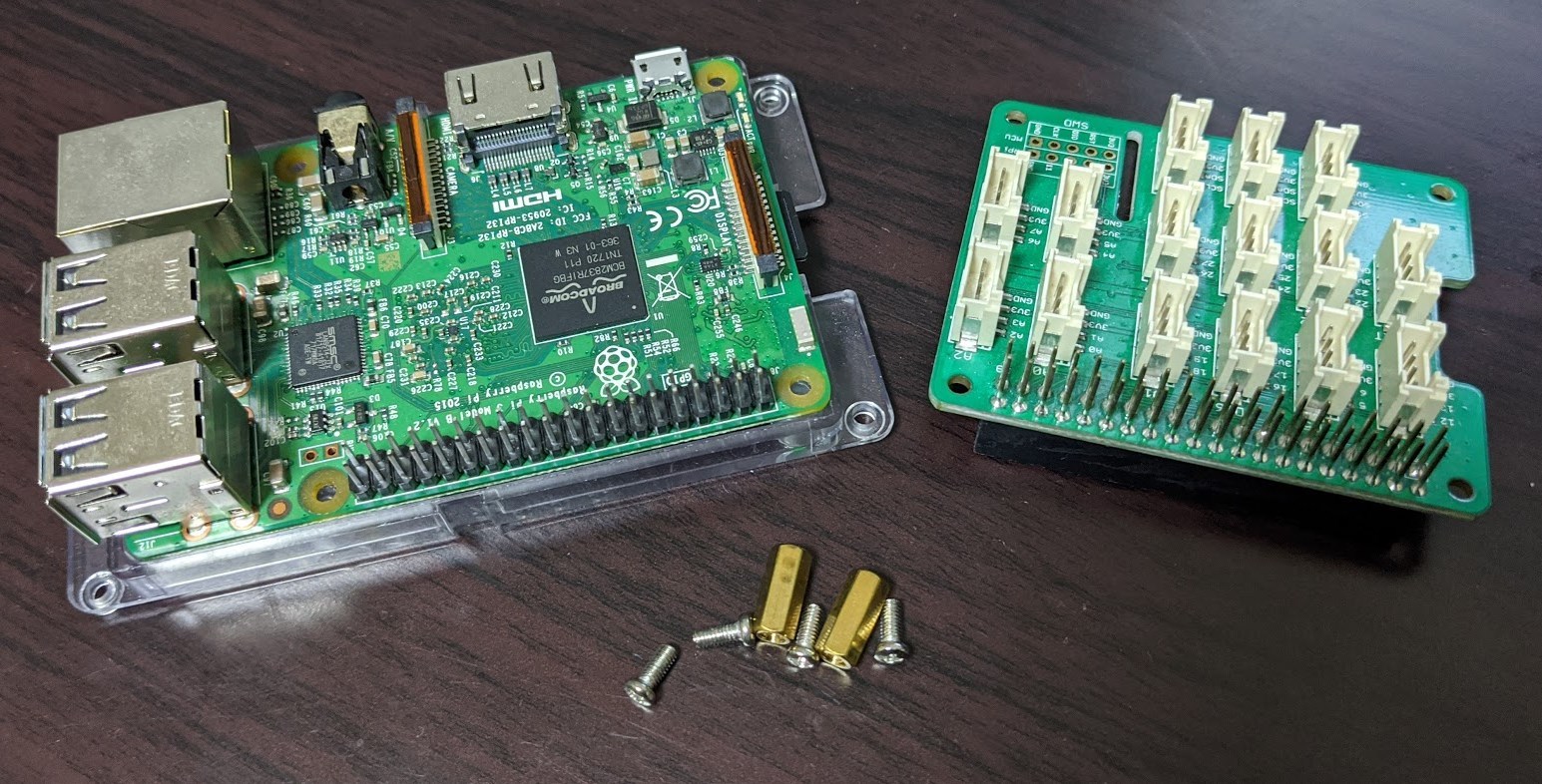

Prepare Grove Base Hat.

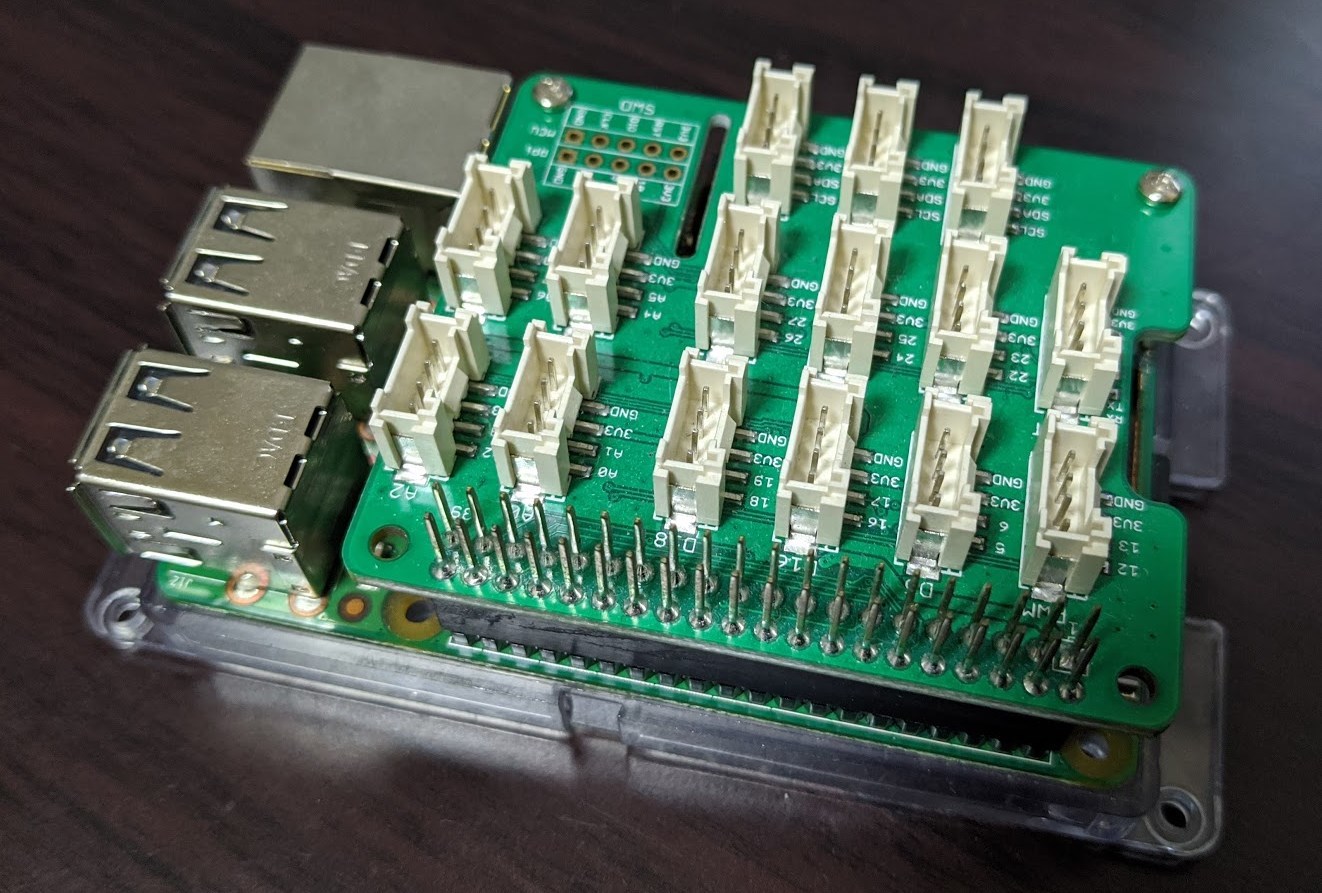

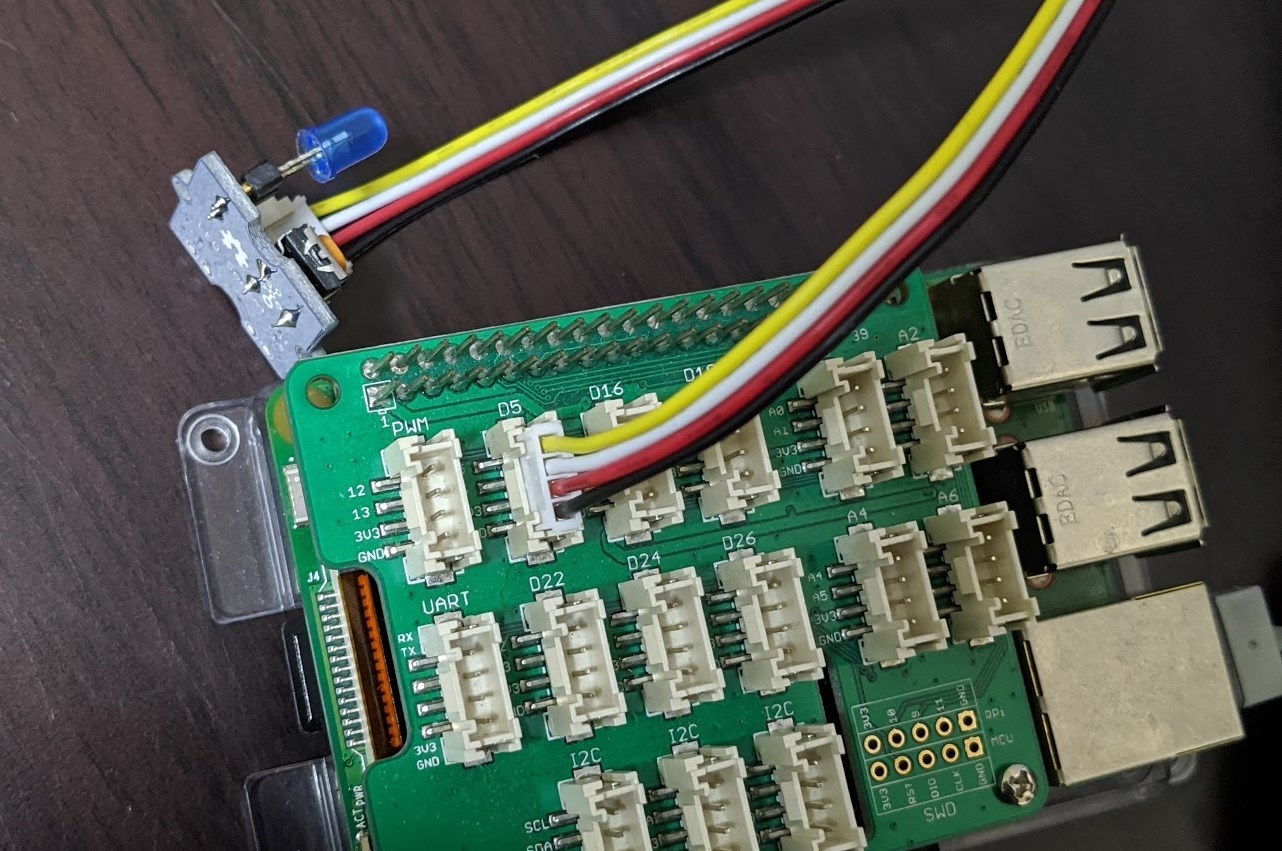

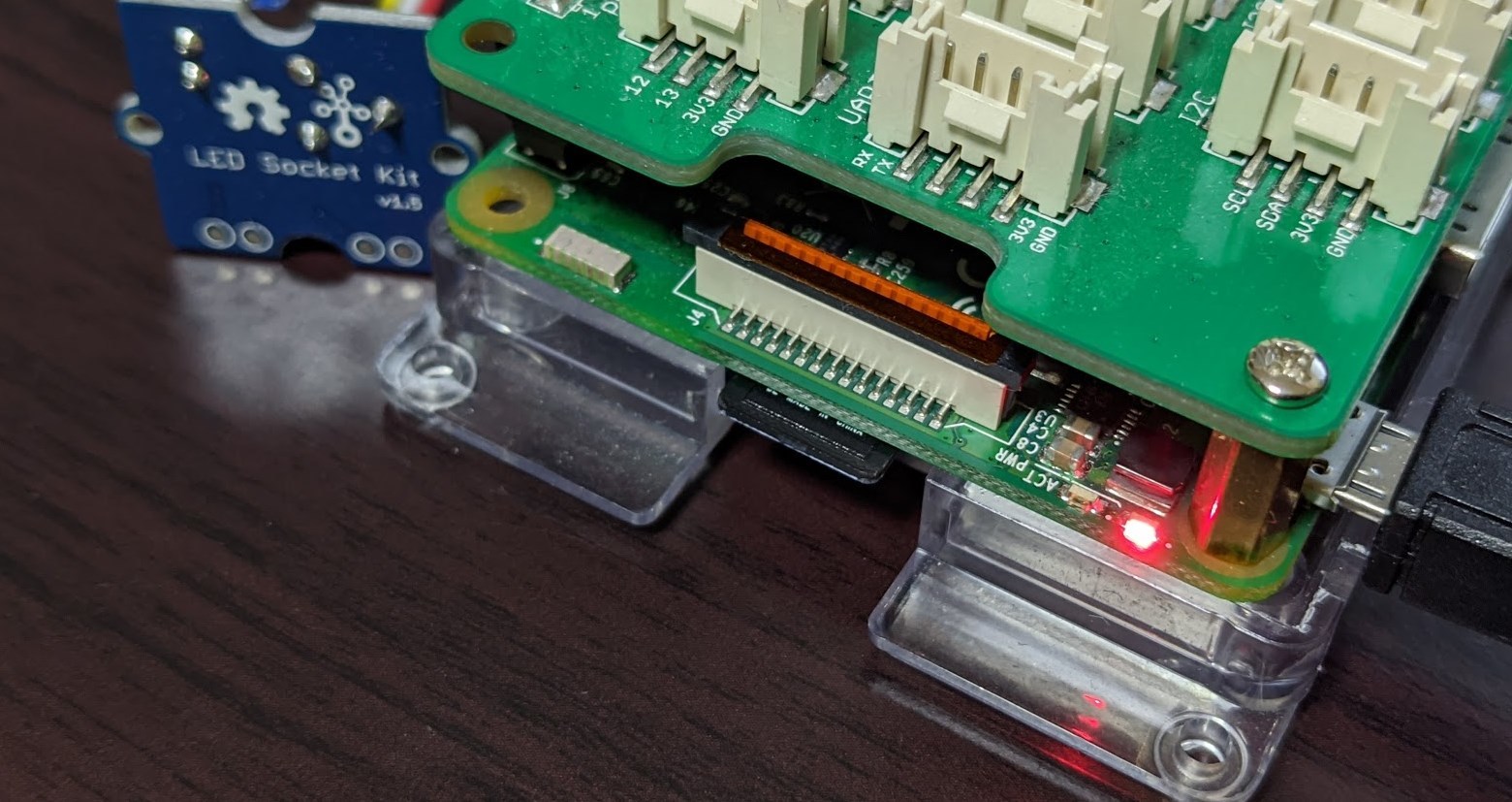

Equiped Grove Base Hat in Raspberry Pi 3B+.


And Connect Grove LED in D5 port.


Launch Raspberry Pi 3B+.

Check Grove Base Hat libraries.

In first, check to enable working Grove Base Hat libraries.

grove_led 5

Execute the bash command to python Grove Base Hat library.


Grove LED will work like this. the terminal will respond "Hat Name = 'Grove Base Hat RPi'".

Terminate the execution with Ctrl + C.

This check comfirmed that Grove Base Hat libraries are working.

Installing node-red-contrib-grove-base-hat

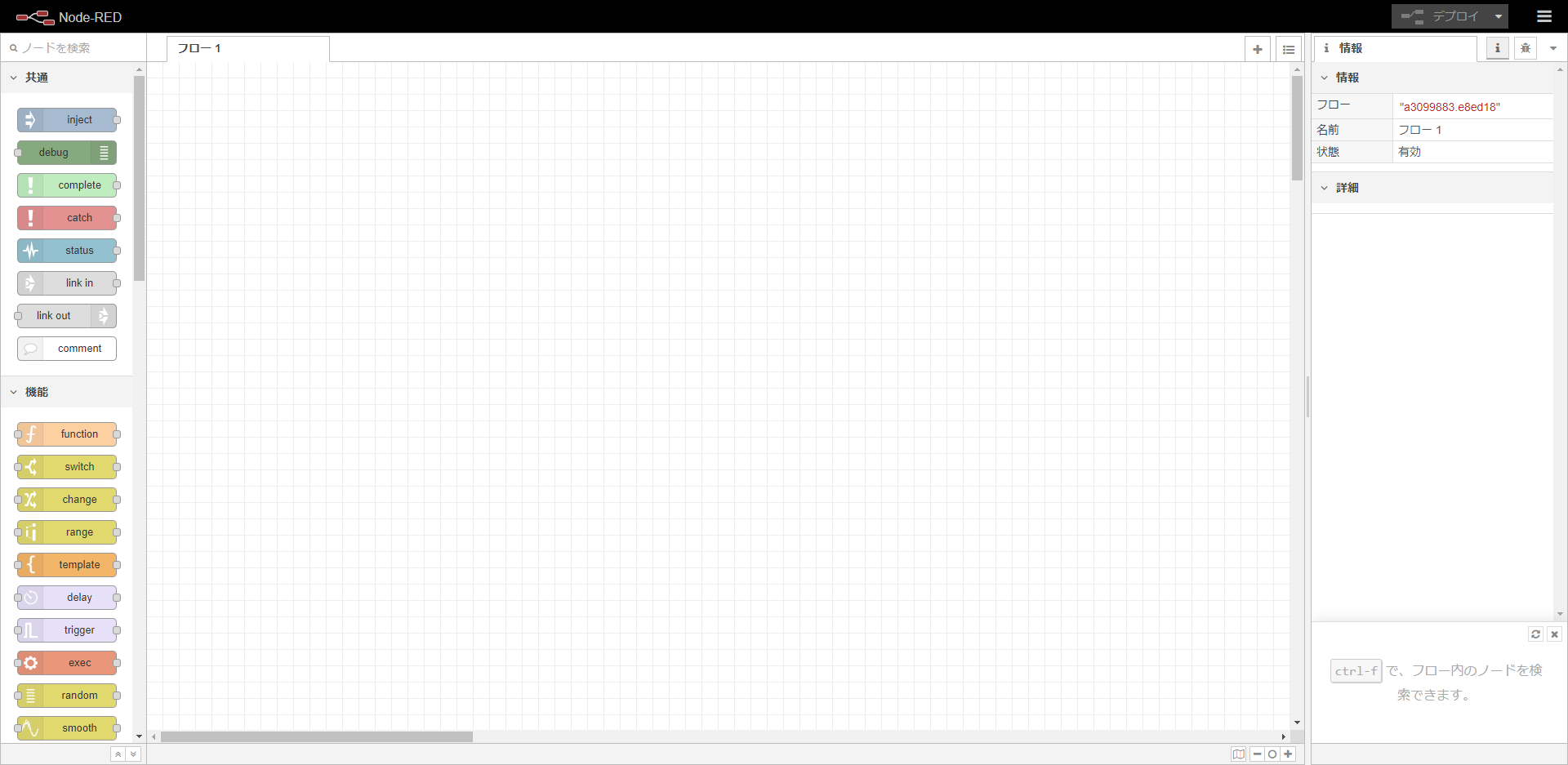

Launch Node-RED. The current version is v1.0.4.

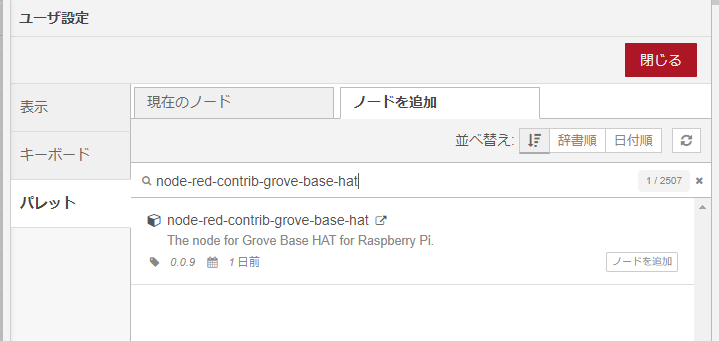

Install node-red-contrib-grove-base-hat from the Manage Palette ( via. https://nodered.org/docs/user-guide/runtime/adding-nodes )

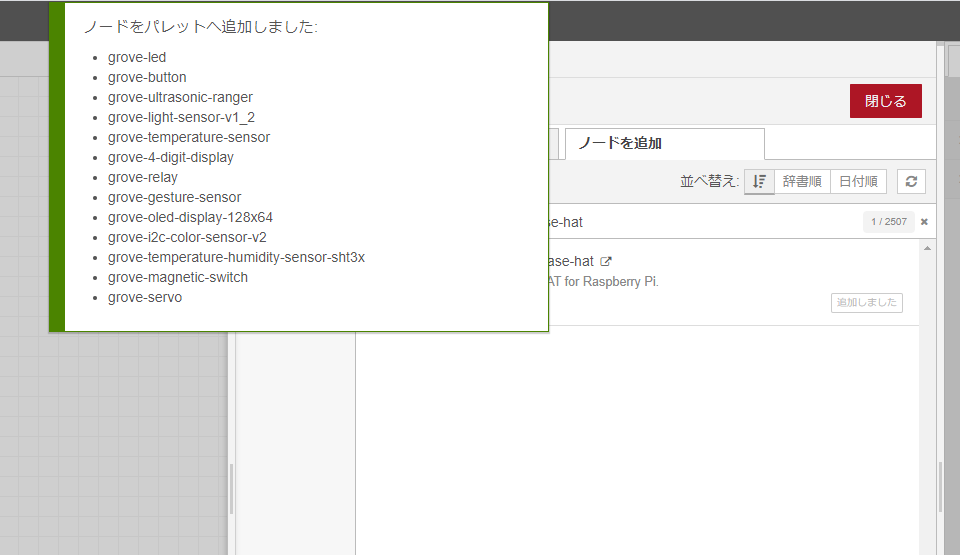

Installed this node.

Import the sample flow

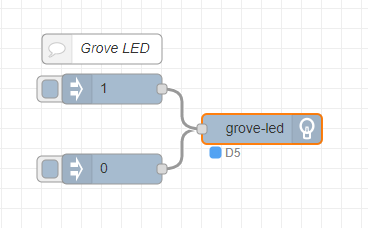

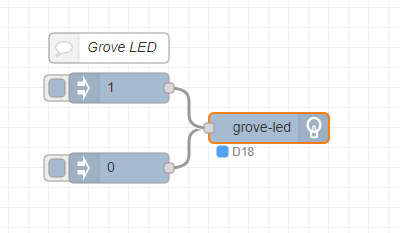

Import the sample flow but it already set as D18.

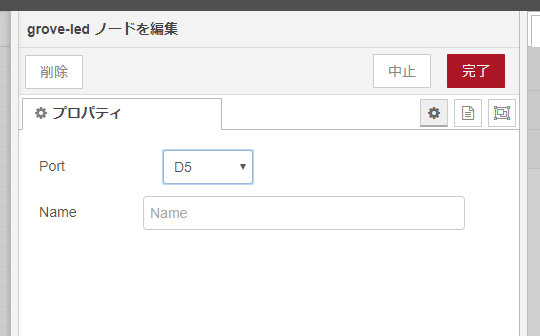

Adjust D5 in the detail node setting.


Don't forget deploy.

Check the flow and Grove LED

Image from Gyazo

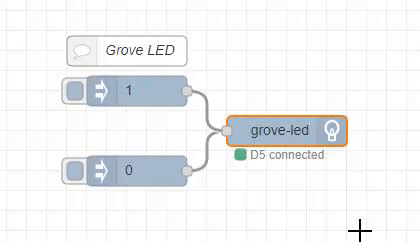

Click 1 and 0 inject nodes alternately.


Grove LED will work like this. It sync with that click operations.

Done! This check comfirmed that Grove Base Hat libraries and node-red-contrib-grove-base-hat node are working.

And Also

Another pattern succeeded already.

  • Raspberry Pi 4B
  • Raspbian image (Release date: 2020-02-13)
  • Raspberry Pi Imager
