Starter Kits (Part 2 Data Connect and Passports) - ga4gh/ismb-2022-ga4gh-tutorial Wiki


Time: Sunday, July 10th, 2022 @ 5 pm - 6 pm

Slides: link

Outline

In the previous session, we assumed:

  1. The input dataset (DRS URIs) was known by the researcher ahead of time
  2. The input dataset was completely open access.

In a realistic research scenario, the researcher will need to both search for and obtain authorization to a suitable, controlled access dataset prior to running workflows.

In this session, we will introduce two more GA4GH standard APIs: Data Connect and Passports, which facilitate search and authorization, respectively. Using Docker and Docker Compose, participants will start a Data Connect service and populate it with biomedical metadata about the input dataset. Next, participants will start a Passport Broker service, populate it with researcher user accounts, and give different levels of dataset access to each researcher. Finally, participants will act on behalf of these researchers, running biomedical search queries and using their access credentials to obtain datasets for which they have clearance.

The participants will play the roles of

  • Data Provider

    • System/Platform admin: Configure, start, and stop GA4GH Starter Kit services
    • Data Access Committee (DAC): Grant/revoke researcher access to datasets
  • Researcher / Data Consumer

    • Interact with the GA4GH services to accomplish a scientific objective
    • Search, authorize, access, and analyze using the hosted services

NOTE: We use Postman for all the HTTP requests

Tutorial

If you have not set up your environment, follow Tutorial Steps 1,2 from Starter Kits Part 1

1. Run Data Connect and Passport Starter Kit docker containers using docker-compose

Enter the working directory for Starter Kits Part 2

cd ismb-2022-ga4gh-tutorial/StarterKits/Part_2_DataConnect_Passports

Deploy Data Connect and Passport Starter Kits using docker-compose

docker-compose up -d

Potential Error: If a port is already in use...

You might see an error like this:

ERROR: for 5_drs_1 Cannot start service drs: Ports are not available: listen tcp 0.0.0.0:5000: bind: address already in use

In this case you can check which service is using that specific port:

sudo lsof -i :<port>

You can also kill the process that is using the port (You can find the PID of the process by running the command above). Make sure to not kill a vital process!

kill -9 <PID>

2. Check if the docker containers are running

List all the running docker containers

docker ps

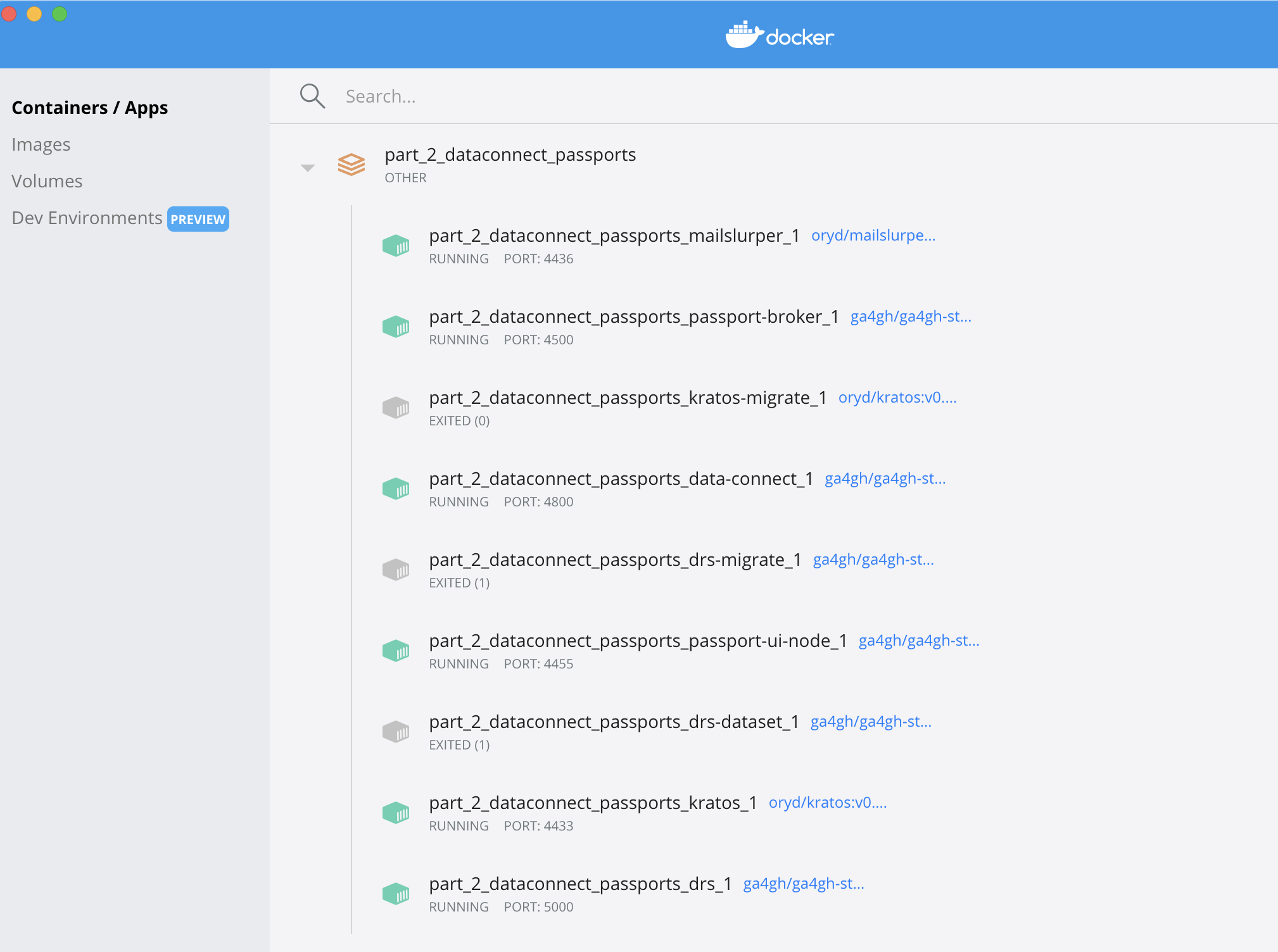

You can also get this information from the docker desktop application. Check the list of running docker containers in the part_2_dataconnect_passports stack

docker-desktop-list-containers

3. Load 1000 genomes data into Data Connect

The Data Connect Starter Kit comes loaded with two default datasets - phenopackets v1 dataset and 200 genome samples from the 1000 genomes sample dataset.

4. Explore Data Connect endpoints

i. GET service-info

GET http://localhost:4800/service-info

ii. GET tables list

GET http://localhost:4800/tables

iii. GET table info for a specified table

GET http://localhost:4800/table/one_thousand_genomes_sample/info

iv. GET table data for a specified table

GET http://localhost:4800/table/one_thousand_genomes_sample/data

v. Search for data satisfying specific conditions

Search for samples with population_code = "PUR" and sex = "female"
POST:
http://localhost:4800/search

HEADER:
content-type: application/json

REQUEST BODY (raw, JSON):
{
  "query": "select sample_name , sex , population_code , population_name from one_thousand_genomes_sample where population_code=? and sex=?;",
  "parameters": [ "PUR","female" ]
}
Search for samples with superpopulation_name = "European Ancestry" and population_code = "FIN"
POST:
http://localhost:4800/search

HEADER:
Content-Type: application/json

REQUEST BODY (raw, JSON):
{
  "query": "select * from one_thousand_genomes_sample where superpopulation_name = ? and population_code=?;",
  "parameters": [ "European Ancestry","FIN" ]
}

vi. Convert DRS Object URI to HTTP URL

drs://{host}/{id} -> http(s)://{host}/ga4gh/drs/v1/objects/{id}

drs://localhost:5000/HG00740.1000genomes.lowcov.downsampled.cram ->

http://localhost:5000/ga4gh/drs/v1/objects/HG00740.1000genomes.lowcov.downsampled.cram

5. Add the broker and visa information to the DRS server and load 1000 genomes data into DRS

python3 scripts/add-known-visas-to-drs.py
python3 scripts/populate-drs.py

6. Attempt to access DRS Object from Step 4 (vi)

i. Get DRS Object

Since, DRS data in this Part 2 of the tutorial is access controlled using Passports, when we try to request the DRS object, we receive an "Unauthorized" error

GET http://localhost:5000/ga4gh/drs/v1/objects/HG00740.1000genomes.lowcov.downsampled.cram

Error response:

{
"timestamp": "2022-06-08T21:53:08Z",
"status_code": 401,
"error": "Unauthorized",
"msg": "Request for controlled data is missing user passport(s)"
}

ii. Get the passport broker and visa details from the DRS server for the specified DRS object id

OPTIONS http://localhost:5000/ga4gh/drs/v1/objects/HG00740.1000genomes.lowcov.downsampled.cram

iii. Get the passport broker and visa details from the DRS server for an array of DRS object ids

OPTIONS http://localhost:5000/ga4gh/drs/v1/objects

REQUEST BODY (raw, JSON):
{"selection": ["HG00740.1000genomes.lowcov.downsampled.cram", "HG03711.1000genomes.lowcov.downsampled.cram"]}

7. Create visas on the passport broker

i. Confirm the Passport Broker is working

GET http://localhost:4500/ga4gh/passport/v1/service-info

ii. Create Visas

POST http://localhost:4501/admin/ga4gh/passport/v1/visas

HEADER:
Content-Type: application/json

REQUEST BODY (raw, JSON):
{
  "id": "6ecaef9e-d6bb-4d96-9aed-ca517ceed8a1",
  "visaName": "1000GenomesIndividualsWithEastAsianAncestry",
  "visaIssuer": "https://federatedgenomics.org/",
  "visaDescription": "Controls access to genomic data obtained from individuals with East Asian ancestry",
  "visaSecret": "29CD6DFBB2684BAEACED3B1C6A7F4"
}

Repeat the process for all the other visas (one-by-one):

{
  "id": "3af0e101-cd51-4fe4-aa8c-29a69be48fe0",
  "visaName": "1000GenomesIndividualsWithEuropeanAncestry",
  "visaIssuer": "https://federatedgenomics.org/",
  "visaDescription": "Controls access to genomic data obtained from individuals with European ancestry",
  "visaSecret": "47B42DF32976DFDBD6EC4D9ED2593"
}
{
  "id": "e38f656e-3146-4b06-92f2-6edea44f0cd1",
  "visaName": "1000GenomesIndividualsWithAfricanAncestry",
  "visaIssuer": "https://federatedgenomics.org/",
  "visaDescription": "Controls access to genomic data obtained from individuals with African ancestry",
  "visaSecret": "582A164E2C5DA377F3E3F76158CE6"
}
{
  "id": "b62249d0-d71d-42d2-9a67-55003fdae8ec",
  "visaName": "1000GenomesIndividualsWithAmericanAncestry",
  "visaIssuer": "https://federatedgenomics.org/",
  "visaDescription": "Controls access to genomic data obtained from individuals with American ancestry",
  "visaSecret": "BF9CAB5D5157C5C21EBDEE6C91D91"
}
{
  "id": "55cb5d06-bbf3-428b-a822-3565557518ba",
  "visaName": "1000GenomesIndividualsWithSouthAsianAncestry",
  "visaIssuer": "https://federatedgenomics.org/",
  "visaDescription": "Controls access to genomic data obtained from individuals with South Asian ancestry",
  "visaSecret": "9474C832599DC95F949DB3CAE443E"
}

8. Register a new user account with the passport broker

Visit the welcome page


Potential Error: "127.0.0.1 redirected you too many times..."

The front-end service requires cookies. Please make sure cookies are enabled in your browser of choice.

If cookies are enabled and you are still getting this error...

  1. Spin down the docker compose and clear all docker services:
docker-compose down
docker container prune
  1. Clear your cookies and cache in your browser.
  2. Then start the docker service again.

Towards the bottom, under Account Management press Sign Up to create an account.

After signing up, you should see your account information on the welcome page, under User Information. Note down the user-id passport-broker-user-id

Once the sign-up is complete, a user in the passport broker service will also be created. Confirm the new user is created:

GET http://localhost:4501/admin/ga4gh/passport/v1/users

You should see your account's ID in the array of user IDs.

9. Grant visas to the newly created user

PUT http://localhost:4501/admin/ga4gh/passport/v1/users/<USER_ID>

HEADER:
Content-Type: application/json

REQUEST BODY (raw, JSON):
{
    "id": "<USER_ID>",
    "passportVisaAssertions": [
        {
            "status": "active",
            "passportVisa": {
                "id": "6ecaef9e-d6bb-4d96-9aed-ca517ceed8a1",
                "visaName": "1000GenomesIndividualsWithEastAsianAncestry",
                "visaIssuer": "https://federatedgenomics.org/",
                "visaDescription": "Controls access to genomic data obtained from individuals with East Asian ancestry"
            }
        },
        {
            "status": "active",
            "passportVisa": {
                "id": "3af0e101-cd51-4fe4-aa8c-29a69be48fe0",
                "visaName": "1000GenomesIndividualsWithEuropeanAncestry",
                "visaIssuer": "https://federatedgenomics.org/",
                "visaDescription": "Controls access to genomic data obtained from individuals with European ancestry",
                "visaSecret": "47B42DF32976DFDBD6EC4D9ED2593"
            }
        },
        {
            "status": "active",
            "passportVisa": {
                "id": "e38f656e-3146-4b06-92f2-6edea44f0cd1",
                "visaName": "1000GenomesIndividualsWithAfricanAncestry",
                "visaIssuer": "https://federatedgenomics.org/",
                "visaDescription": "Controls access to genomic data obtained from individuals with African ancestry",
                "visaSecret": "582A164E2C5DA377F3E3F76158CE6"
            }
        },
        {
            "status": "active",
            "passportVisa": {
                "id": "b62249d0-d71d-42d2-9a67-55003fdae8ec",
                "visaName": "1000GenomesIndividualsWithAmericanAncestry",
                "visaIssuer": "https://federatedgenomics.org/",
                "visaDescription": "Controls access to genomic data obtained from individuals with American ancestry",
                "visaSecret": "BF9CAB5D5157C5C21EBDEE6C91D91"
            }
        },
        {
            "status": "active",
            "passportVisa": {
                "id": "55cb5d06-bbf3-428b-a822-3565557518ba",
                "visaName": "1000GenomesIndividualsWithSouthAsianAncestry",
                "visaIssuer": "https://federatedgenomics.org/",
                "visaDescription": "Controls access to genomic data obtained from individuals with South Asian ancestry",
                "visaSecret": "9474C832599DC95F949DB3CAE443E"
            }
        }
    ]
}

10. Log back into the passport broker, select visas, and obtain the passport token

Back in the welcome page press Get Passport Token. On this page, you should see your assigned visas, check all of them and press Get Passport Token. image

You can confirm the validity of your JWT token by visiting https://jwt.io/ and pasting the passport JWT token to examine its contents.

11. Take this passport broker to DRS server to obtain access to DRS objects

i. Request DRS object

POST http://localhost:5000/ga4gh/drs/v1/objects/HG00740.1000genomes.lowcov.downsampled.cram

REQUEST BODY (raw, JSON):
{ "passports": ["<passport token>"] }

ii. Bulk request DRS objects

POST http://localhost:5000/ga4gh/drs/v1/objects

REQUEST BODY (raw, JSON):
{
    "selection":
    [
        "HG00740.1000genomes.lowcov.downsampled.cram",
        "HG03711.1000genomes.lowcov.downsampled.cram"
    ],
    "passports":
    [
        "<passport token>"
    ]
}

12. Request DRS Object without the appropriate visa

Let's see what happens when the user uses a passport without the required visa to access a DRS Object. Create a passport token without the required visa "SouthAsianAncestry" for the DRS Object "HG03711.1000genomes.lowcov.downsampled.cram". Use this token to request the DRS object. You will get an error response from the DRS server

POST http://localhost:5000/ga4gh/drs/v1/objects/HG03711.1000genomes.lowcov.downsampled.cram

REQUEST BODY (raw, JSON):
{ "passports": ["<passport token>"] }

Error response:

{
    "timestamp": "2022-06-23T19:31:22Z",
    "status_code": 403,
    "error": "Forbidden",
    "msg": "No suitable visa found in user passport(s) for requested DRS object"
}

13. Stop and Remove all docker containers, networks, volumes, and images created in step 1

docker-compose down
